Sarasota 20 ft. x 10 ft. Steel Louvered Patio Pergola
Delivery & Installation
Large 20 x 10 Backyard Discovery freestanding galvanized-steel louvered pergola with adjustable shade, integrated drainage, PowerPort™, 100 mph wind testing, and up to 3,800 lb / 12 in. snow-load performance when anchored as directed. Sold by True Yard Buildings LLC.
$2,999.00
Description
Sarasota 20 ft. x 10 ft. Steel Louvered Patio Pergola

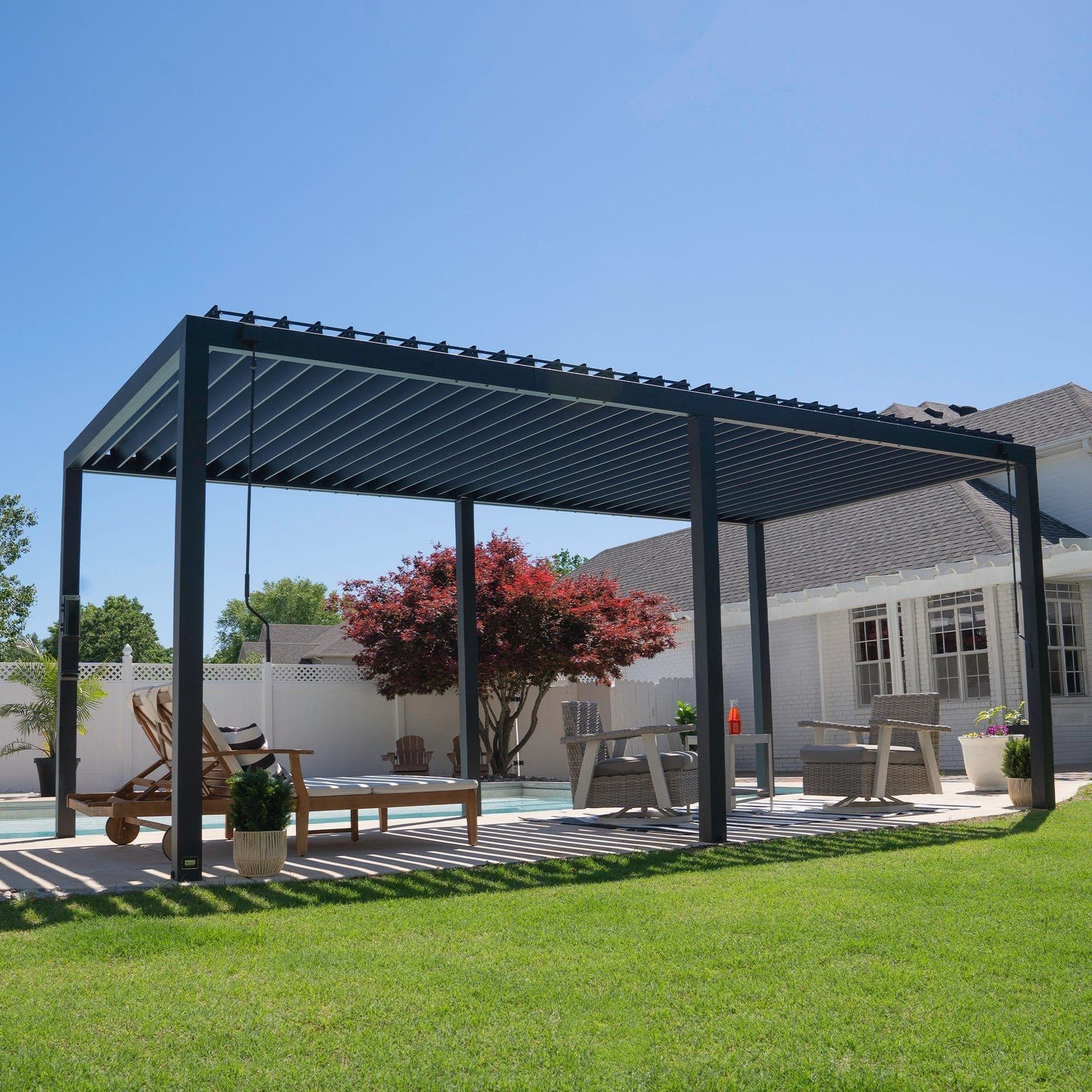

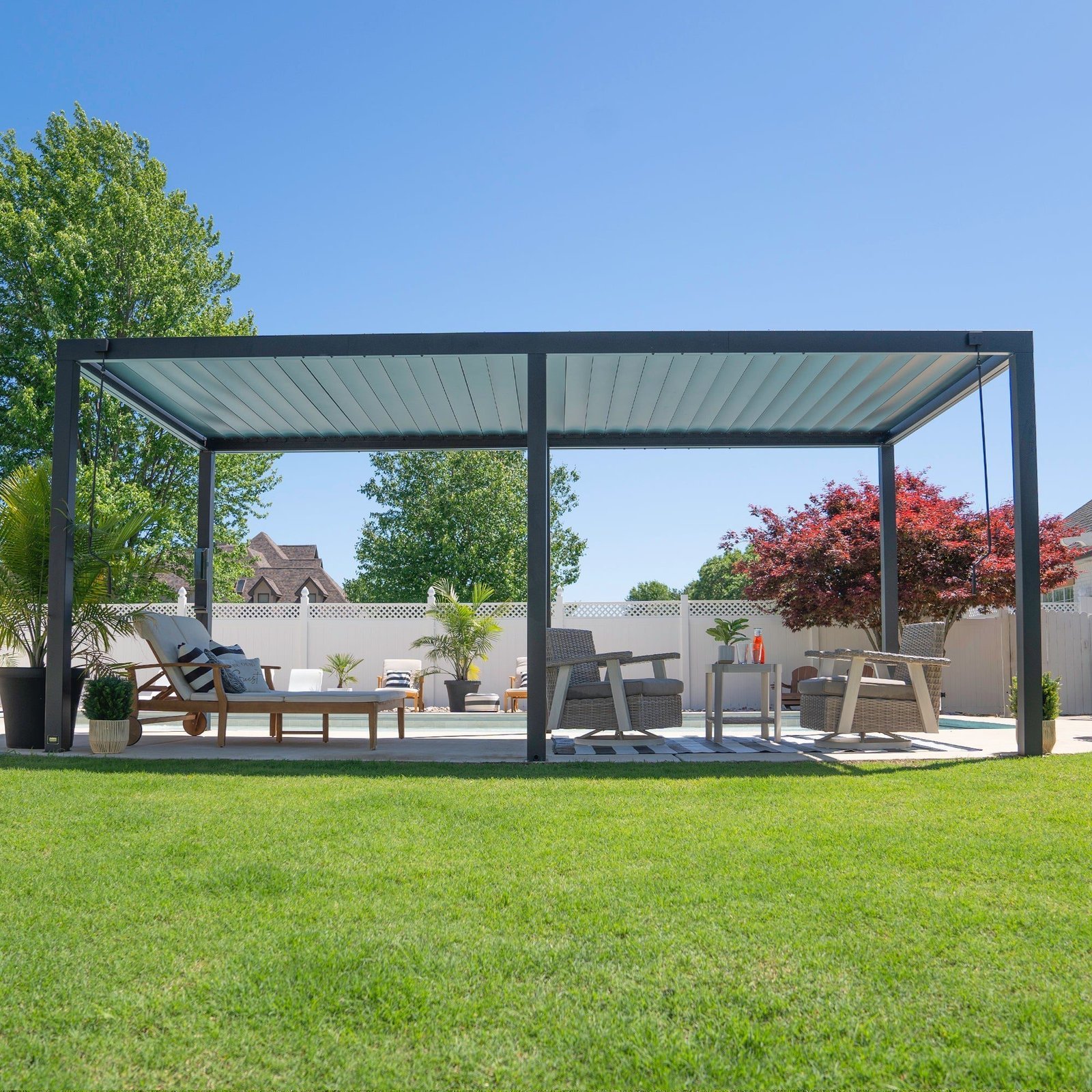

The Backyard Discovery Sarasota 20 x 10 is a large freestanding louvered pergola designed to create a broad outdoor dining, lounge, or entertaining area with adjustable shade. Its black powder-coated galvanized-steel frame and manually operated louvers provide flexible control over sunlight, ventilation, and rain protection.
Key Features
- 20 x 10 ft. nominal freestanding footprint with approximately 200 sq. ft. of coverage
- Powder-coated galvanized-steel construction with black finish

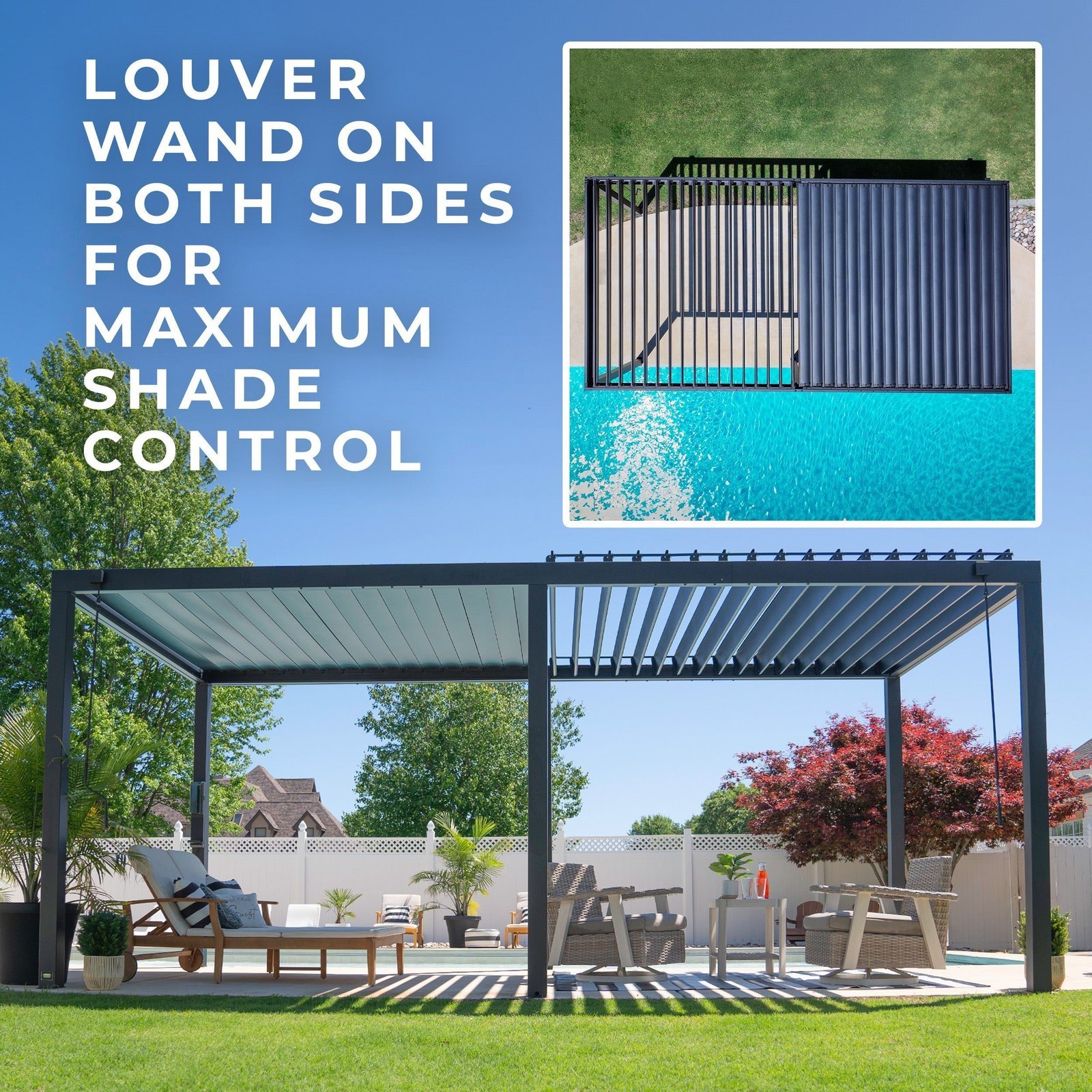

- Manual wand-operated adjustable louvered roof
- Integrated gutters, downspouts, and gutter guards
- Pro-Tect™ tested for winds up to 100 mph when anchored as directed
- Snow-load rating up to 3,800 lbs or approximately 12 in. of snow
- PowerPort™ with 3 electrical outlets and 3 USB ports
- 5-year limited manufacturer warranty
Roof, Shade & Drainage

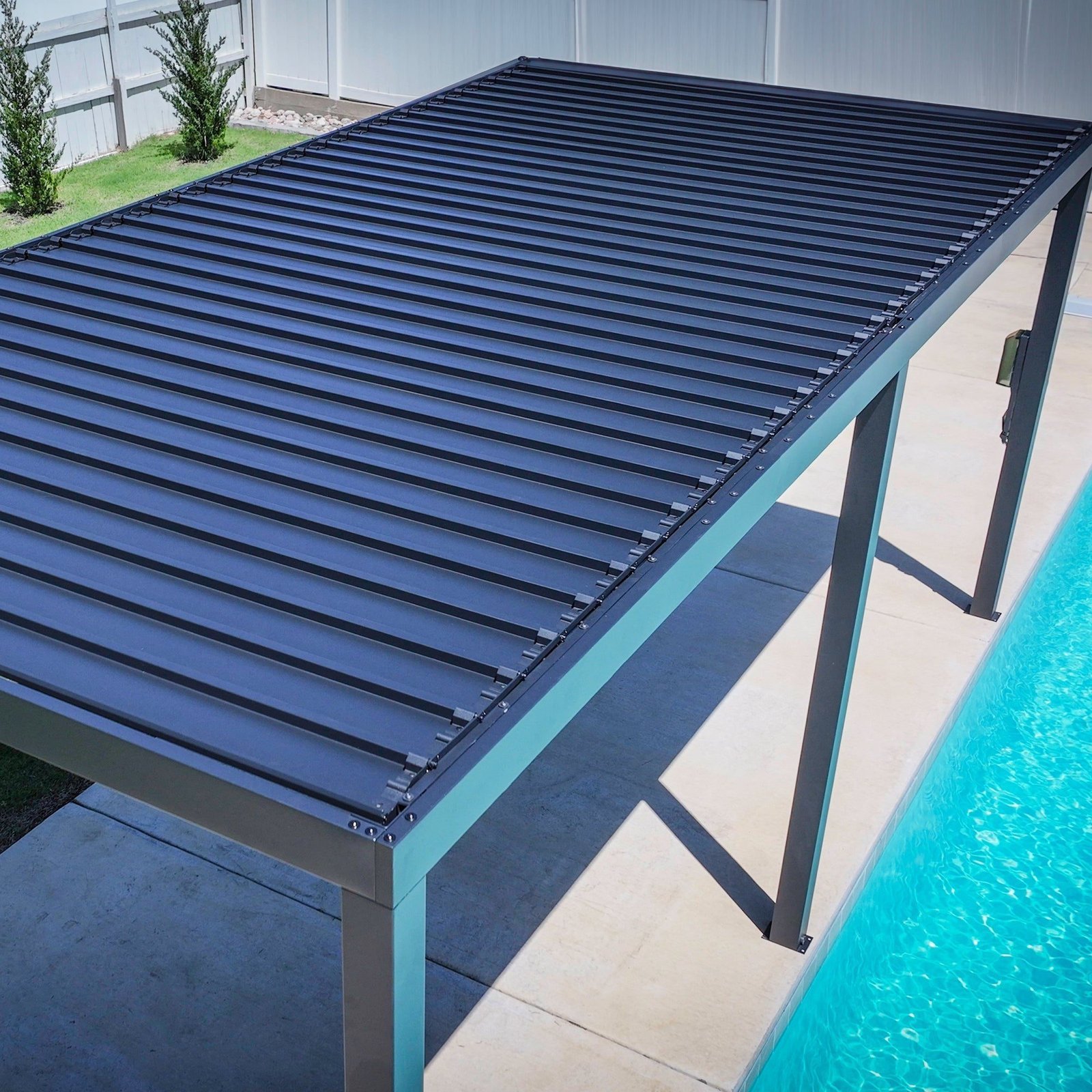

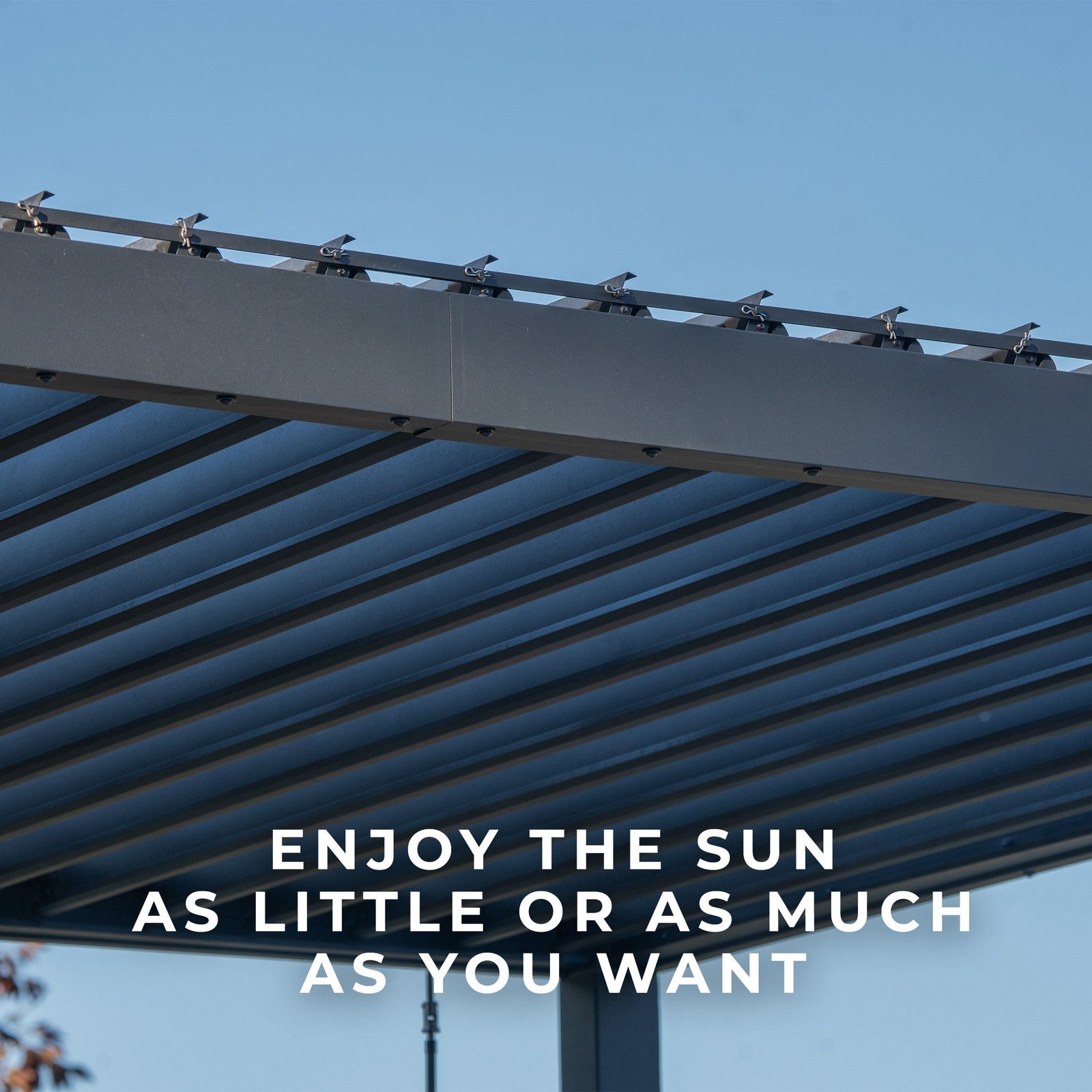

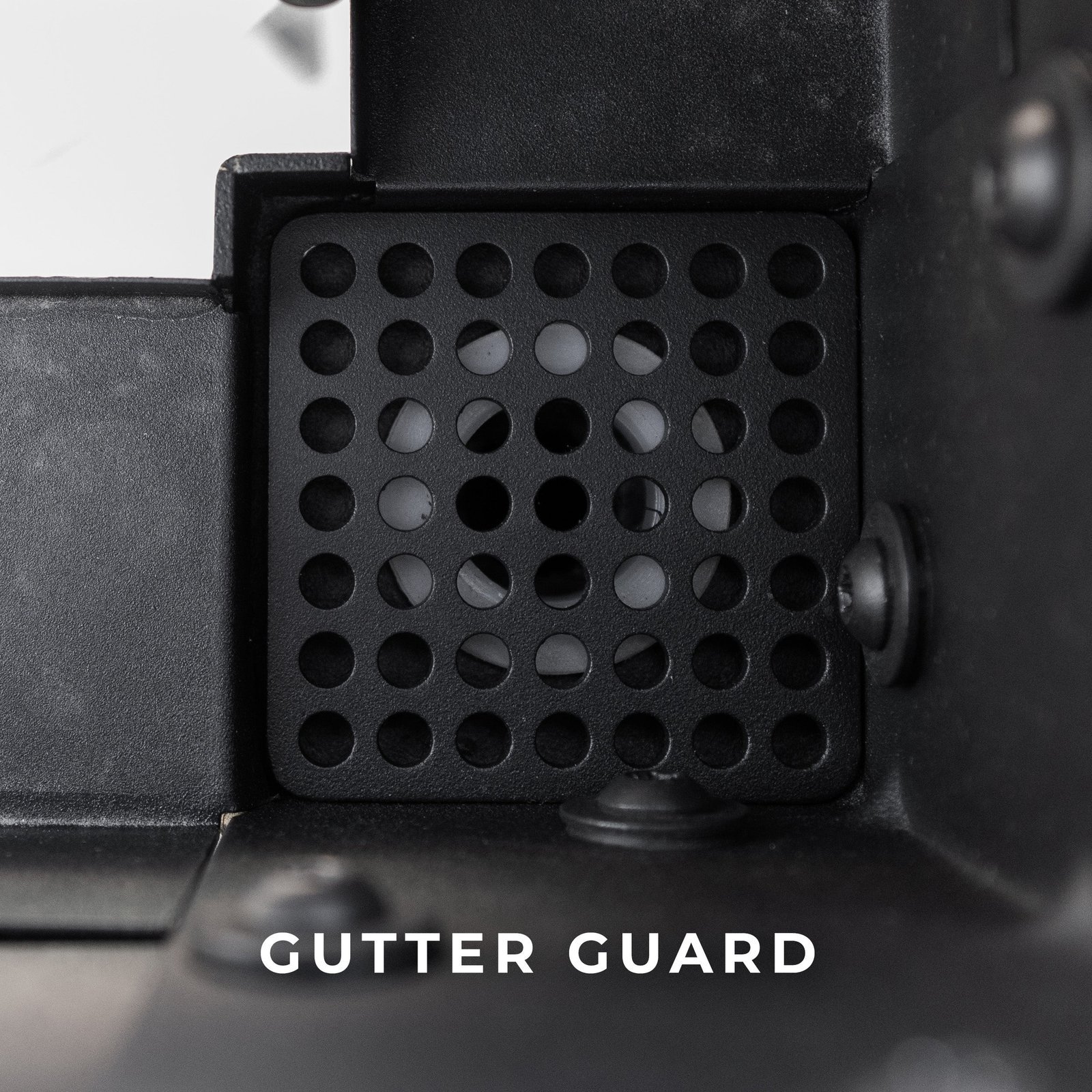

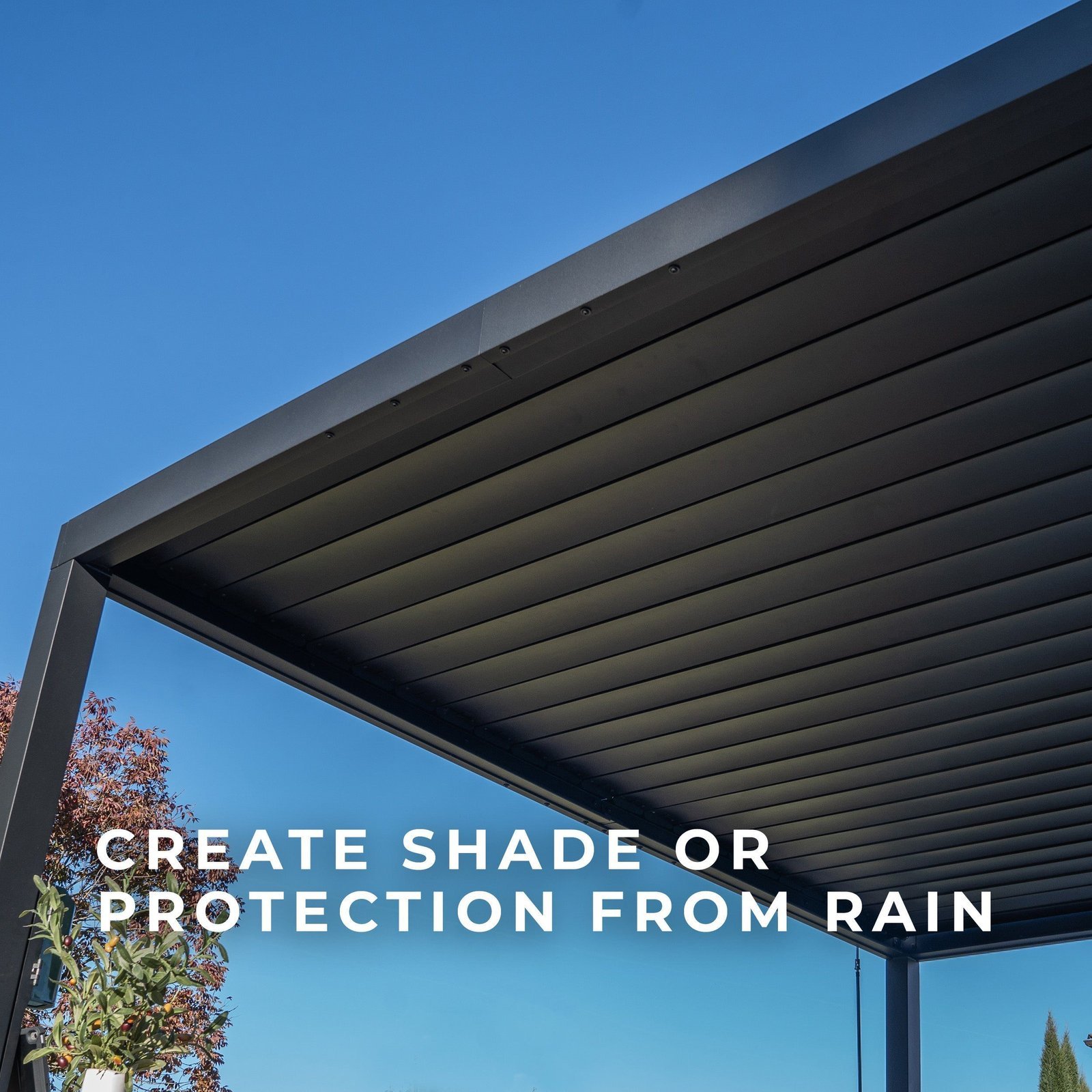

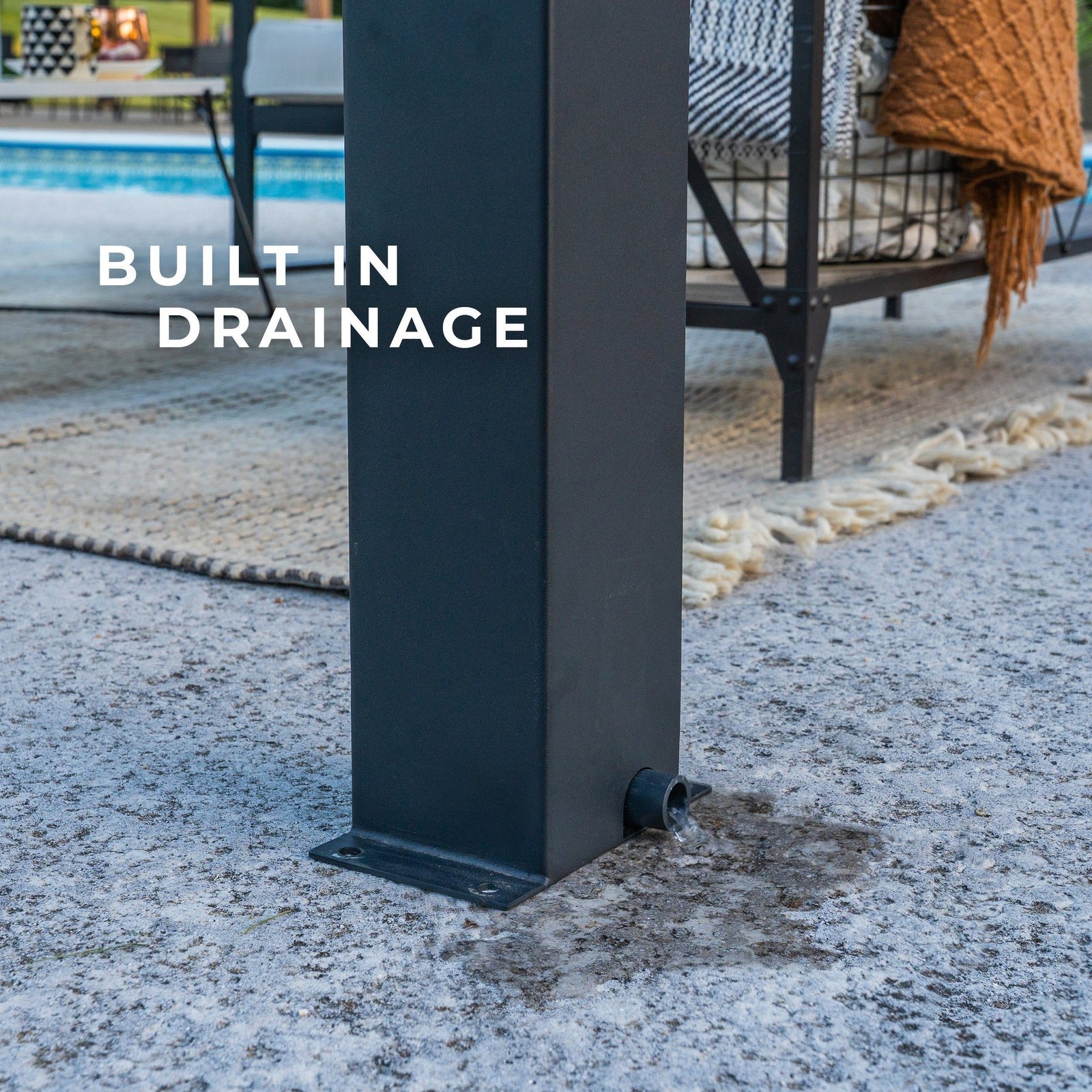

The roof louvers open for sunlight and airflow and close for stronger shade and rain protection. Integrated gutters collect water from the closed roof and route it through downspouts in the posts, while gutter guards help reduce debris entering the drainage channels.
Construction & Weather Performance
The structure is built from powder-coated galvanized steel for strength and improved corrosion resistance. Backyard Discovery’s Pro-Tect™ testing rates this model for winds up to 100 mph and a snow load up to 3,800 pounds or approximately 12 inches of snow when correctly assembled and anchored.

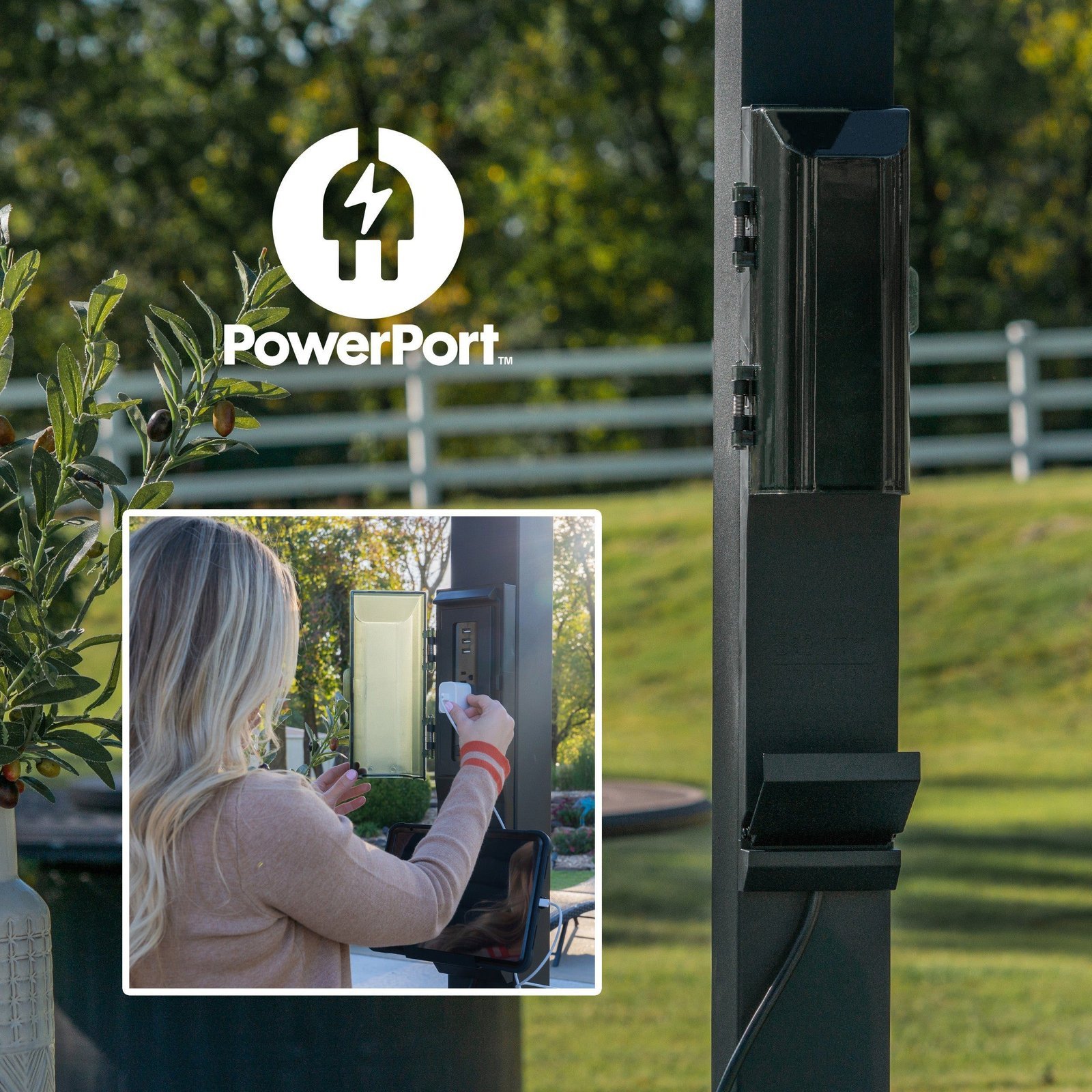

The included PowerPort™ provides three electrical outlets and three USB ports for compatible outdoor accessories. An external power source is required and is not included.
Assembly & Site Planning

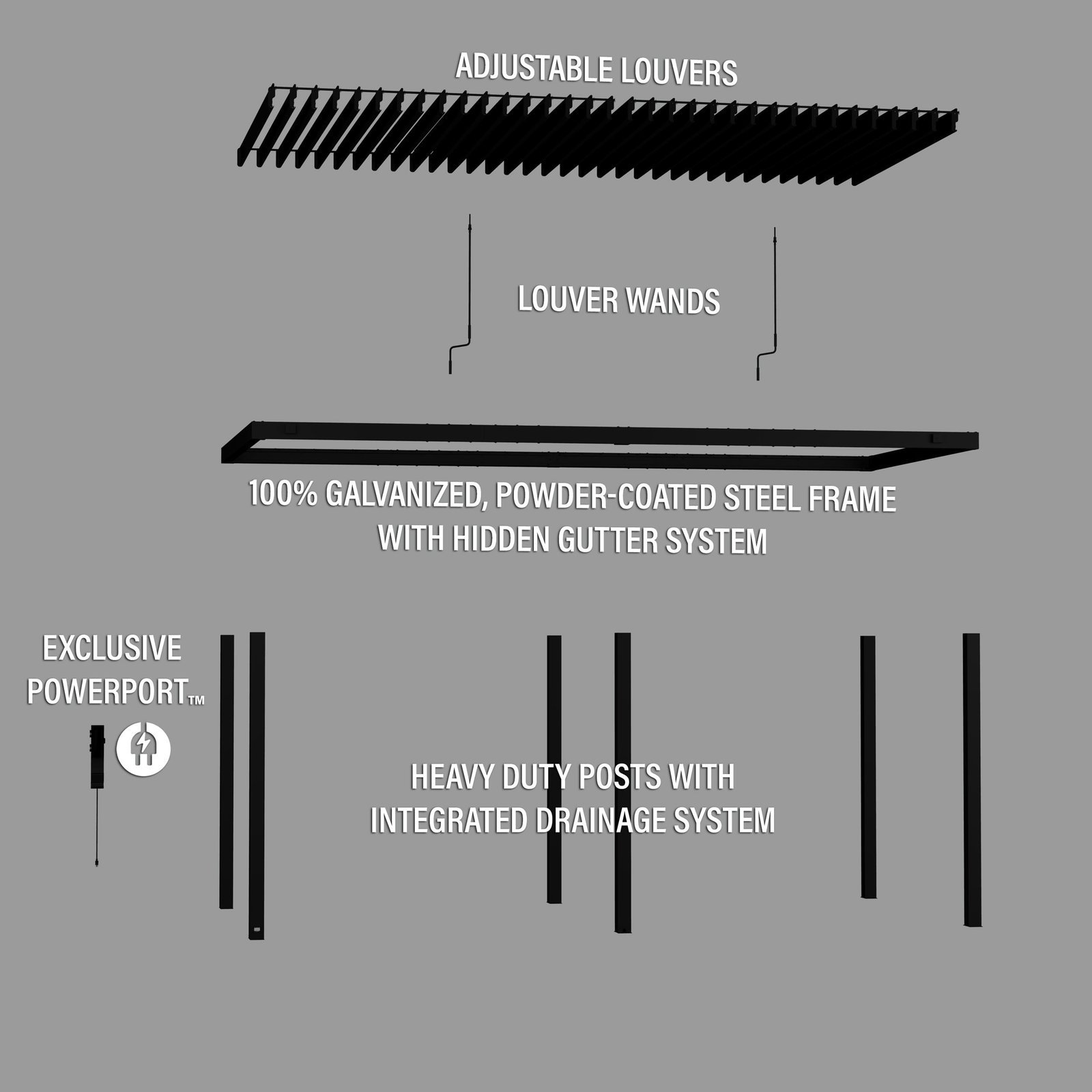

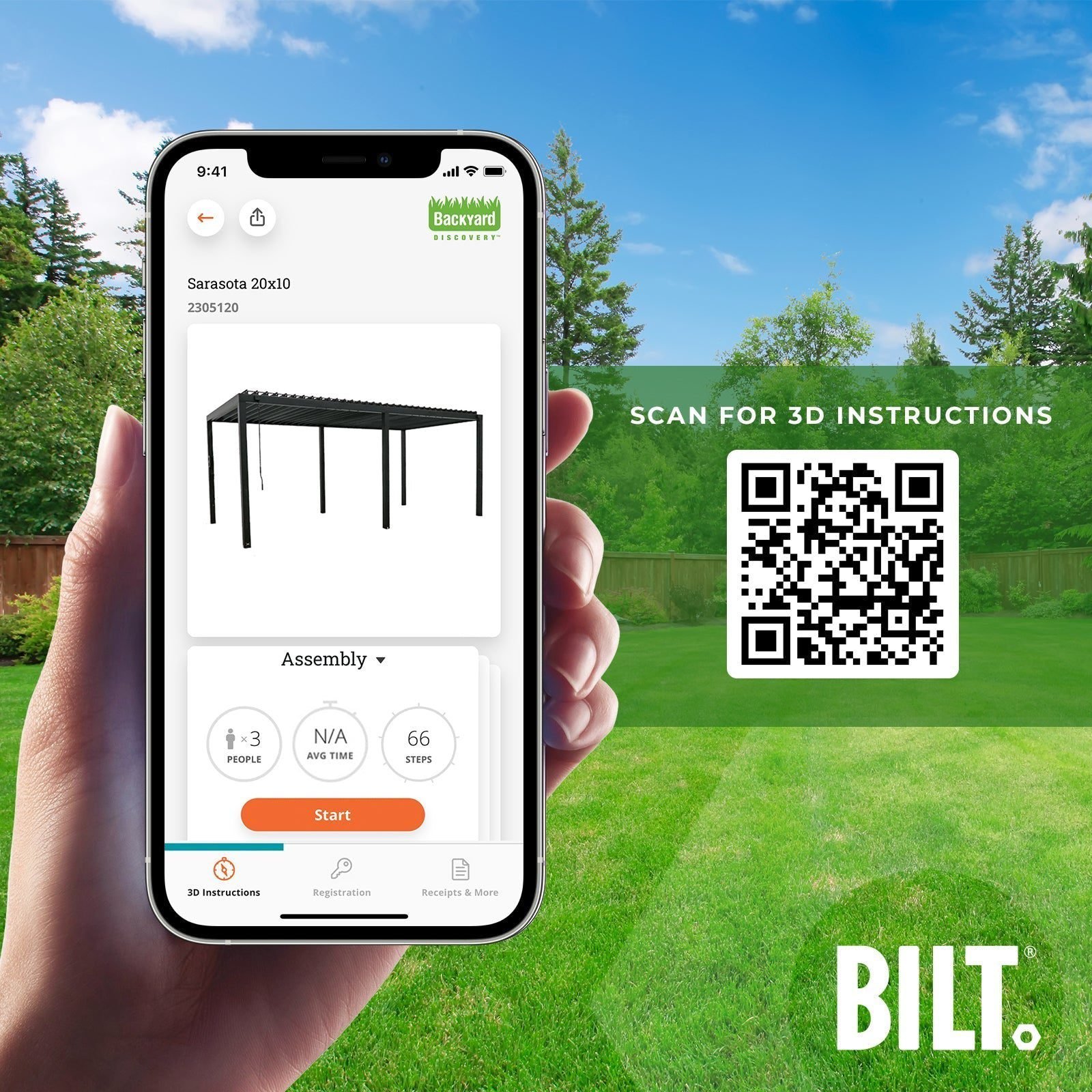

Components are pre-fabricated, pre-drilled, and powder-coated, with BILT® guided assembly support. Install the pergola on a suitable level base and anchor it according to the current Backyard Discovery instructions. Confirm drainage, clearances, local building requirements, permits, and HOA rules before assembly.
Brand & Seller Information
Brand/Manufacturer: Backyard Discovery. Manufacturer model/item: 2305120B. Sold by: True Yard Buildings LLC, an independent retailer/seller.
Published wind, snow, and drainage performance depends on correct assembly and anchoring. Review the current manufacturer manual before installation.
Quick Specifications
| Product | Sarasota 20 ft. x 10 ft. Steel Louvered Patio Pergola |
|---|---|
| Brand / Manufacturer | Backyard Discovery |
| Manufacturer model / item | 2305120B |
| True Yard Buildings SKU | TYB-PRG-SARASOTA-20-X-10 |
| Overall dimensions | See the current product diagram and manufacturer manual |
| Product category | Outdoor Pergolas |
| Delivery | Curbside freight delivery; review the current shipping and freight policies |
| Seller | True Yard Buildings LLC, an independent retailer/seller |
Overall dimensions are not the same as usable space, post spacing, foundation dimensions, or required safety clearance. Confirm every measurement in the current manual for this exact model before preparing the site.
Before Delivery & Installation
- Measure the complete footprint: Mark the overall size, post locations, roof overhang, moving roof parts, furniture area, and maintenance access.
- Confirm the foundation and anchors: Use only a level, stable foundation and anchor system permitted by the current manufacturer instructions and local requirements.
- Check delivery access: Measure gates, driveways, turns, overhead clearance, and the safe location where packaged components will be unloaded and stored.
- Review local requirements: Ask the local building department and HOA about permits, setbacks, utilities, inspections, and site-specific requirements.
Use our site preparation and delivery guide before scheduling delivery. Review the anchoring, wind, and snow load guide for weather-performance planning.
Frequently Asked Questions
Are the listed dimensions the usable space between the posts?
Not necessarily. Post spacing, roof overhang, foundation points, and usable interior area can differ from the overall dimensions. Verify the dimension diagram and manual for this exact model.
Does this structure need to be anchored?
Yes. It must be assembled and anchored according to the exact model instructions. Any published performance rating depends on correct installation and the required foundation and anchors.
Can it be installed on an existing patio or deck?
Only if that surface and its supporting structure are suitable for the loads and approved anchoring method. Concrete thickness, reinforcement, edge distance, deck framing, condition, and local code may matter.
Where can I compare planning considerations?
Start with the Outdoor Structure Planning Center, then follow the current manual for this exact product.
Documents & Assembly
Sarasota 20 × 10 Louvered Pergola · Model 2305120B
Specification
Overview
| Brand | Backyard Discovery |
|---|---|
| Model Number | 2305120B |

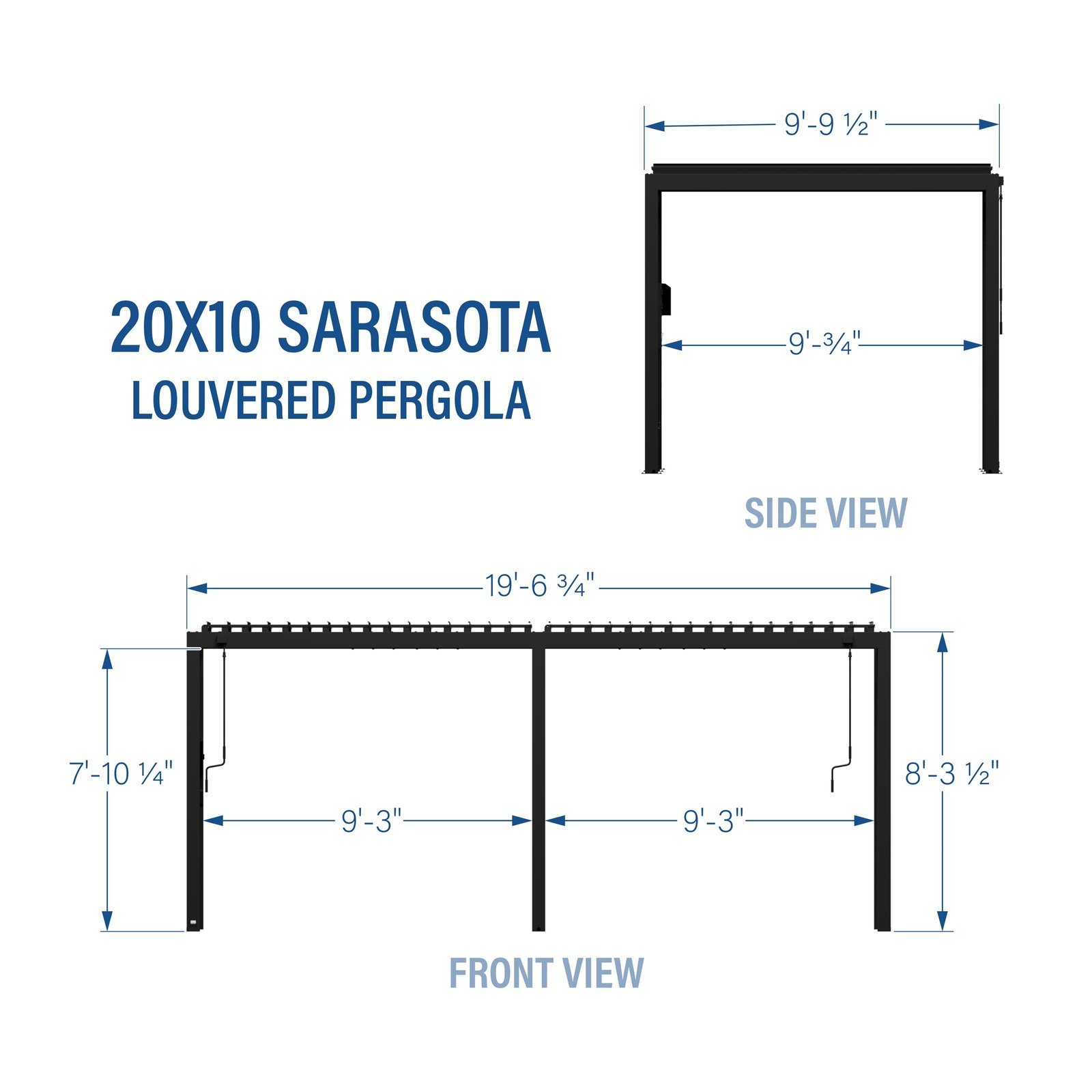

| Assembled Dimensions | 234.75 W × 117.38 D × 99.5 H in |
| Product Weight | 831.8 lbs |
| Material | Powder-Coated Galvanized Steel |
| Roof Type | Adjustable Louvered Roof |
| Wind Rating | Up to 100 mph when anchored as directed |
| Snow Load | Up to 3,800 lbs / 12 in. of snow |
| Drainage | Integrated gutters and downspouts with gutter guards |
| PowerPort | 3 electrical outlets + 3 USB ports; power source not included |
| Anchoring | Heavy-duty galvanized-steel anchoring plates |
| Manufacturer Warranty | 5-Year Limited Warranty |
| Assembly | Pre-fabricated, pre-drilled, powder-coated; BILT® guided assembly |
| Coverage Area | Approx. 200 sq. ft. |
| Installation Type | Freestanding |
| Roof Operation | Manual wand-operated louvers |
| Color / Finish | Black powder-coated finish |
