Sarasota 12 ft. x 10 ft. Steel Louvered Patio Pergola
Delivery & Installation
Freestanding 12 x 10 Backyard Discovery galvanized-steel louvered pergola with adjustable shade, integrated drainage, PowerPort™, 100 mph wind testing, and a snow-load rating up to 2,100 lb when anchored as directed. Sold by True Yard Buildings LLC.
$2,149.00
Description
Sarasota 12 ft. x 10 ft. Steel Louvered Patio Pergola

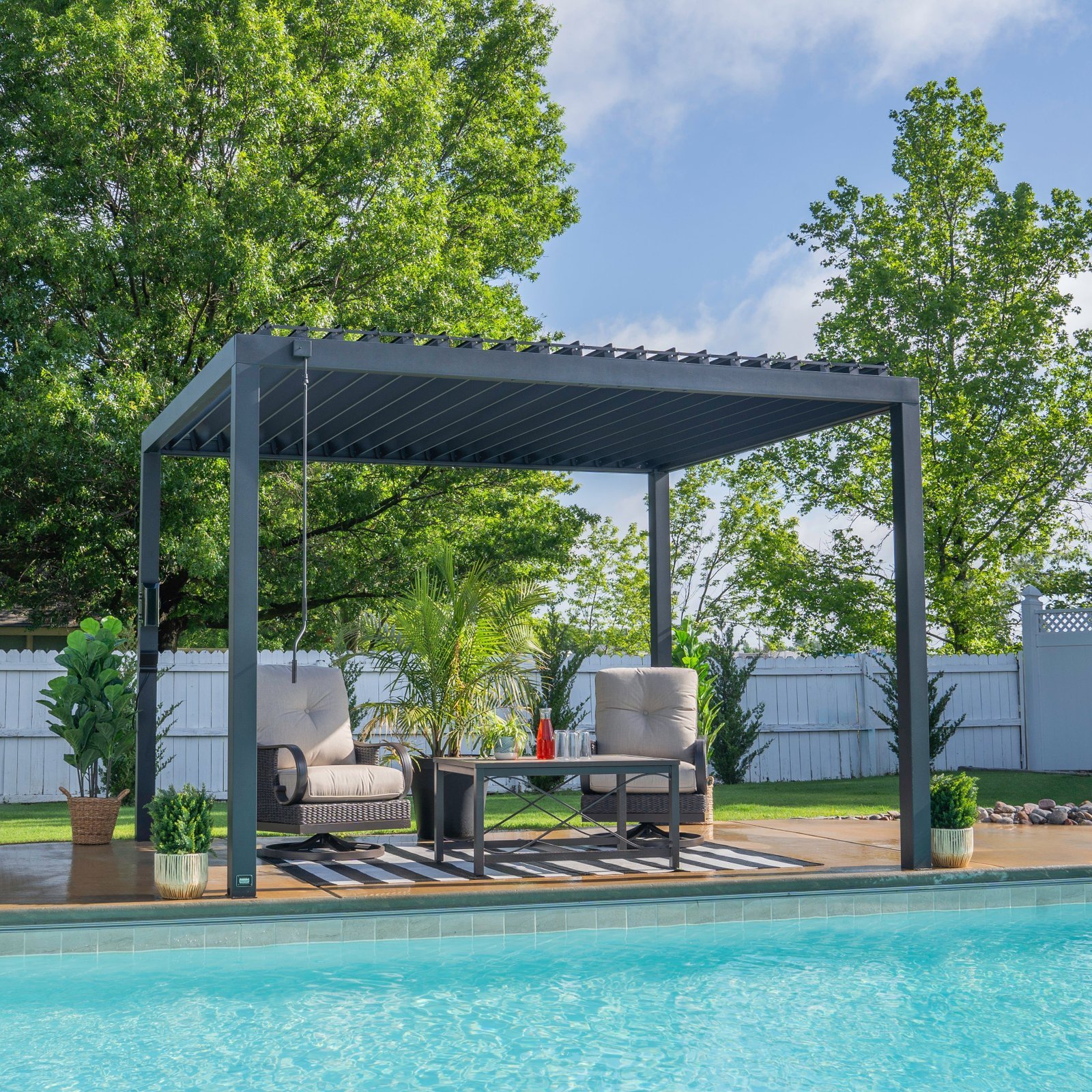

The Backyard Discovery Sarasota 12 x 10 is a freestanding steel pergola designed to create a larger, adjustable-shade patio area for dining, lounging, and everyday outdoor living. Its black powder-coated galvanized-steel frame and manually operated louvered roof let you open the space to sunlight and airflow or close the louvers for greater shade and rain protection.
Key Features
- 12 x 10 ft. nominal freestanding footprint with approximately 120 sq. ft. of coverage

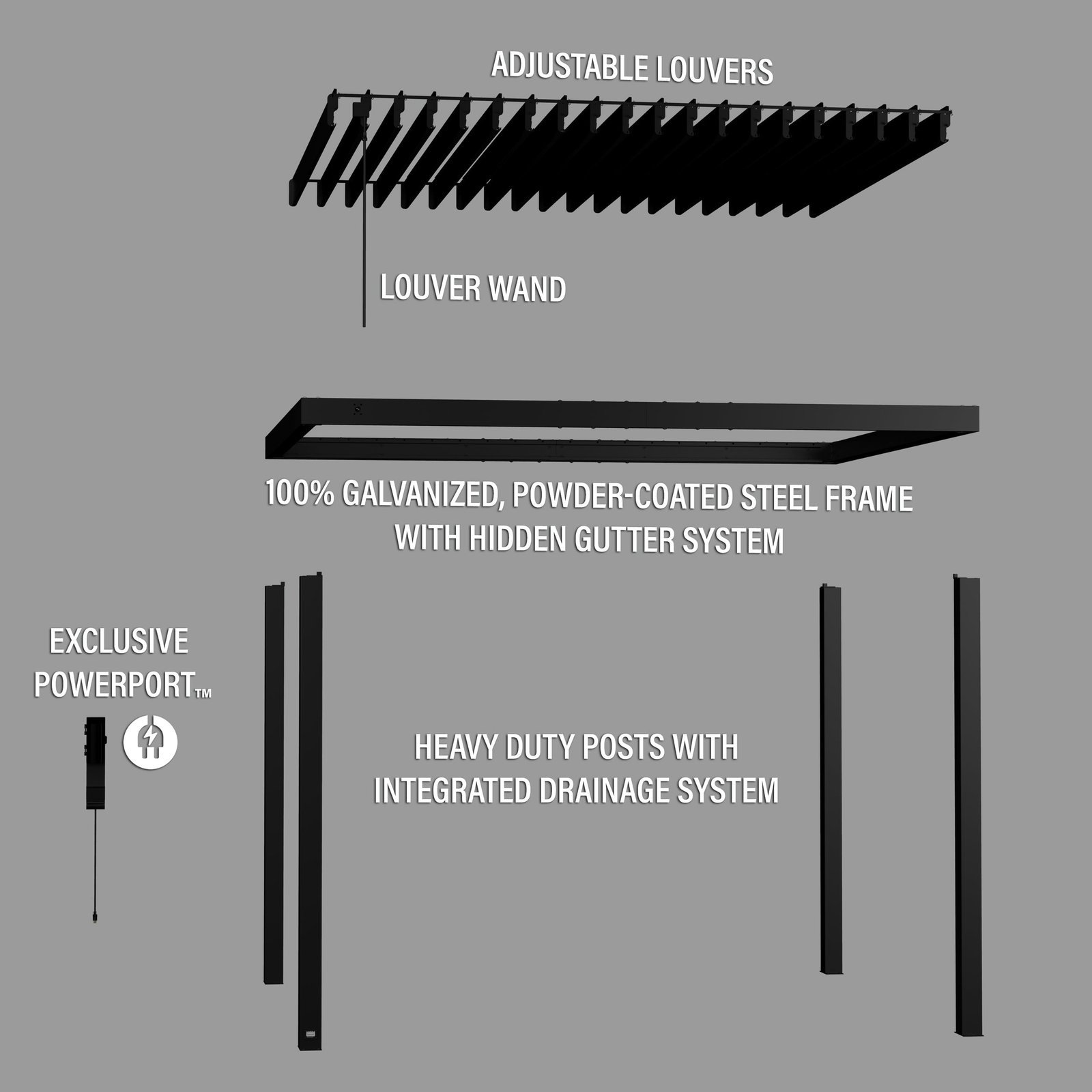

- Powder-coated galvanized-steel construction
- Adjustable louvered roof operated with the included manual wand
- Integrated gutters, downspouts, and gutter guards for rainwater management
- Pro-Tect™ tested for winds up to 100 mph when anchored as directed
- Snow-load rating up to 2,100 lbs or approximately 12 in. of snow
- PowerPort™ with 3 electrical outlets and 3 USB ports
- 5-year limited manufacturer warranty
Adjustable Shade & Drainage

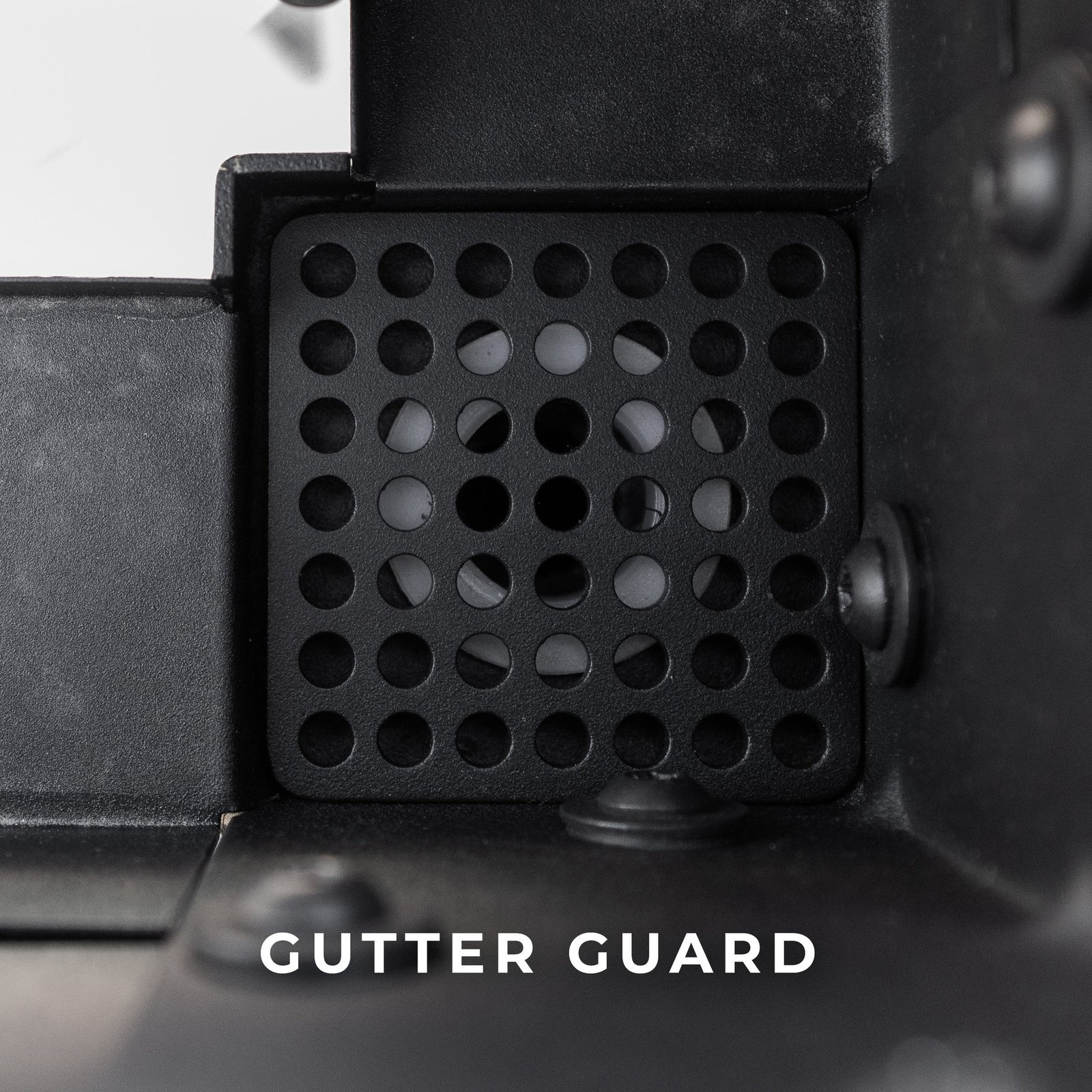

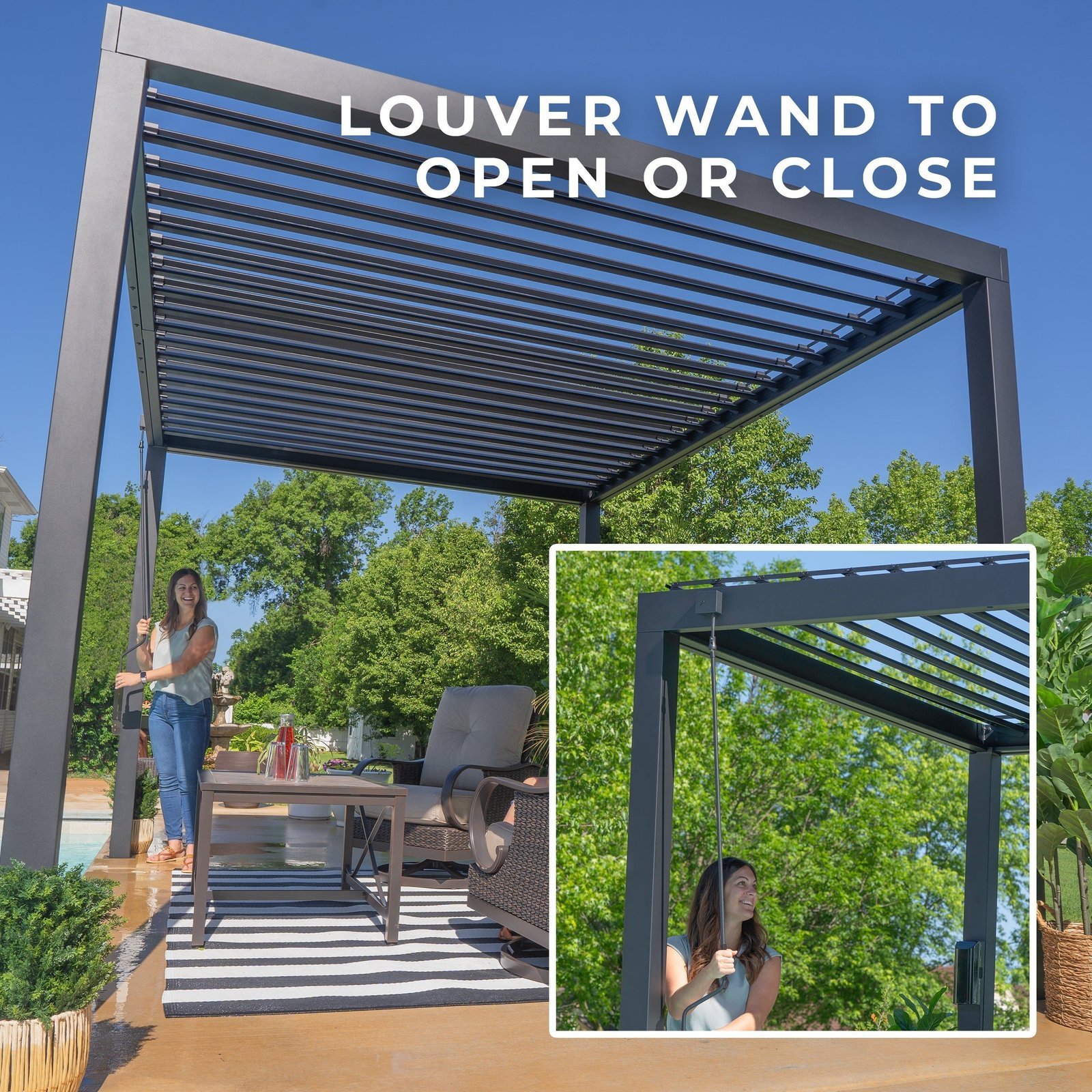

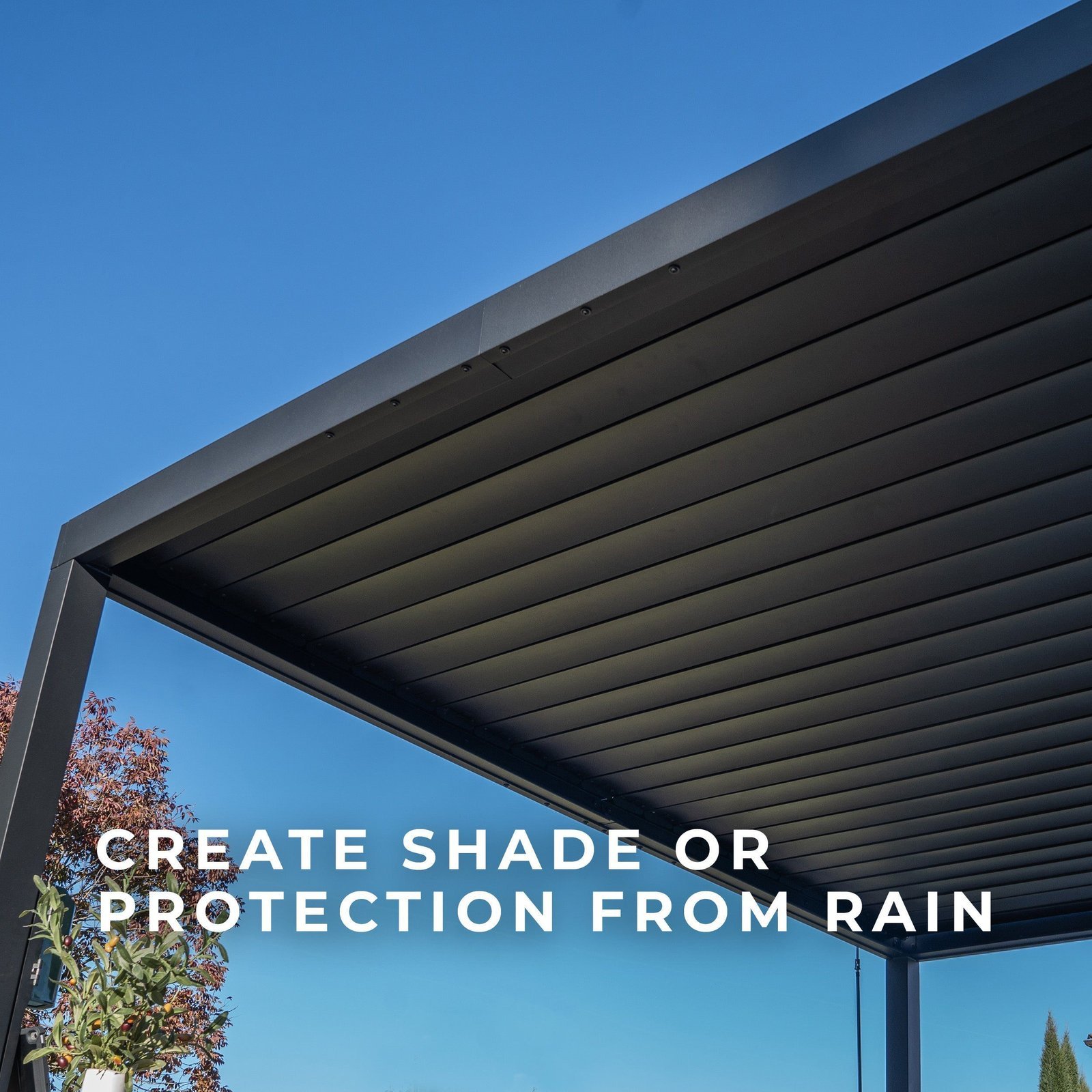

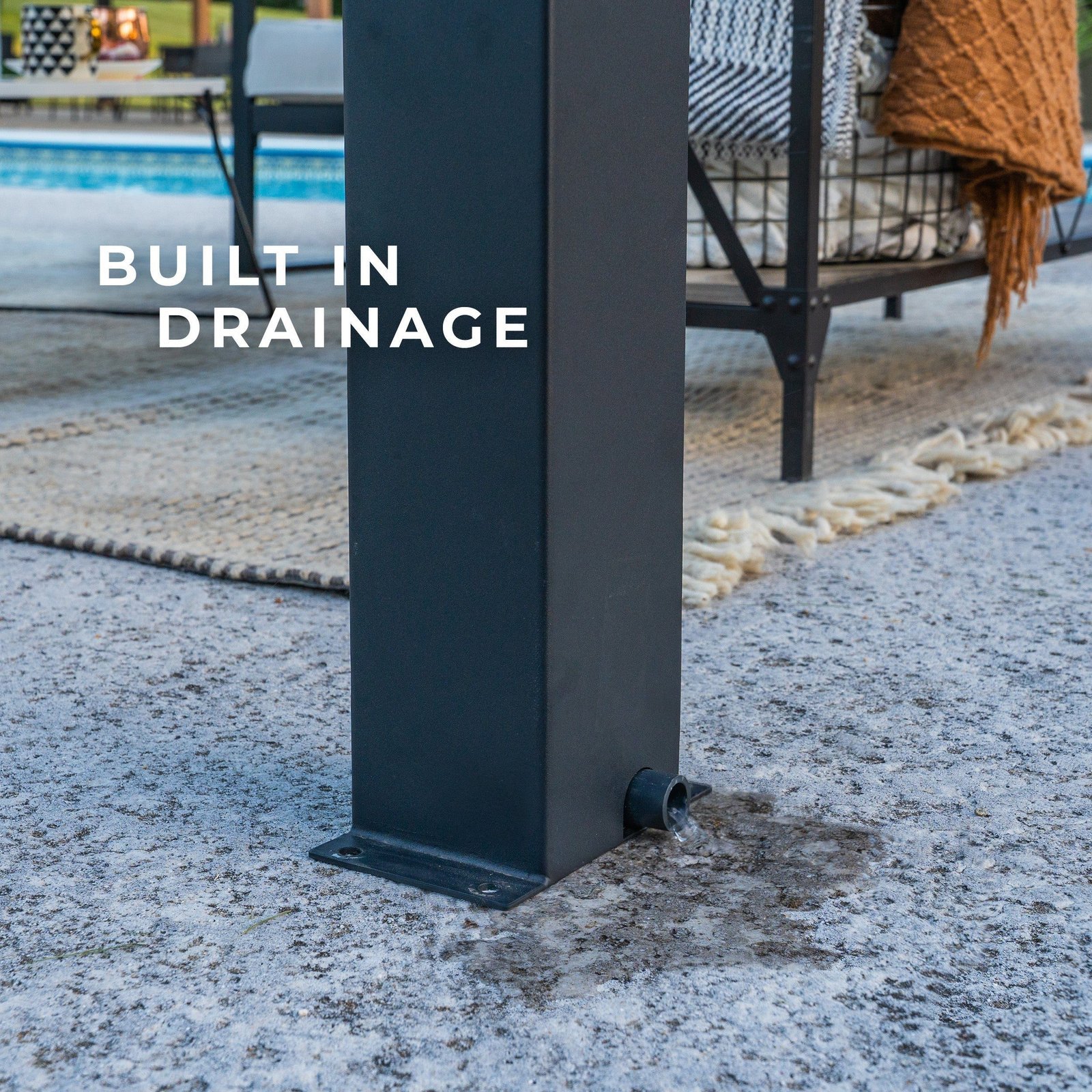

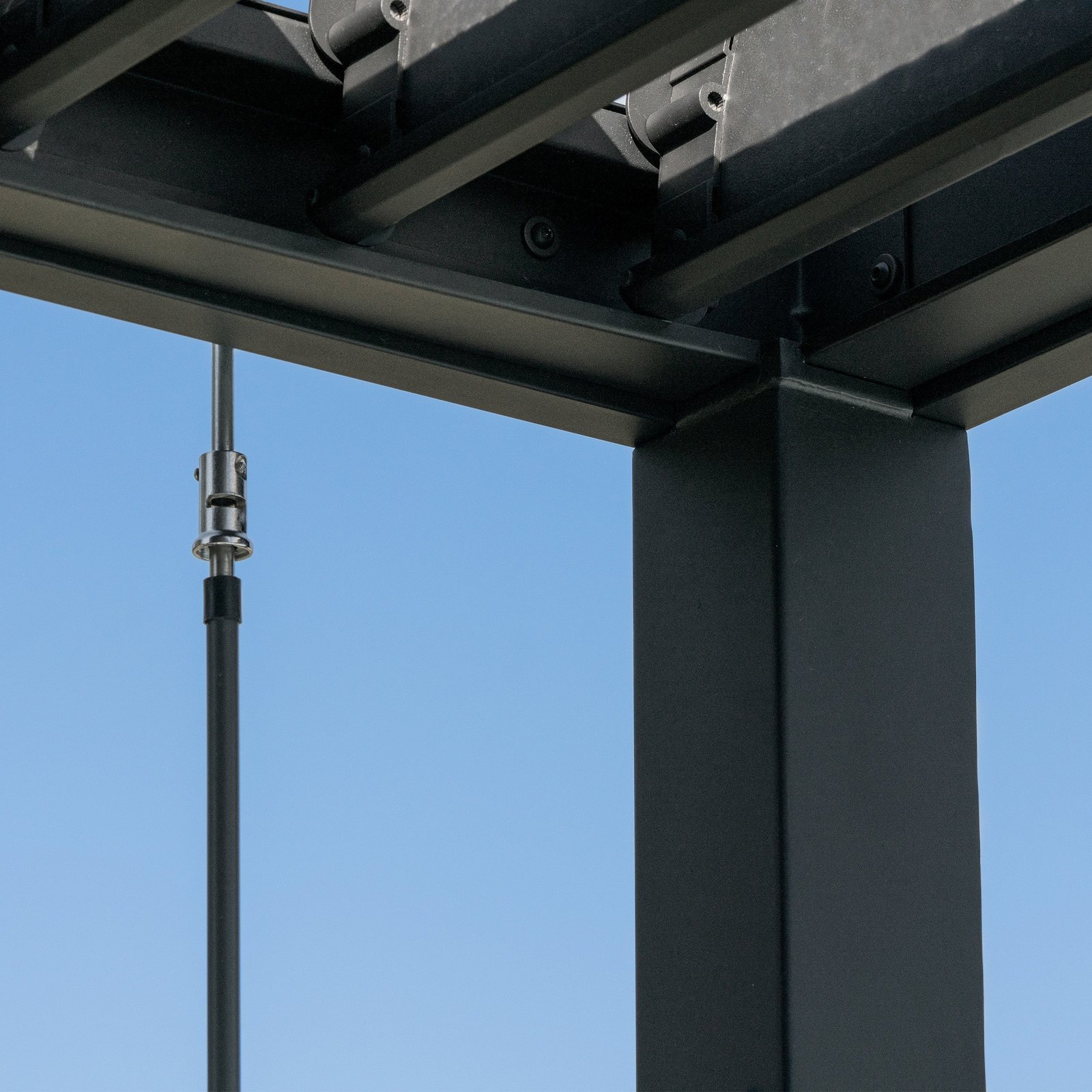

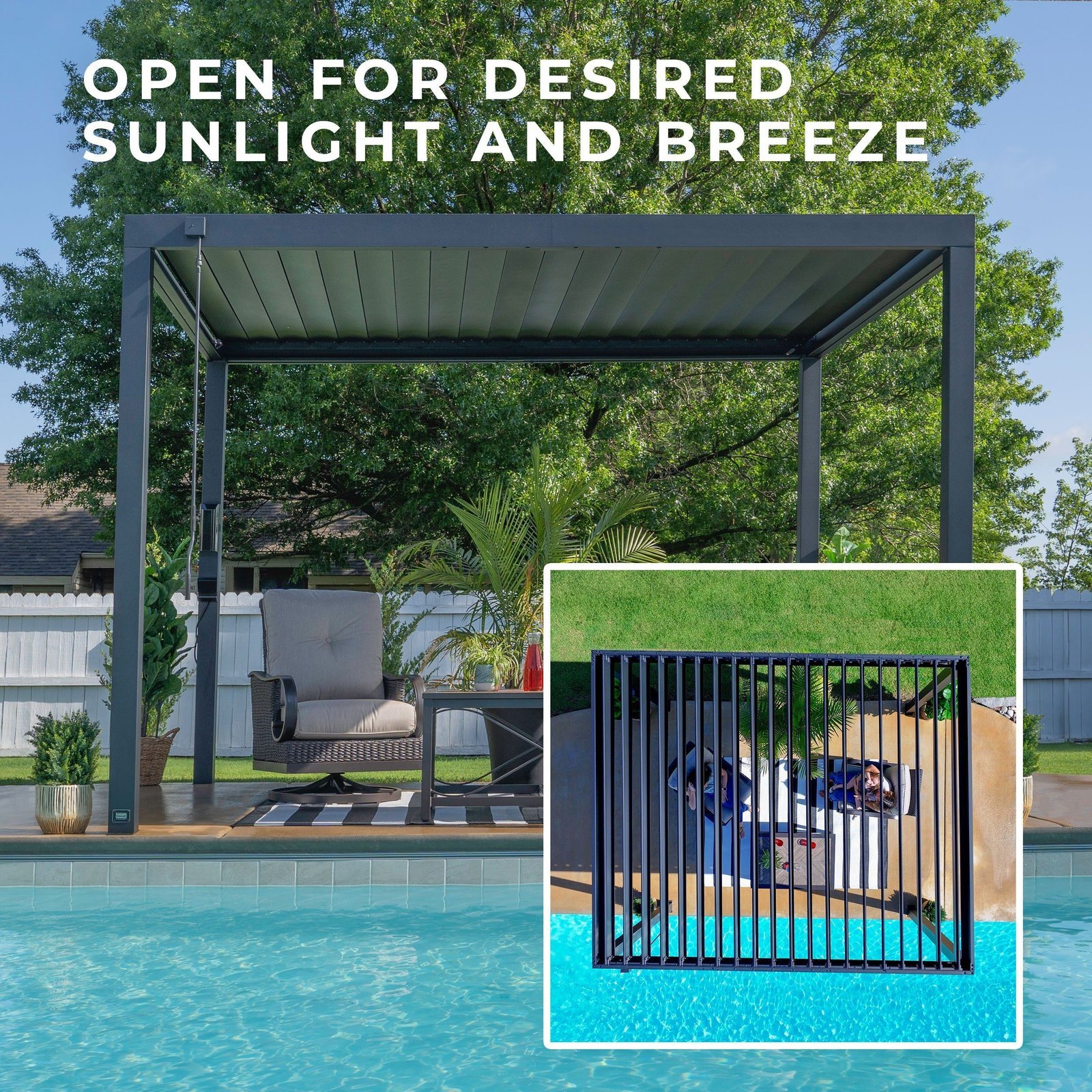

The adjustable roof gives you direct control over light and shade throughout the day. The included manual wand rotates the louvers open for sunlight and ventilation or closed for stronger shade and weather protection. When the louvers are closed, built-in gutters route rainwater toward integrated downspouts in the posts, while gutter guards help reduce debris entering the drainage channels.
Steel Construction & Weather Performance

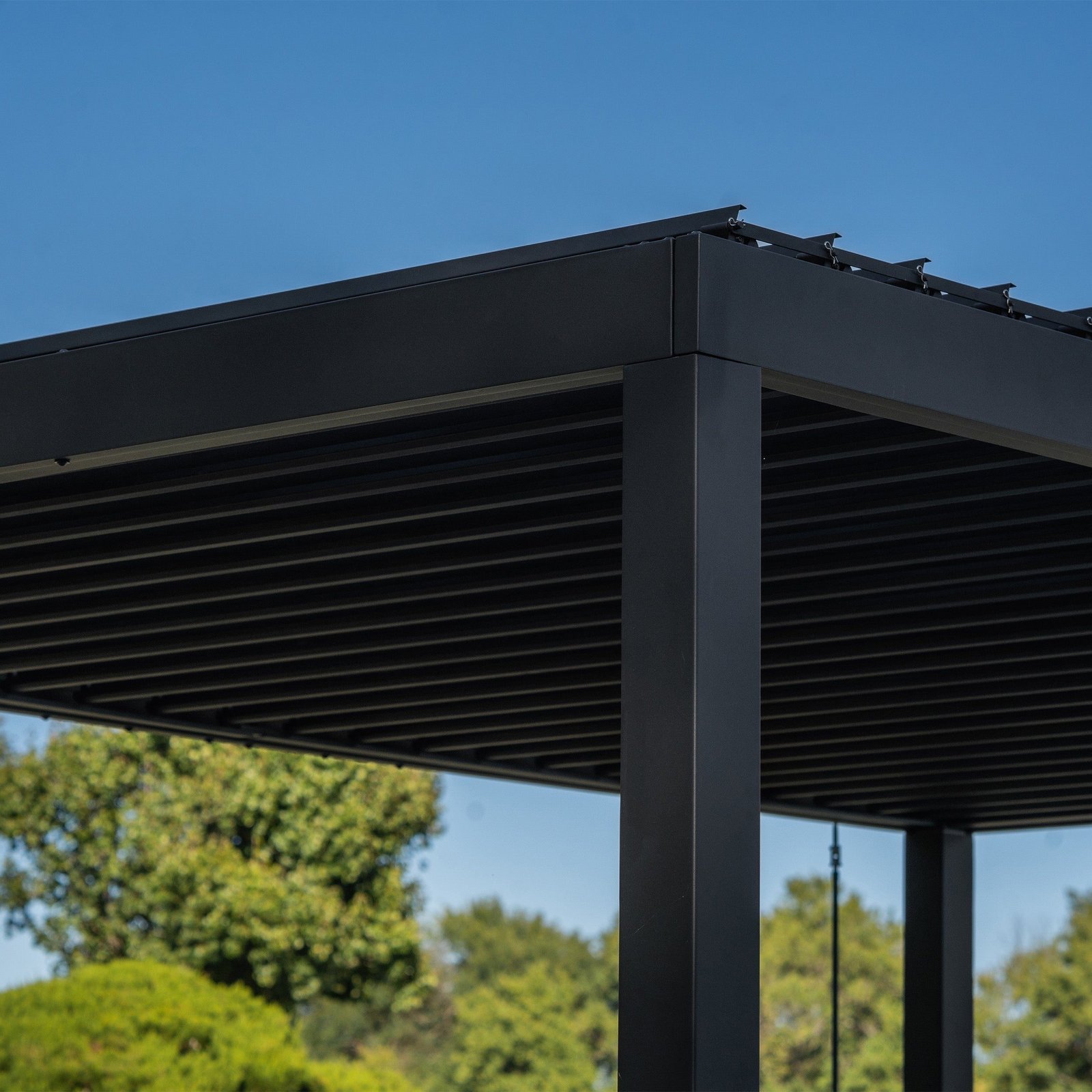

The frame is manufactured from powder-coated galvanized steel for structural strength and improved resistance to rust and corrosion. Backyard Discovery’s Pro-Tect™ testing rates this model for winds up to 100 mph and a snow load up to 2,100 pounds when the pergola is assembled and anchored according to the current manufacturer instructions.

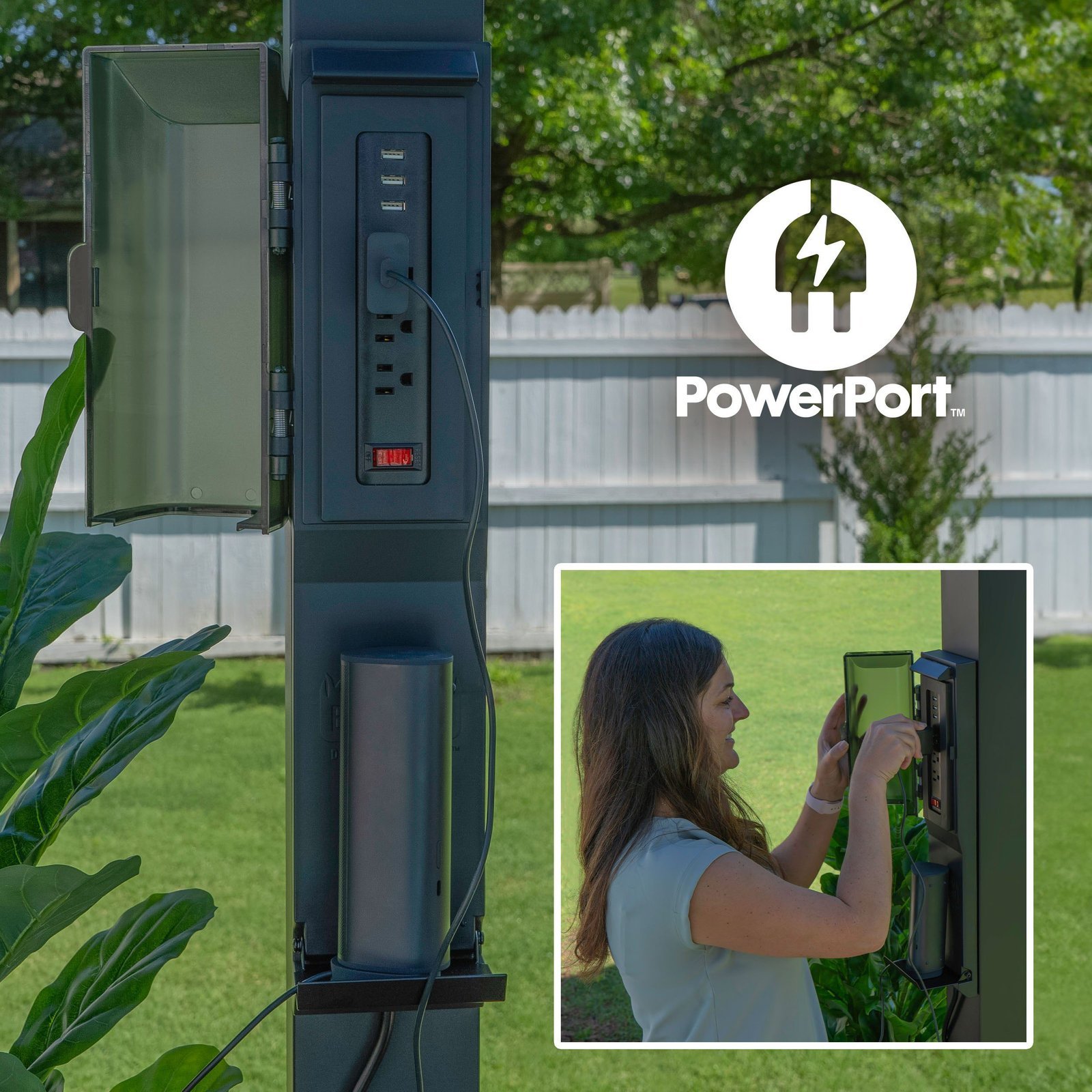

Heavy-duty galvanized-steel anchoring plates help secure the freestanding structure. The included PowerPort™ provides three standard electrical outlets and three USB ports for compatible lighting, speakers, charging, and other outdoor accessories when connected to an external power source. The external power source is not included.
Assembly & Site Planning

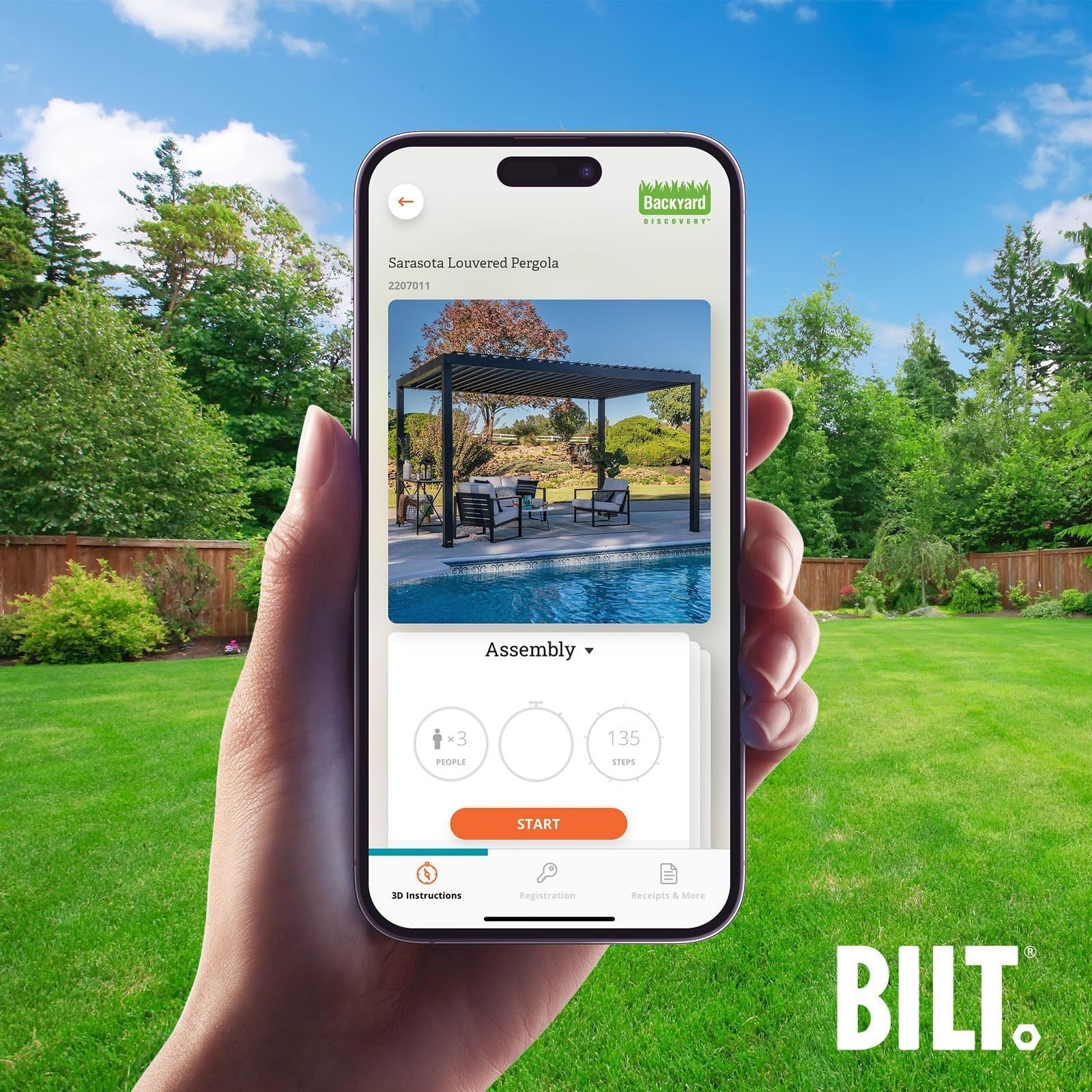

Components arrive pre-fabricated and pre-drilled, with guided assembly support available through the BILT® app. Install the structure on a suitable level surface and follow the current manufacturer manual for anchoring, drainage clearance, required setbacks, and site preparation. Local permits, building requirements, and HOA rules may also apply.
Brand & Seller Information
Brand/Manufacturer: Backyard Discovery.
Manufacturer model/item: 2407046
Sold by: True Yard Buildings LLC, an independent retailer/seller.
Published wind, snow, and drainage performance depends on correct assembly and anchoring. Review the current Backyard Discovery instruction manual and applicable local requirements before installation.
Quick Specifications
| Product | Sarasota 12 ft. x 10 ft. Steel Louvered Patio Pergola |
|---|---|
| Brand / Manufacturer | Backyard Discovery |
| Manufacturer model / item | 2407046 |
| True Yard Buildings SKU | TYB-PRG-SARASOTA-12-X-10 |
| Overall dimensions | 140.55 L × 117.32 W × 99.61 H in. |
| Listed weight | 529.78 lb. |
| Product category | Outdoor Pergolas |
| Delivery | Curbside freight delivery; review the current shipping and freight policies |
| Seller | True Yard Buildings LLC, an independent retailer/seller |
Overall dimensions are not the same as usable interior space, post-to-post dimensions, foundation dimensions, or required safety clearance. Confirm every measurement in the current manual for this exact model before preparing the site.
Before Delivery & Installation
- Measure the complete footprint: Mark the overall size, post locations, roof overhang, moving parts, furniture area, and maintenance access.
- Confirm the foundation: Use only a level, stable foundation and anchor system permitted by the current manufacturer instructions and local requirements.
- Check access: Measure gates, driveways, turns, overhead clearance, and the safe location where packaged components will be unloaded and stored.
- Review local requirements: Ask the local building department and HOA about permits, setbacks, utilities, inspections, and site-specific wind or snow requirements.
Use our site preparation and delivery guide before scheduling delivery. For weather-performance questions, read the anchoring, wind, and snow load guide.
Frequently Asked Questions
Are the listed dimensions the usable space between the posts?

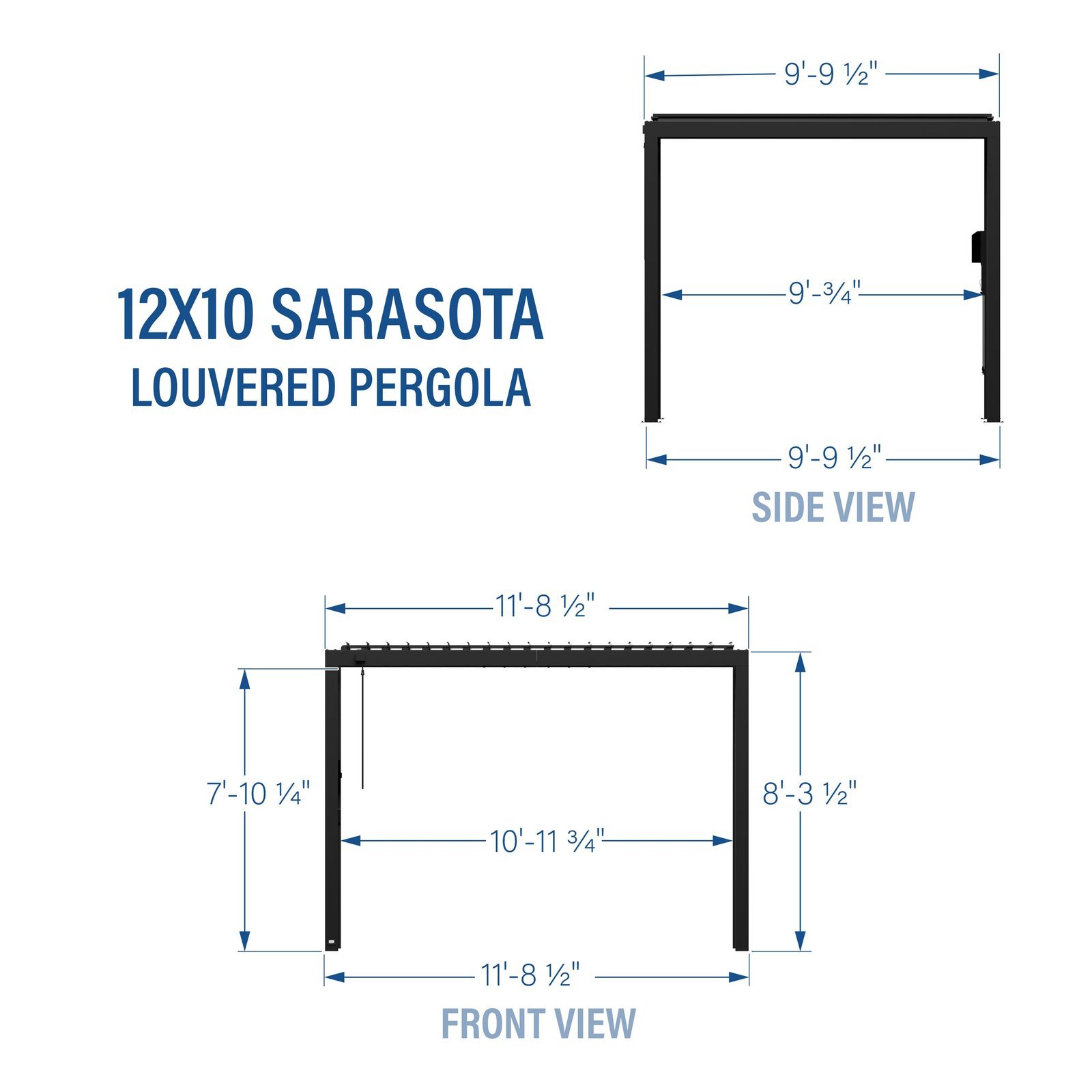

Not necessarily. The dimensions above describe the overall product size stored for this listing. Post spacing, roof overhang, foundation points, and usable interior area can be different. Verify the dimension diagram and manual for this model.
Does this pergola need to be anchored?
Yes. Outdoor structures must be assembled and anchored according to the exact model instructions. Any published performance rating depends on correct installation and the required foundation and anchors.
Can it be installed on an existing patio or deck?
Only if that surface and its supporting structure are suitable for the loads and approved anchoring method. Concrete thickness, reinforcement, edge distance, deck framing, condition, and local code may affect the answer.
Do I need a permit?
Permit, setback, engineering, and HOA requirements vary by location and installation. Check with the authority having jurisdiction before ordering or starting foundation work.
Documents & Assembly
Sarasota 12 × 10 Louvered Pergola · Model 2407046
Specification
Overview
| Weight | 529.78 lbs |
|---|---|
| Dimensions | 140.55 × 117.32 × 99.61 in |
| Brand | Backyard Discovery |
| Model Number | 2407046 |
| Assembled Dimensions | 117.32 W × 140.55 D × 99.61 H in |
| Product Weight | 529.78 lbs |
| Material | Powder-Coated Galvanized Steel |
| Roof Type | Adjustable Louvered Roof |
| Wind Rating | Up to 100 mph when installed and anchored as directed |
| Snow Load | Up to 2,100 lbs / 12 in. of snow |
| Drainage | Integrated gutters and downspouts with gutter guards |
| PowerPort | 3 electrical outlets + 3 USB ports; power source not included |
| Anchoring | Heavy-duty galvanized steel anchoring plates |
| Manufacturer Warranty | 5-Year Limited Warranty |
| Assembly | Pre-fabricated and pre-drilled; BILT® guided assembly |
| Coverage Area | Approx. 120 sq. ft. |
| Installation Type | Freestanding |
| Roof Operation | Manual wand-operated louvers |
| Color / Finish | Black powder-coated finish |
