Somerville Barnwood Stain 14 ft. x 10 ft. Outdoor Patio Pergola
Delivery & Installation
Traditional 14 x 10 Backyard Discovery cedar pergola in a barnwood stain with a multi-level trellis roof, classic archway, PowerPort™, concealed anchoring, and 100 mph wind testing when anchored as directed. Sold by True Yard Buildings LLC.
$1,349.00
Description
Somerville Barnwood Stain 14 ft. x 10 ft. Outdoor Patio Pergola

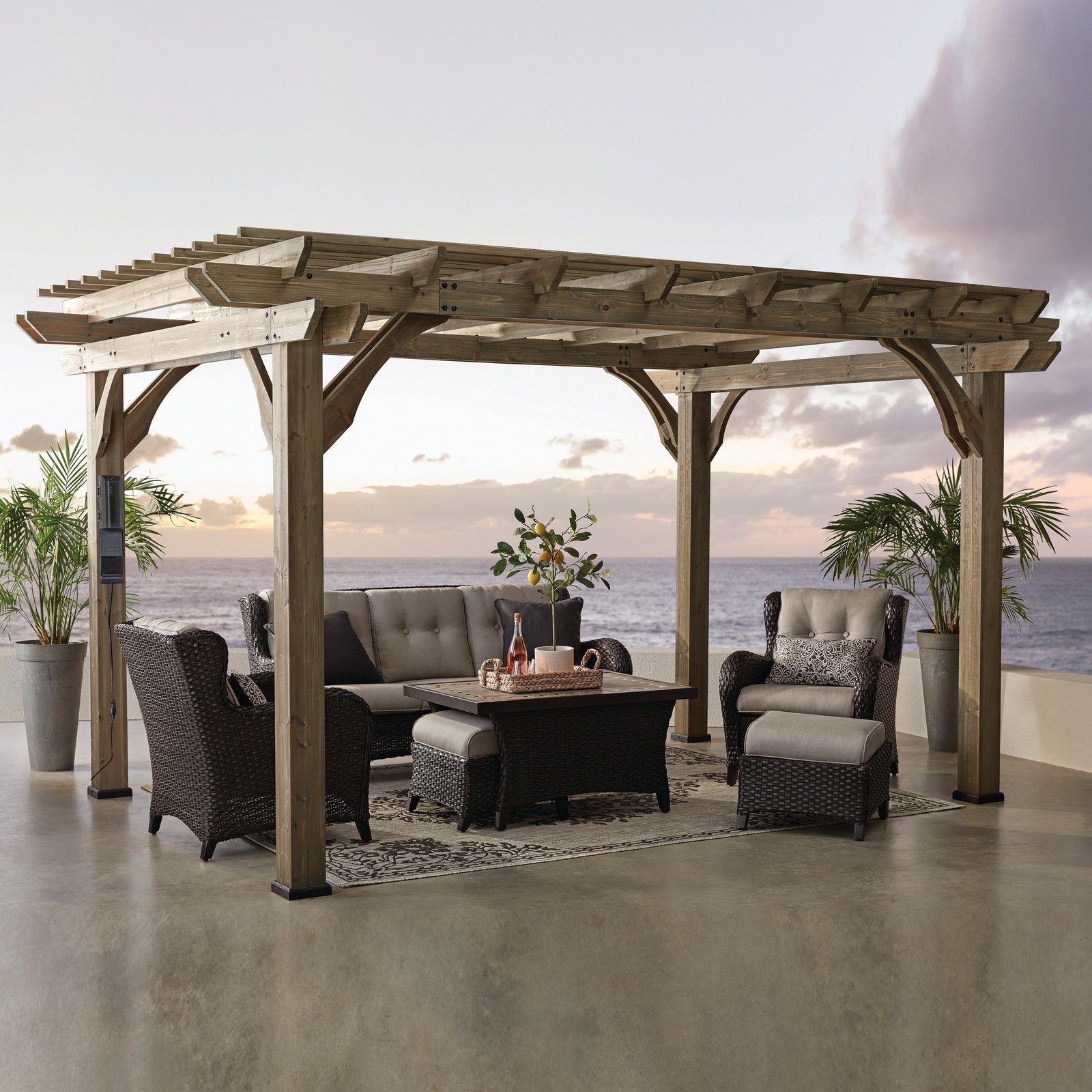

The Backyard Discovery Somerville 14 x 10 brings traditional cedar styling to a generous outdoor dining or lounge area. Its barnwood stain, classic archway, and multi-level trellis roof create an open-air structure that adds architectural definition while allowing light and airflow through the patio.
Key Features
- 14 x 10 ft. nominal freestanding footprint with approximately 140 sq. ft. of coverage
- 100% cedar wood construction with a barnwood stain
- Multi-level trellis roof and classic archway styling
- Pro-Tect™ tested for winds up to 100 mph when anchored as directed
- PowerPort™ with 3 electrical outlets and 3 USB ports
- Resin feet with concealed concrete anchoring components
- Pre-cut, pre-drilled, and pre-stained components with BILT® guided assembly
- 5-year limited manufacturer warranty
Cedar Construction & Outdoor Use

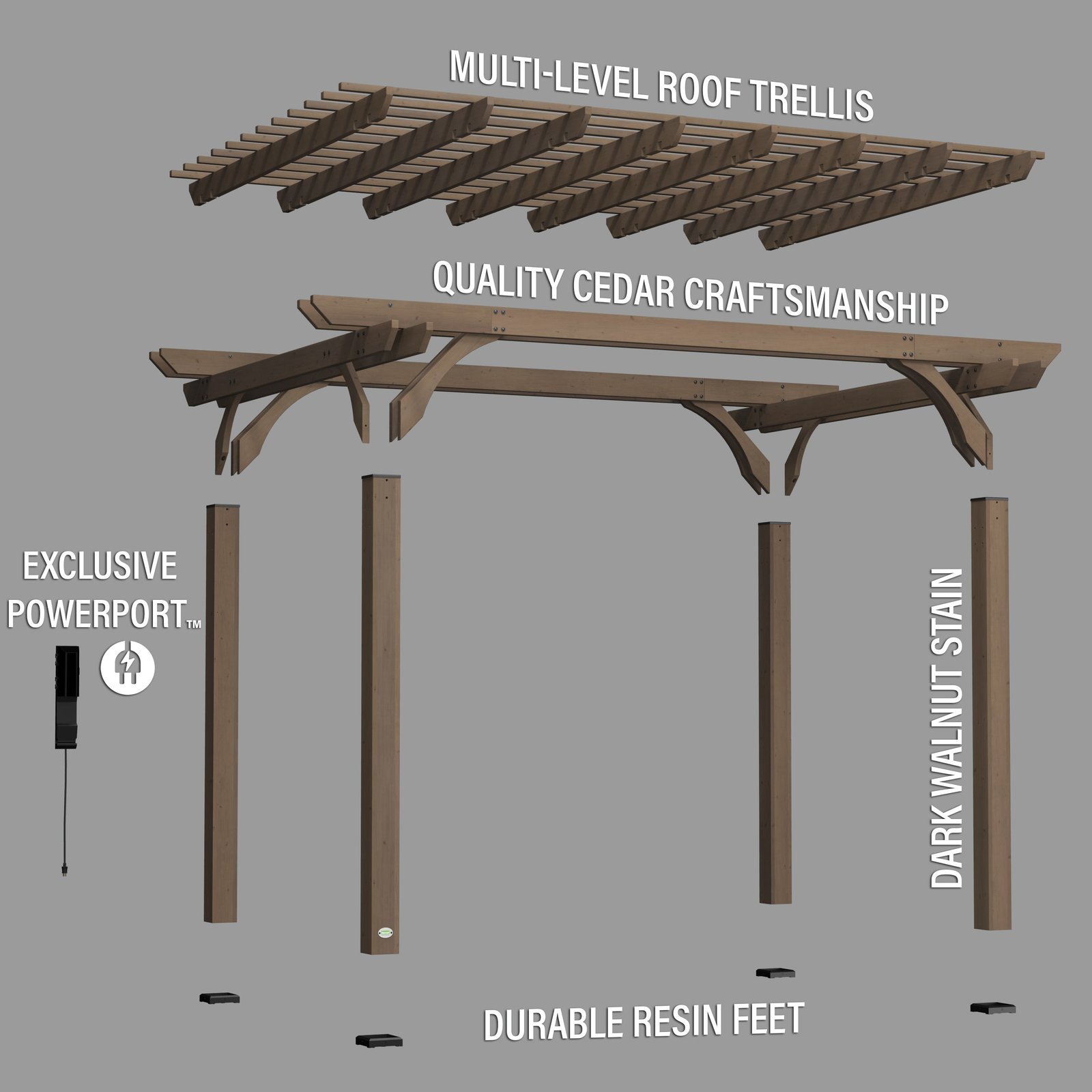

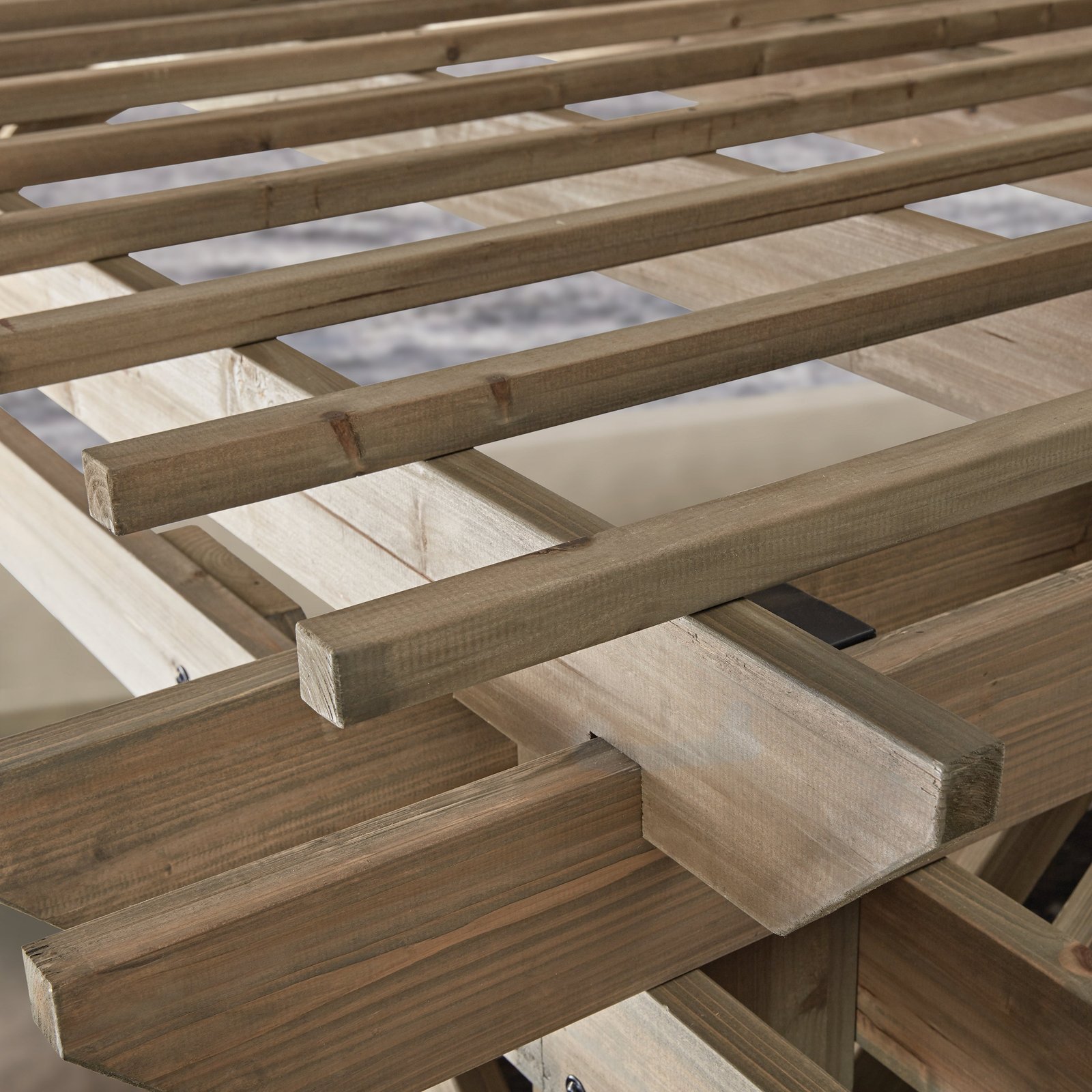

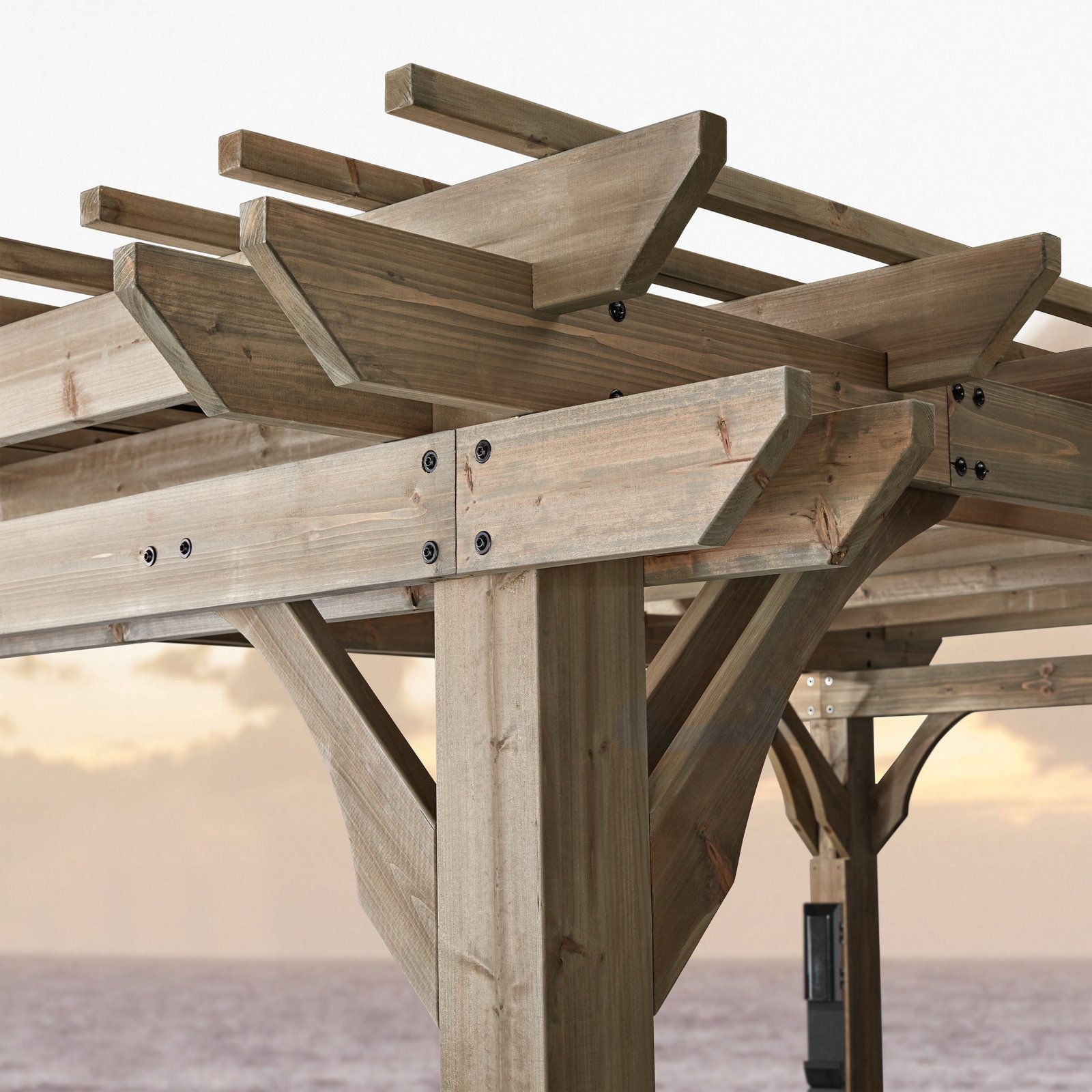

The Somerville uses cedar posts, beams, roof members, and decorative architectural details to create a freestanding patio pergola with a traditional appearance. The open trellis roof provides filtered light rather than the full rain protection of a solid or louvered roof.

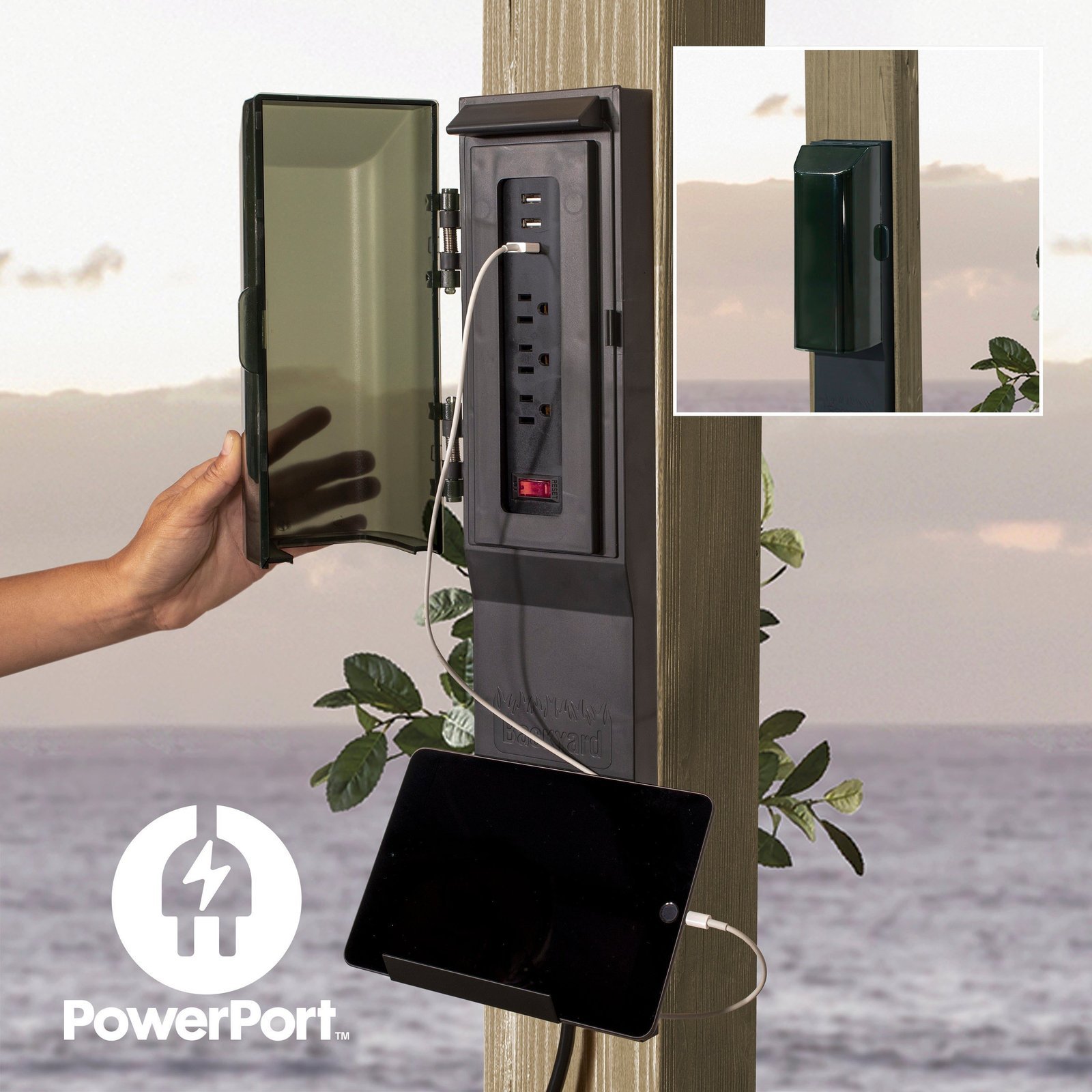

The included PowerPort™ provides three standard electrical outlets and three USB ports for compatible lighting, charging, speakers, and other outdoor accessories. An external power source is required and is not included.
Assembly & Site Planning
Install the pergola on a suitable level base and anchor it according to the current Backyard Discovery instructions. Review clearances, permits, HOA rules, local requirements, and any recommended cedar sealing or maintenance before assembly.
Brand & Seller Information
Brand/Manufacturer: Backyard Discovery.
Manufacturer model/item: 2006546B
Sold by: True Yard Buildings LLC, an independent retailer/seller.
Published wind performance depends on correct assembly and anchoring. Review the current manufacturer manual before installation.
Quick Specifications
| Product | Somerville Barnwood Stain 14 ft. x 10 ft. Outdoor Patio Pergola |
|---|---|
| Brand / Manufacturer | Backyard Discovery |
| Manufacturer model / item | 2006546B |
| True Yard Buildings SKU | TYB-PRG-SOMERVILLE-BARNWOOD-STAIN-14 |

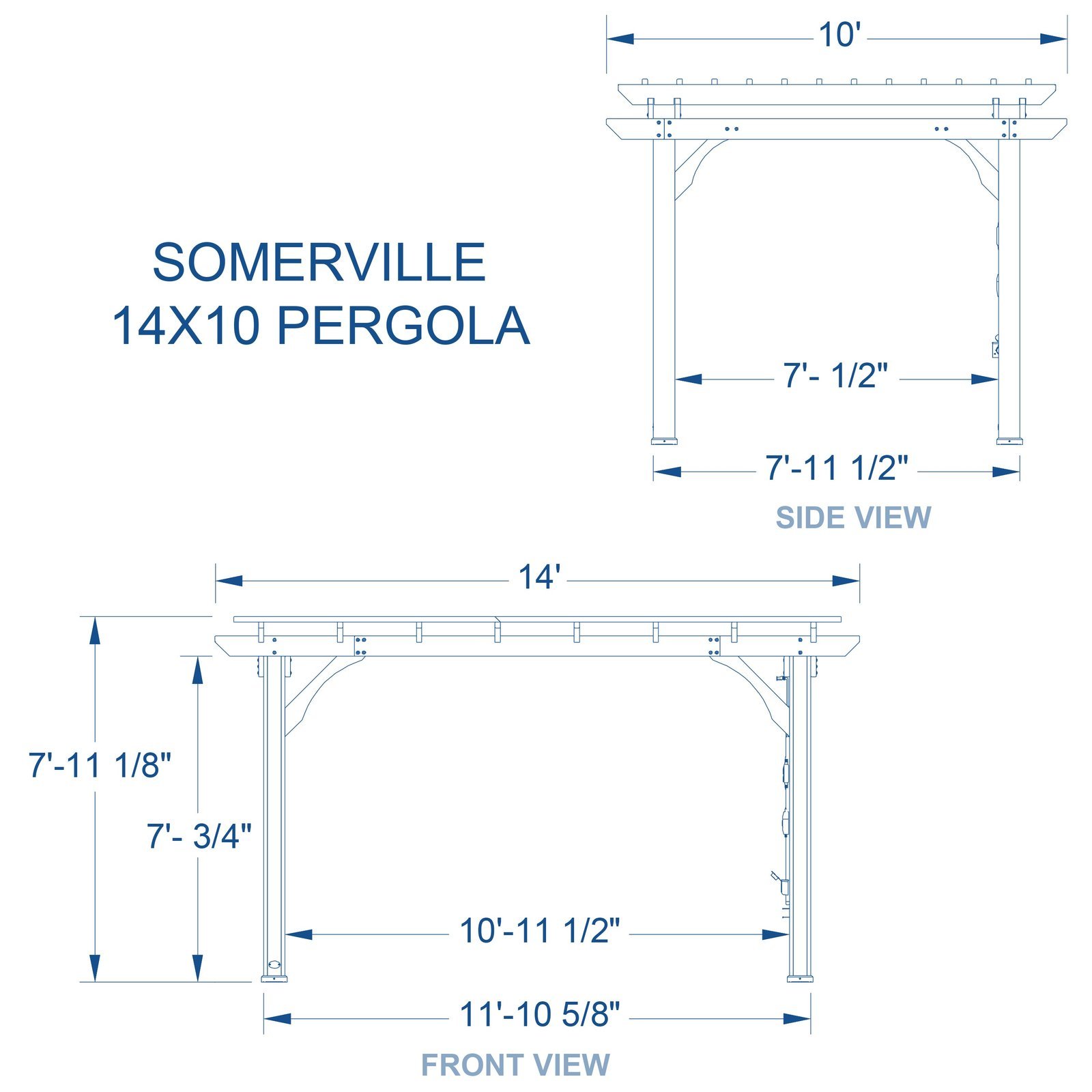

| Overall dimensions | 120 L × 144 W × 95.13 H in. |
| Listed weight | 396.83 lb. |
| Product category | Outdoor Pergolas |
| Delivery | Curbside freight delivery; review the current shipping and freight policies |
| Seller | True Yard Buildings LLC, an independent retailer/seller |
Overall dimensions are not the same as usable space, post spacing, foundation dimensions, or required safety clearance. Confirm every measurement in the current manual for this exact model before preparing the site.
Before Delivery & Installation
- Confirm the footprint and post locations: Mark the final pergola position, post locations, walkways, furniture zones, and manufacturer-required clearances before delivery and assembly.
- Prepare a suitable level base: Confirm the surface, drainage, anchoring method, and final elevation can support the pergola and the specified anchors.
- Plan the PowerPort connection: The PowerPort provides outlets and USB ports, but the external power source is not included. Route power only as permitted by the manufacturer instructions and applicable electrical requirements.
- Check delivery access: Measure gates, driveways, turns, and the safe unloading and storage area for the packaged components.
- Review local requirements: Confirm permits, setbacks, HOA rules, utility locations, and other site-specific requirements before assembly.
Use our site preparation and delivery guide before scheduling delivery. Review the anchoring, wind, and snow load guide for weather-performance planning.
Frequently Asked Questions
What type of surface should the pergola be installed on?
Use a suitable level base and follow the current Backyard Discovery instructions for the required anchoring method and site preparation.
Does the trellis roof provide full rain protection?
No. The Somerville uses an open multi-level trellis roof that provides filtered light rather than the full rain protection of a solid or louvered roof.
Is the PowerPort included?
Yes. The pergola includes a PowerPort with 3 electrical outlets and 3 USB ports. An external power source is required and is not included.
What does the published wind rating depend on?
The stated wind performance applies when the pergola is correctly assembled and anchored as directed. Review the current manufacturer instructions and local requirements for the installation site.
Where can I compare planning considerations?
Start with the Outdoor Structure Planning Center, then follow the current manual for this exact product.
Documents & Assembly
Somerville Barnwood 14 × 10 Pergola · Model 2006546B
Specification
Overview
| Weight | 396.83 lbs |
|---|---|
| Dimensions | 120 × 144 × 95.13 in |
| Brand | Backyard Discovery |
| Model Number | 2006546B |
| Assembled Dimensions | 144 W × 120 D × 95.13 H in |
| Product Weight | 396.83 lbs |
| Material | 100% Cedar Wood |
| Roof Type | Multi-Level Trellis Roof |
| Wind Rating | Up to 100 mph when anchored as directed |
| PowerPort | 3 electrical outlets + 3 USB ports; power source not included |
| Anchoring | Resin feet with concealed concrete anchors |
| Manufacturer Warranty | 5-Year Limited Warranty |
| Assembly | Pre-cut, pre-drilled, pre-stained; BILT® guided assembly |
| Coverage Area | Approx. 140 sq. ft. |
| Installation Type | Freestanding |
| Color / Finish | Barnwood stain |
| Design Detail | Classic archway |
