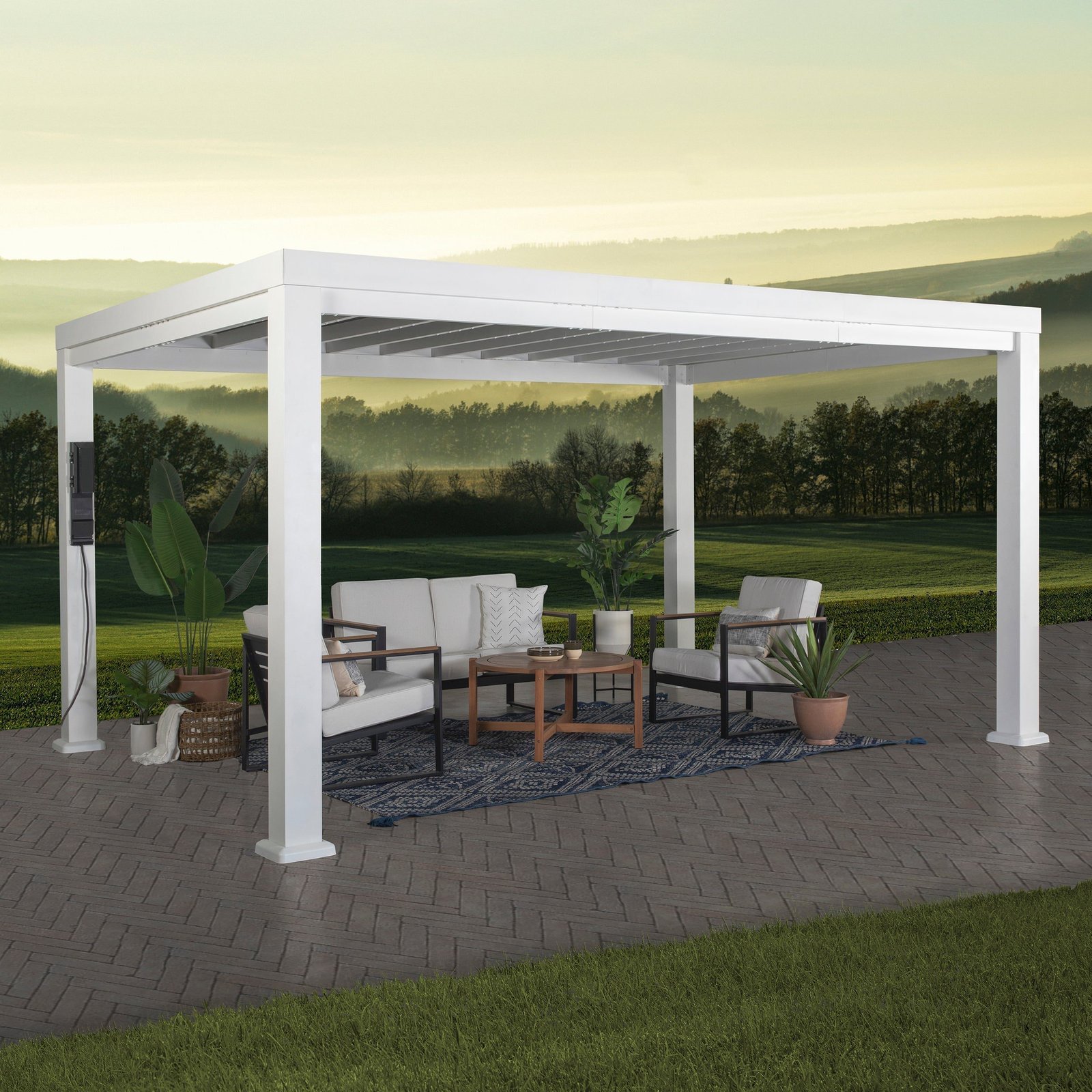

Windham Modern Steel 14 ft. x 12 ft. Pergola with Sail-Shade Canopy
Delivery & Installation
Large 14 x 12 Backyard Discovery white galvanized-steel pergola with a breathable soft sail-shade canopy, PowerPort™, concealed heavy-duty anchoring, and Pro-Tect™ wind testing up to 100 mph when anchored as directed. Sold by True Yard Buildings LLC.
$999.00
Description
Windham Modern Steel 14 ft. x 12 ft. Pergola with Sail-Shade Canopy

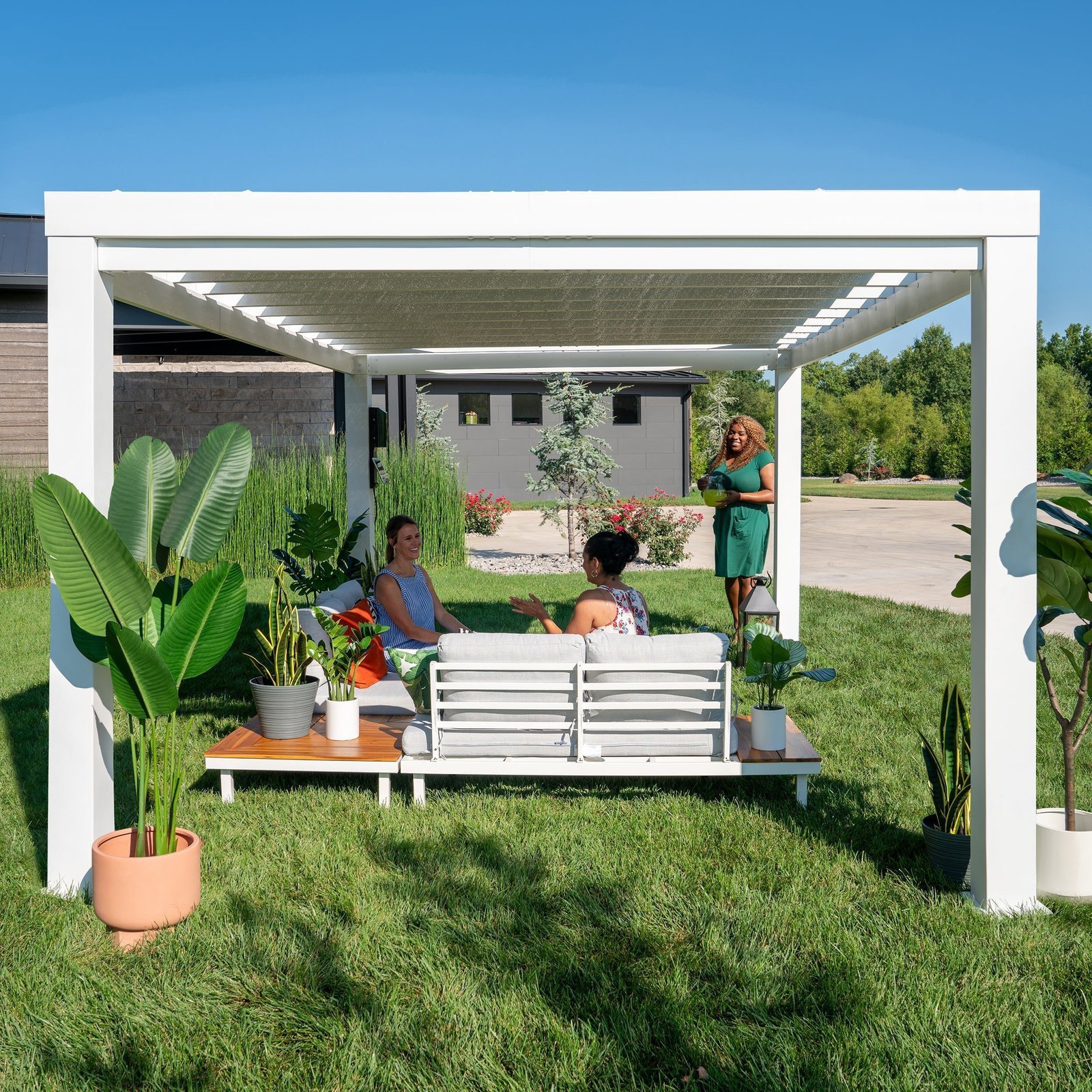

The Backyard Discovery Windham 14 x 12 creates a broad contemporary outdoor area with a white galvanized-steel frame and breathable soft sail-shade canopy. The larger footprint works well for patio dining, lounge furniture, or entertaining while the woven canopy filters direct sunlight without closing off airflow.
Key Features
- 14 x 12 ft. nominal freestanding footprint with approximately 168 sq. ft. of coverage
- 100% powder-coated galvanized-steel construction with a white finish
- UV-protected breathable woven sail-shade canopy
- Canopy design promotes airflow and helps prevent water accumulation
- Pro-Tect™ tested for winds up to 100 mph when anchored as directed
- PowerPort™ with 3 electrical outlets and 3 USB ports

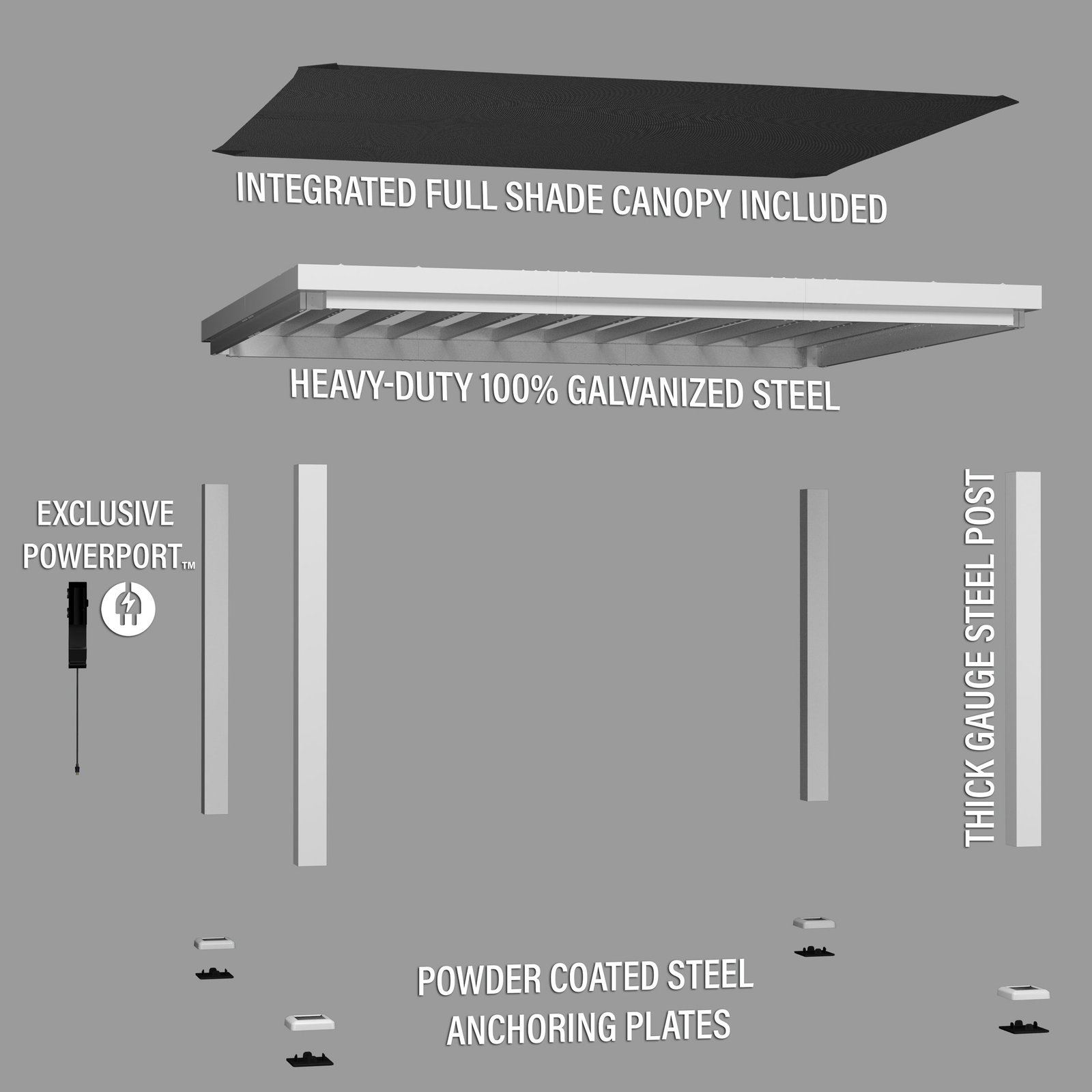

- Heavy-duty anchoring plates concealed within the posts
- 5-year limited manufacturer warranty

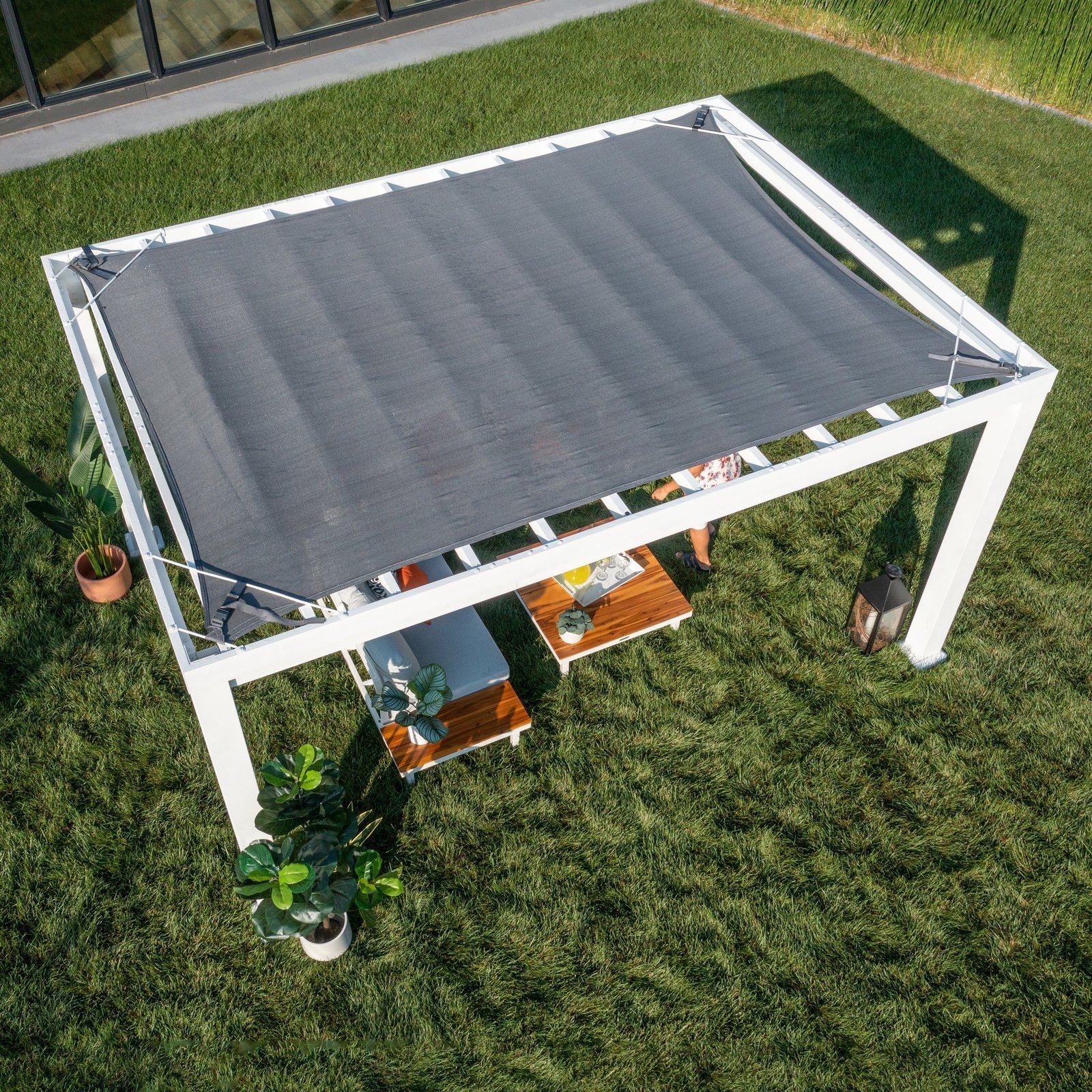

Soft Shade & Outdoor Comfort
The fabric canopy is designed to filter sunlight while remaining breathable. Air can pass through the woven material, and the design helps reduce water pooling. It should not be treated as a rigid waterproof roof; follow the current manufacturer guidance for canopy care and severe weather.
Steel Construction & Power

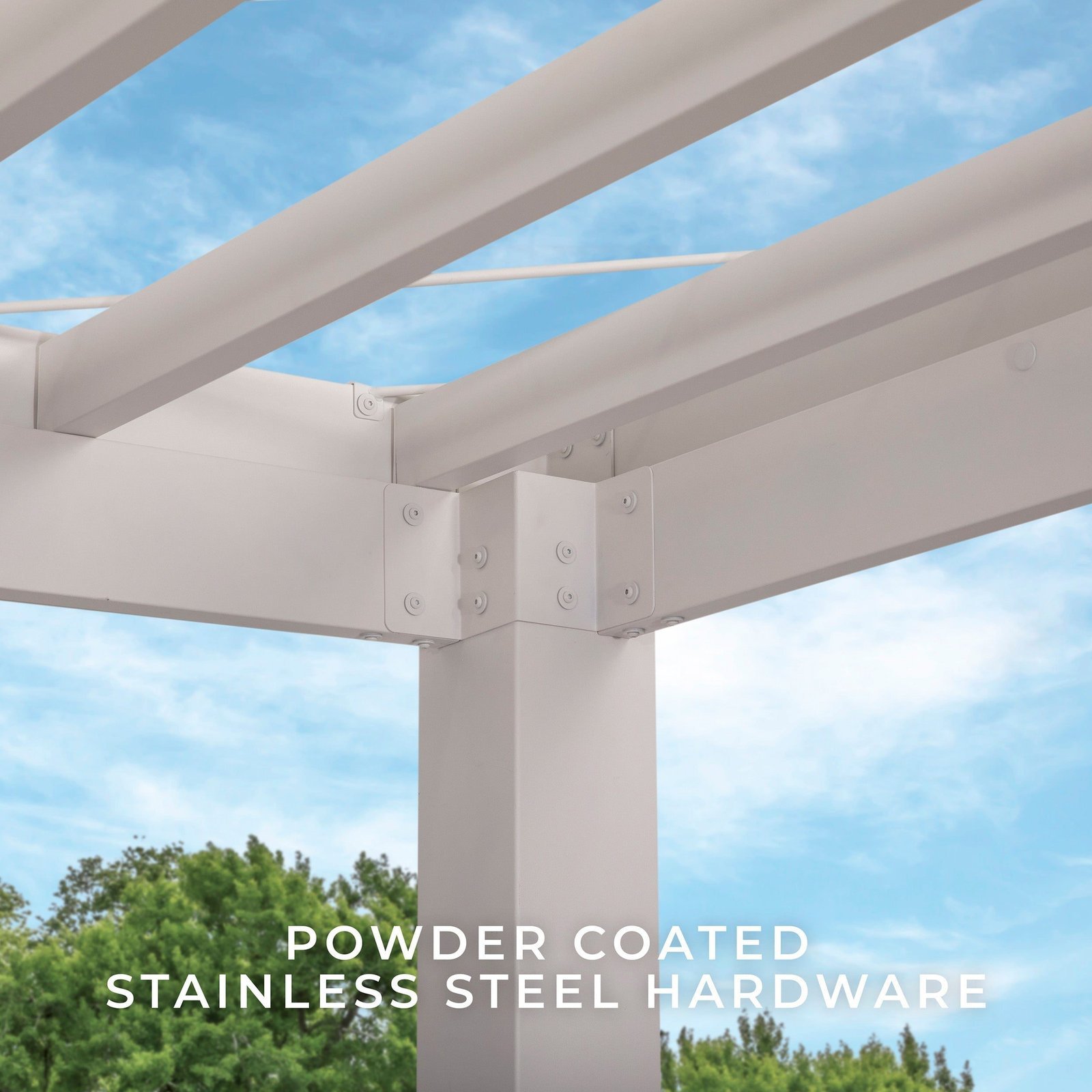

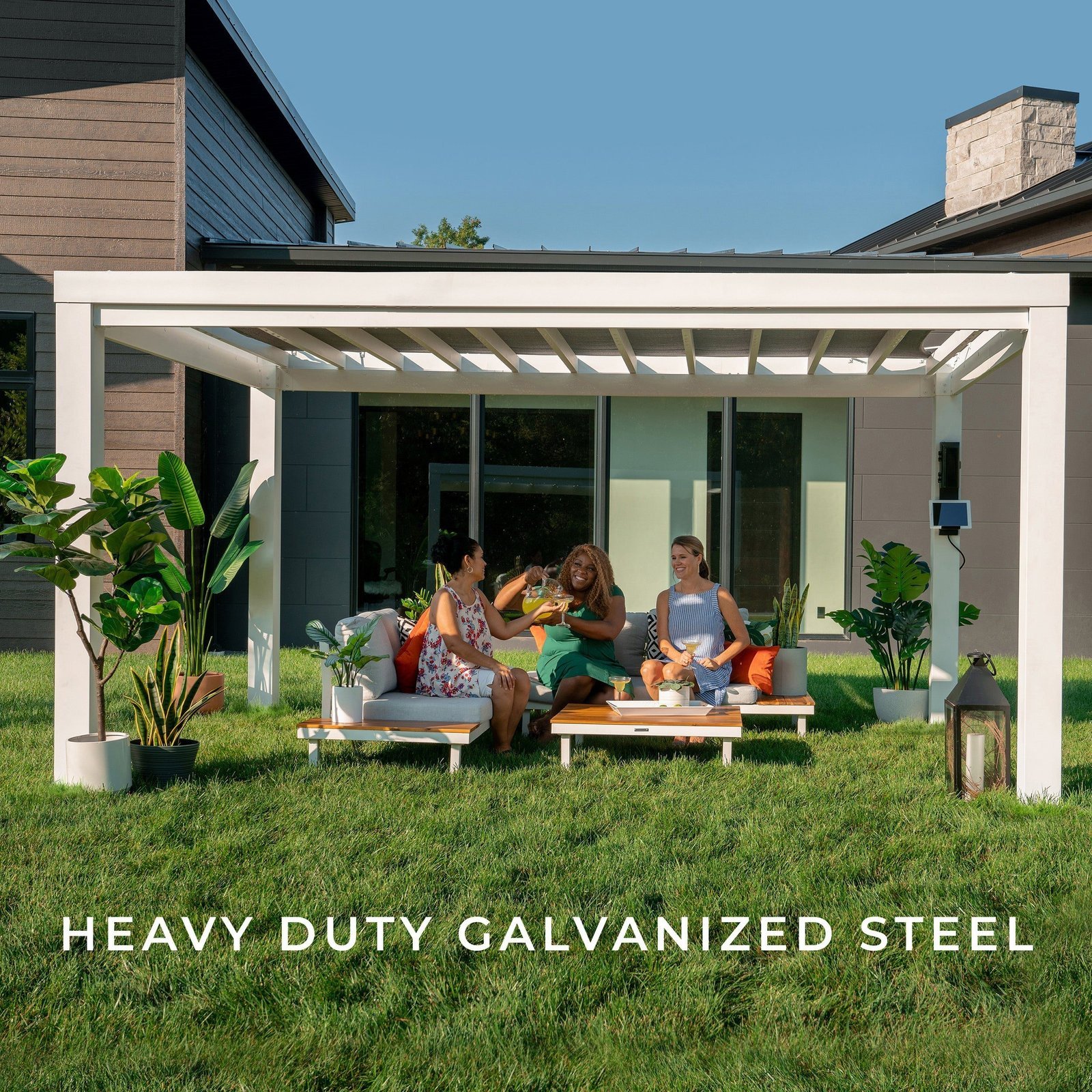

The frame is manufactured from powder-coated galvanized steel for structural strength and improved resistance to rust and corrosion. Backyard Discovery’s Pro-Tect™ testing rates this model for winds up to 100 mph when correctly assembled and anchored.

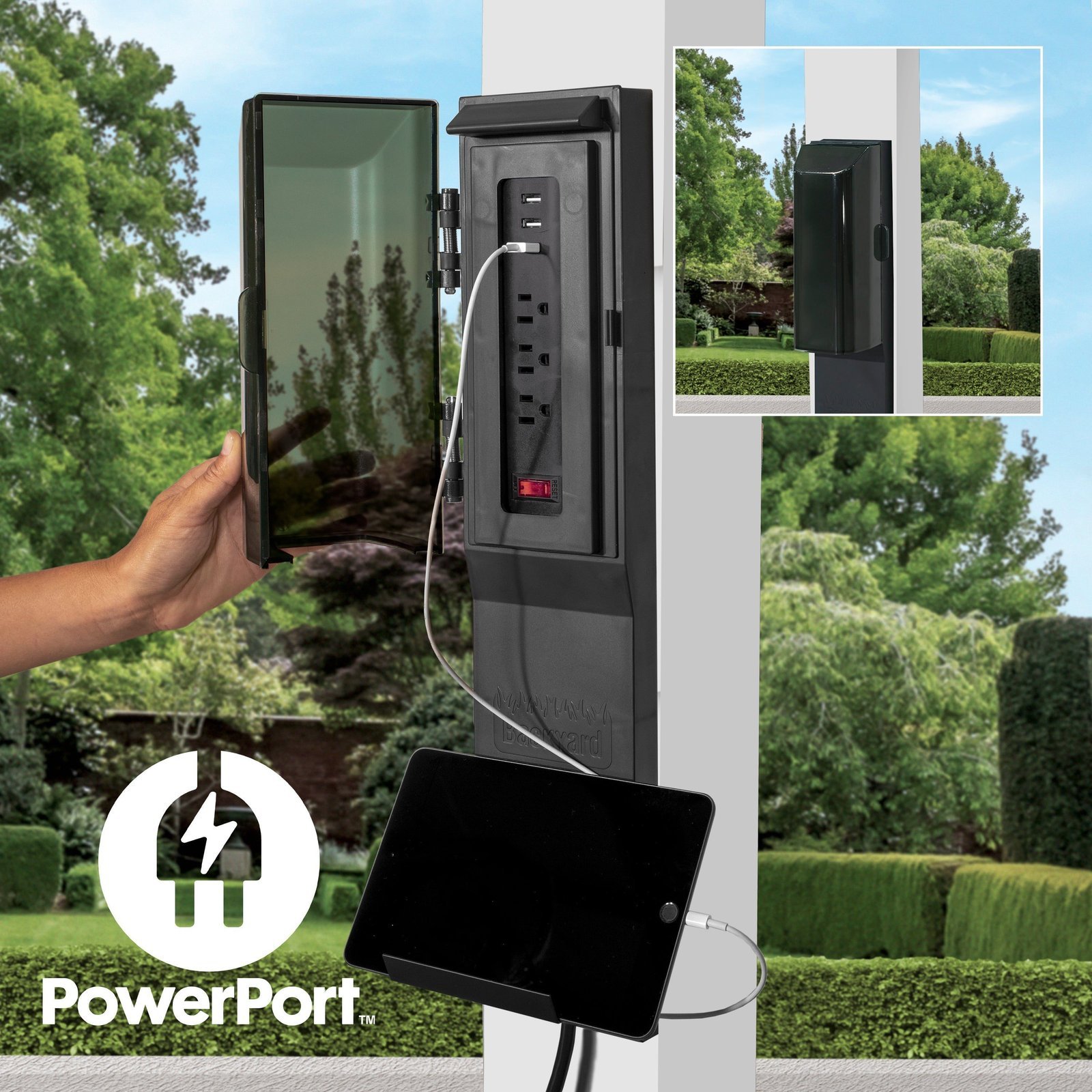

The included PowerPort™ provides three standard electrical outlets and three USB ports for compatible outdoor lighting, speakers, charging, and other accessories. An external power source is required and is not included.
Assembly & Site Planning
Components arrive pre-fabricated, pre-drilled, and powder coated, with BILT® guided assembly support. Install the pergola on a suitable level surface and confirm anchoring, canopy setup, clearances, permits, local building requirements, and HOA rules before assembly.
Brand & Seller Information
Brand/Manufacturer: Backyard Discovery.
Manufacturer model/item: 2105522
Sold by: True Yard Buildings LLC, an independent retailer/seller.
The sail shade is a breathable fabric canopy, not a rigid waterproof roof. Published wind performance depends on correct assembly and anchoring.
Quick Specifications
| Product | Windham Modern Steel 14 ft. x 12 ft. Pergola with Sail-Shade Canopy |
|---|---|
| Brand / Manufacturer | Backyard Discovery |
| Manufacturer model / item | 2105522 |
| True Yard Buildings SKU | TYB-PRG-WINDHAM-MODERN-STEEL-14-0729 |
| Overall dimensions | 144 L × 168 W × 89.5 H in. |
| Listed weight | 673.51 lb. |
| Product category | Outdoor Pergolas |
| Delivery | Curbside freight delivery; review the current shipping and freight policies |
| Seller | True Yard Buildings LLC, an independent retailer/seller |
Overall dimensions are not the same as usable space, post spacing, foundation dimensions, or required safety clearance. Confirm every measurement in the current manual for this exact model before preparing the site.
Before Delivery & Installation
- Measure the complete footprint: Mark the overall size, post locations, roof overhang, moving roof parts, furniture area, and maintenance access.
- Confirm the foundation and anchors: Use only a level, stable foundation and anchor system permitted by the current manufacturer instructions and local requirements.
- Check delivery access: Measure gates, driveways, turns, overhead clearance, and the safe location where packaged components will be unloaded and stored.
- Review local requirements: Ask the local building department and HOA about permits, setbacks, utilities, inspections, and site-specific requirements.
Use our site preparation and delivery guide before scheduling delivery. Review the anchoring, wind, and snow load guide for weather-performance planning.
Frequently Asked Questions
Are the listed dimensions the usable space between the posts?

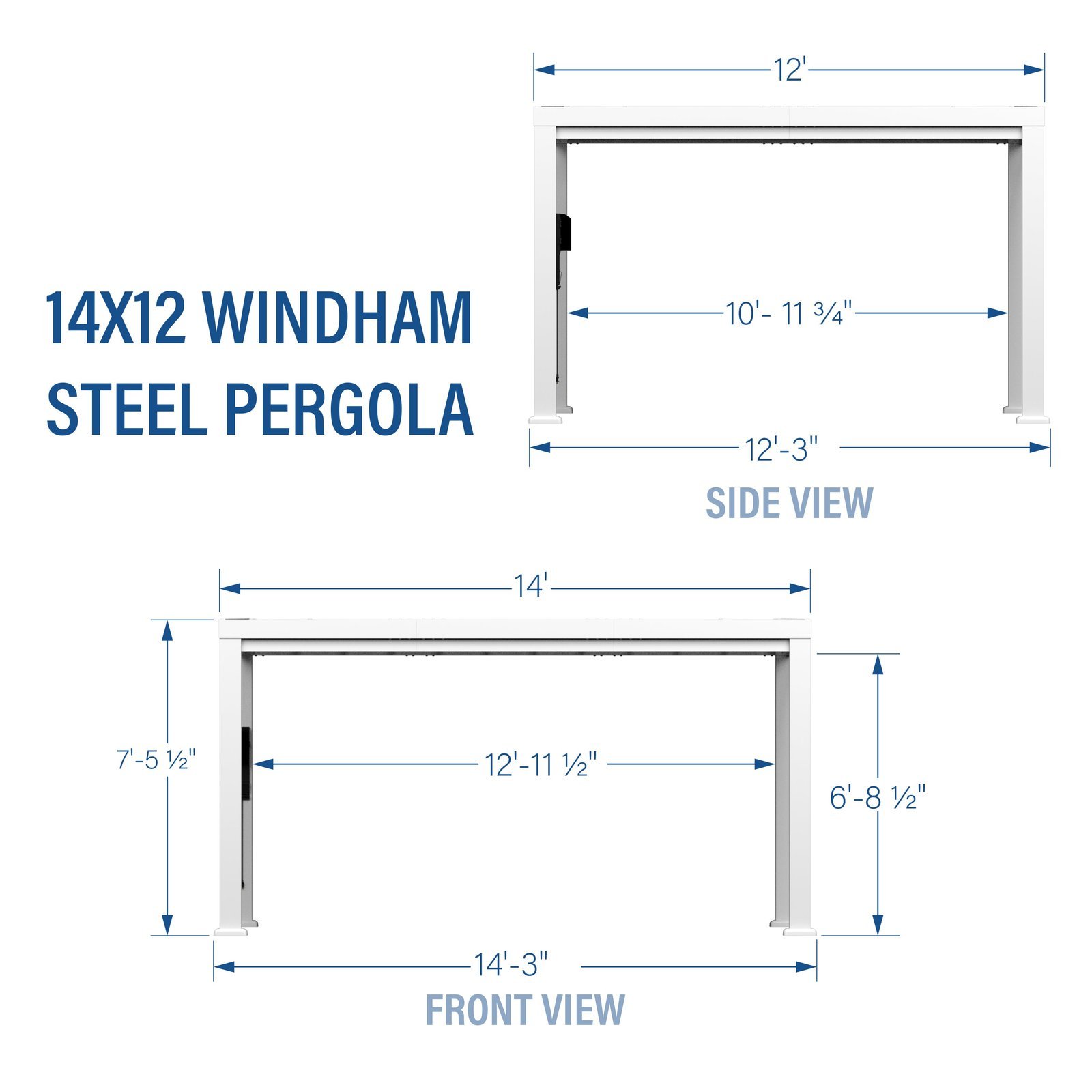

Not necessarily. Post spacing, roof overhang, foundation points, and usable interior area can differ from the overall dimensions. Verify the dimension diagram and manual for this exact model.
Does this structure need to be anchored?
Yes. It must be assembled and anchored according to the exact model instructions. Any published performance rating depends on correct installation and the required foundation and anchors.
Can it be installed on an existing patio or deck?
Only if that surface and its supporting structure are suitable for the loads and approved anchoring method. Concrete thickness, reinforcement, edge distance, deck framing, condition, and local code may matter.
Where can I compare planning considerations?
Start with the Outdoor Structure Planning Center, then follow the current manual for this exact product.
Documents & Assembly
Windham 14 × 12 Steel Sail-Shade Pergola · Model 2105522
Specification
Overview
| Weight | 673.51 lbs |
|---|---|
| Dimensions | 144 × 168 × 89.5 in |
| Brand | Backyard Discovery |
| Model Number | 2105522 |
| Assembled Dimensions | 168 W × 144 D × 89.5 H in |
| Product Weight | 673.51 lbs |
| Material | Powder-Coated Galvanized Steel |
| Roof Type | Breathable Soft Sail-Shade Canopy |
| Canopy | UV-protected woven fabric; promotes airflow and helps prevent water accumulation |
| Wind Rating | Up to 100 mph when anchored as directed |
| PowerPort | 3 electrical outlets + 3 USB ports; power source not included |
| Anchoring | Heavy-duty anchoring plates concealed within posts |
| Manufacturer Warranty | 5-Year Limited Warranty |
| Assembly | Pre-fabricated, pre-drilled, powder-coated; BILT® guided assembly |
| Coverage Area | Approx. 168 sq. ft. |
| Installation Type | Freestanding |
| Color / Finish | White powder-coated finish |
