Evanston 10 ft. x 10 ft. Wall-Mounted Louvered Pergola
Delivery & Installation
Modern 10 x 10 Backyard Discovery wall-mounted galvanized-steel pergola with adjustable louvers, integrated drainage, PowerPort™, 100 mph wind testing, and a snow-load rating up to 2,000 lb when installed as directed. Sold by True Yard Buildings LLC.
$1,949.00
Description
Evanston 10 ft. x 10 ft. Wall-Mounted Louvered Pergola

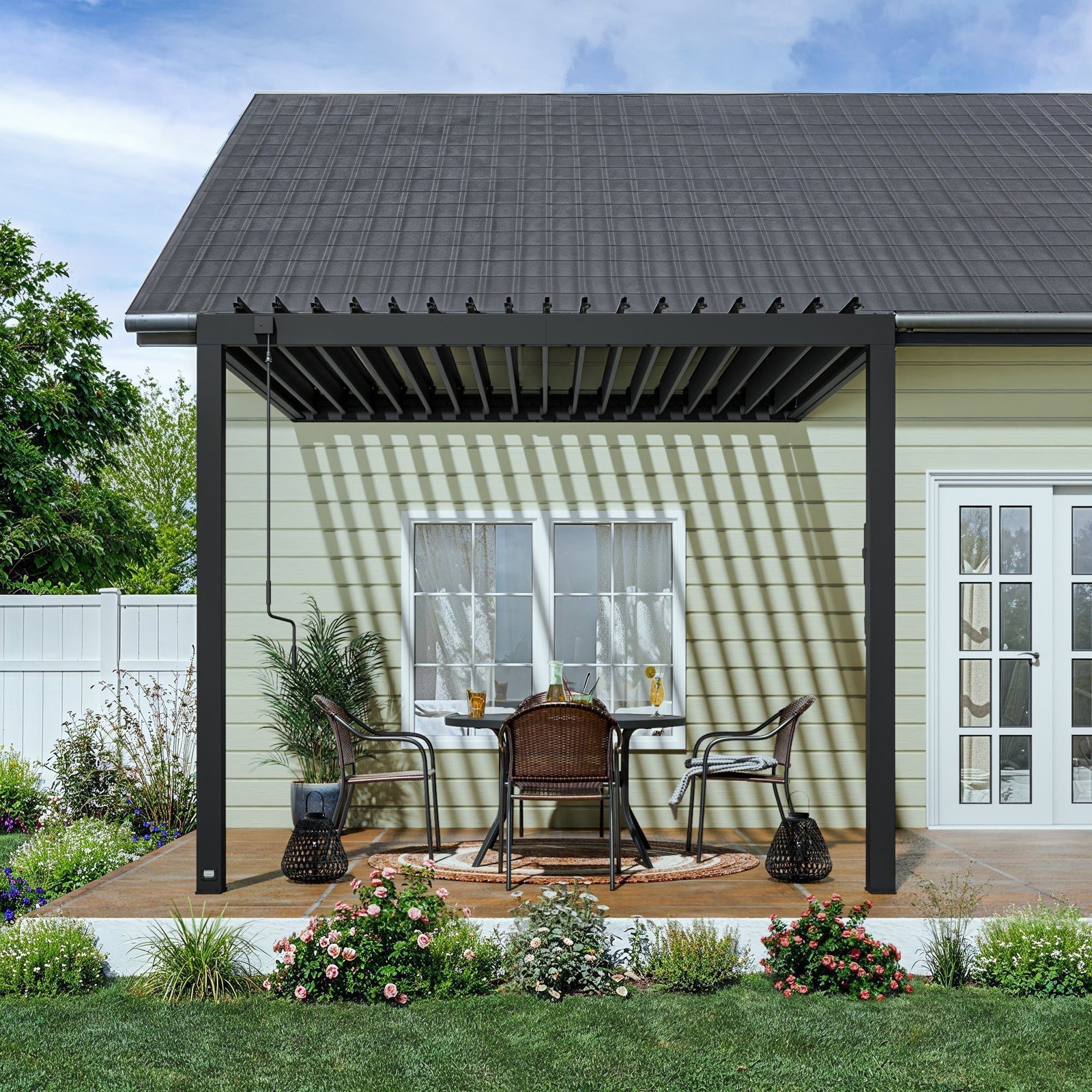

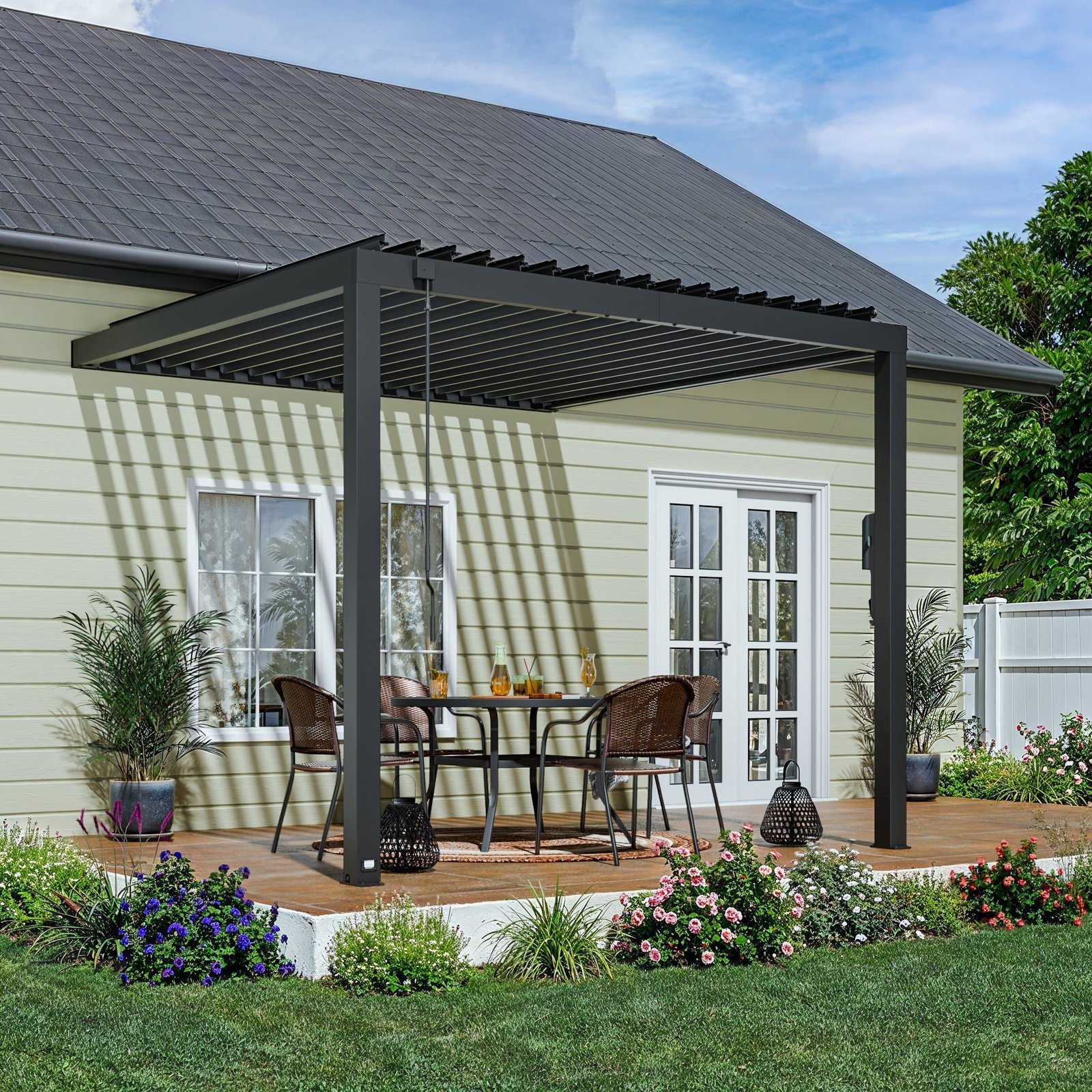

The Backyard Discovery Evanston 10 x 10 is a wall-mounted louvered pergola designed to extend usable outdoor living space directly from the home. Its powder-coated galvanized-steel frame and adjustable roof louvers create a modern patio structure that can be opened for sunlight and airflow or closed for shade and rain protection.

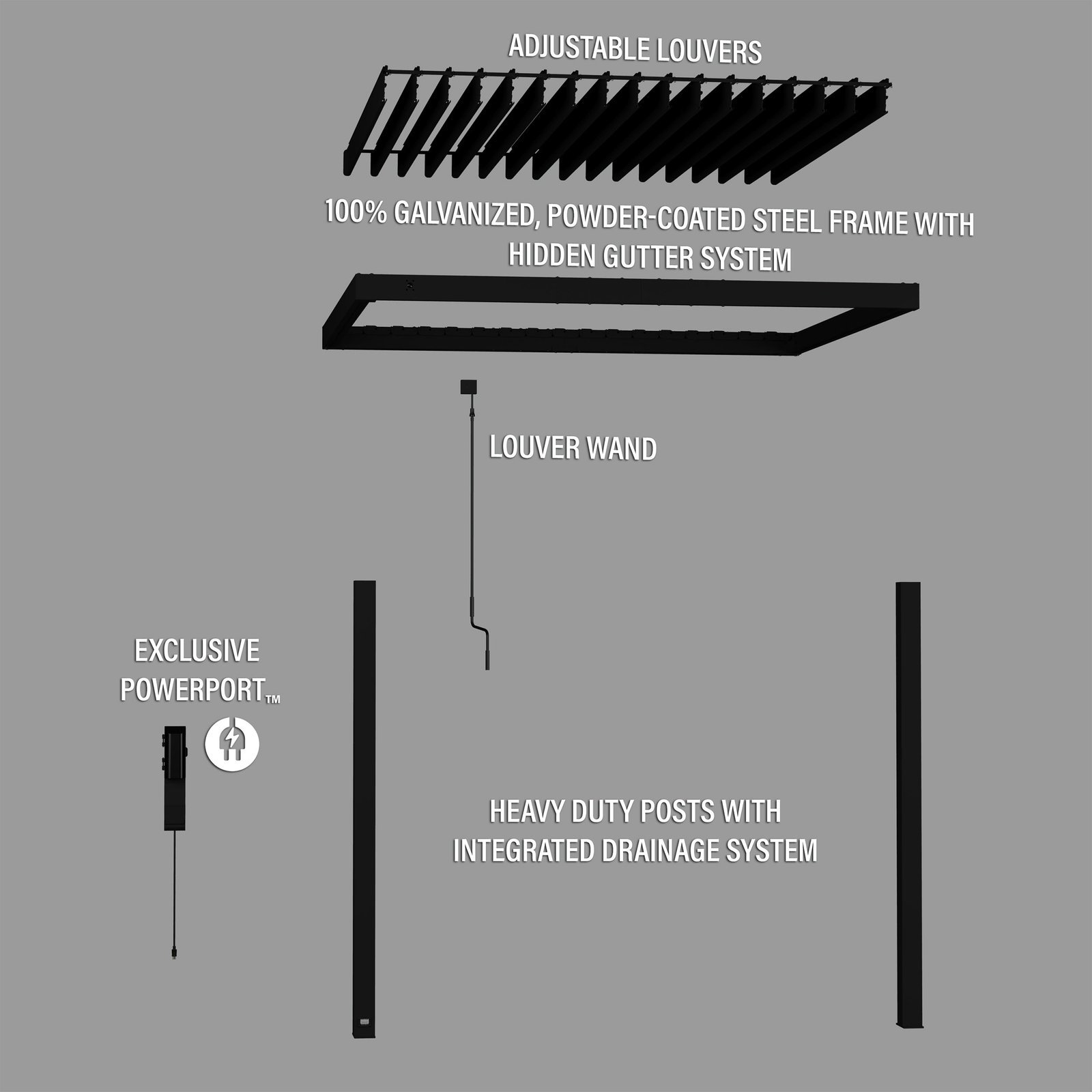

Key Features
- 10 x 10 ft. nominal wall-mounted layout with approximately 100 sq. ft. of coverage
- Powder-coated galvanized-steel construction in a black finish

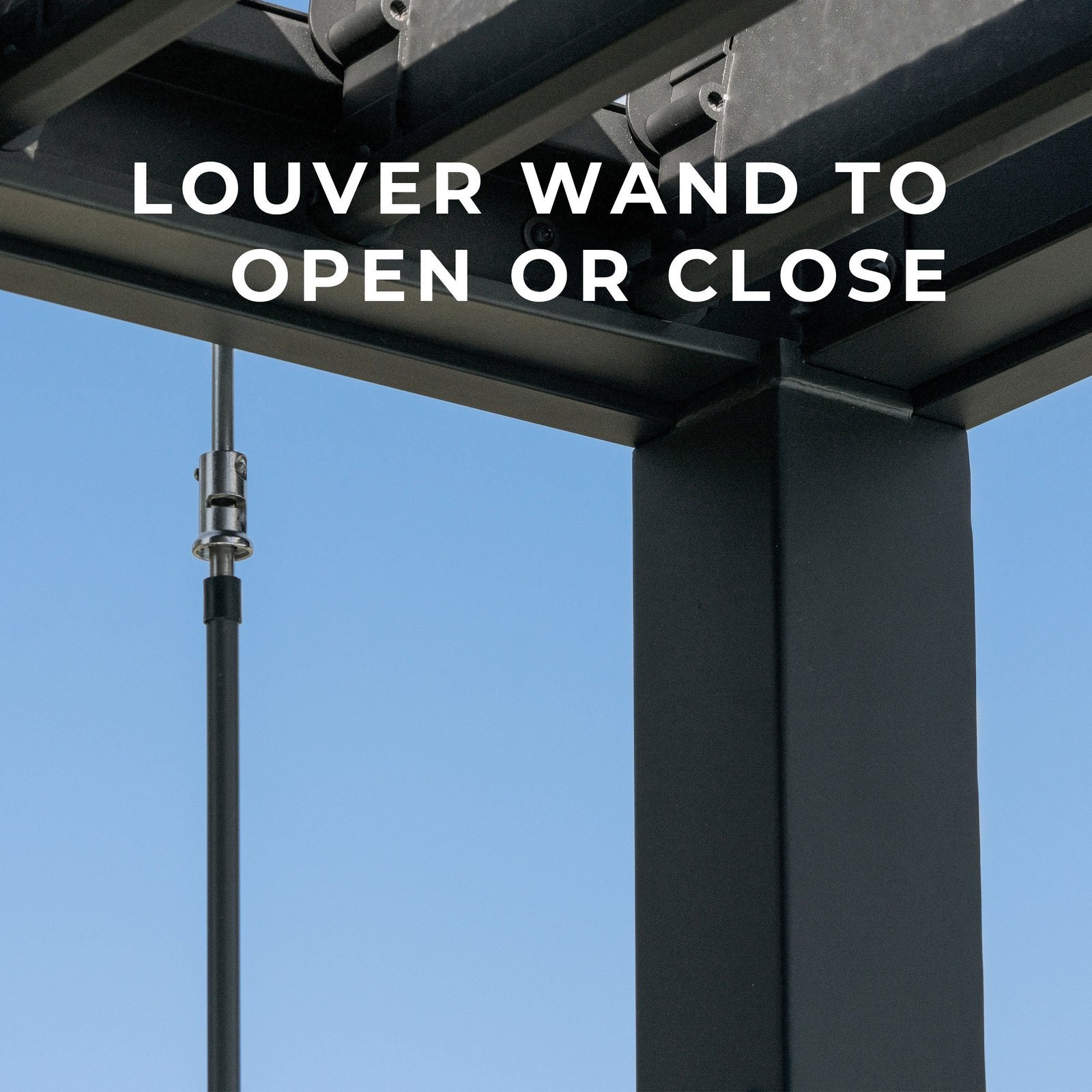

- Adjustable louvered roof operated with the included manual wand

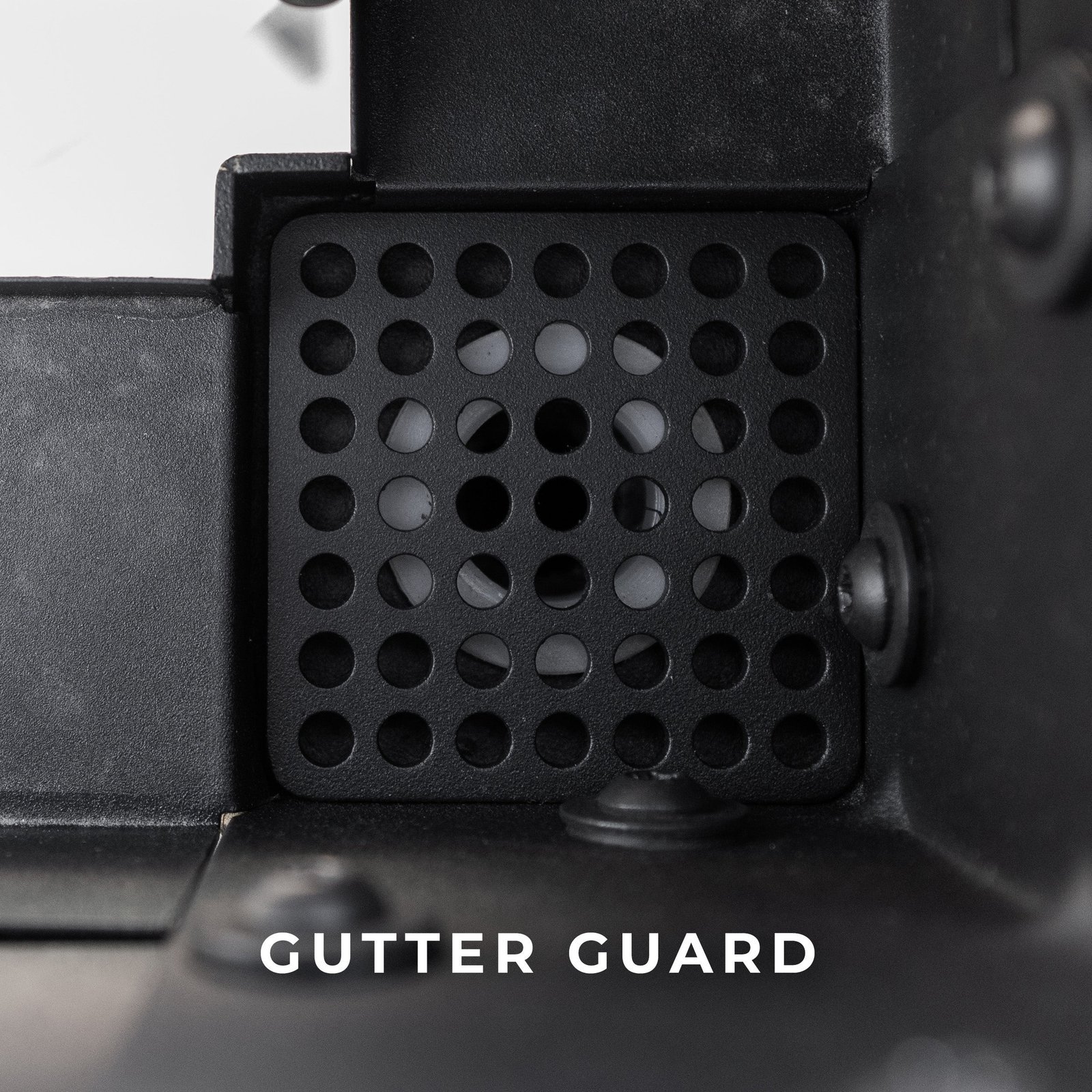

- Integrated gutters, concealed downspouts, and gutter guards
- Pro-Tect™ tested for winds up to 100 mph when installed as directed
- Snow-load rating up to 2,000 lbs or approximately 12 in. of snow
- PowerPort™ with 3 electrical outlets and 3 USB ports
- 5-year limited manufacturer warranty
Adjustable Roof & Drainage

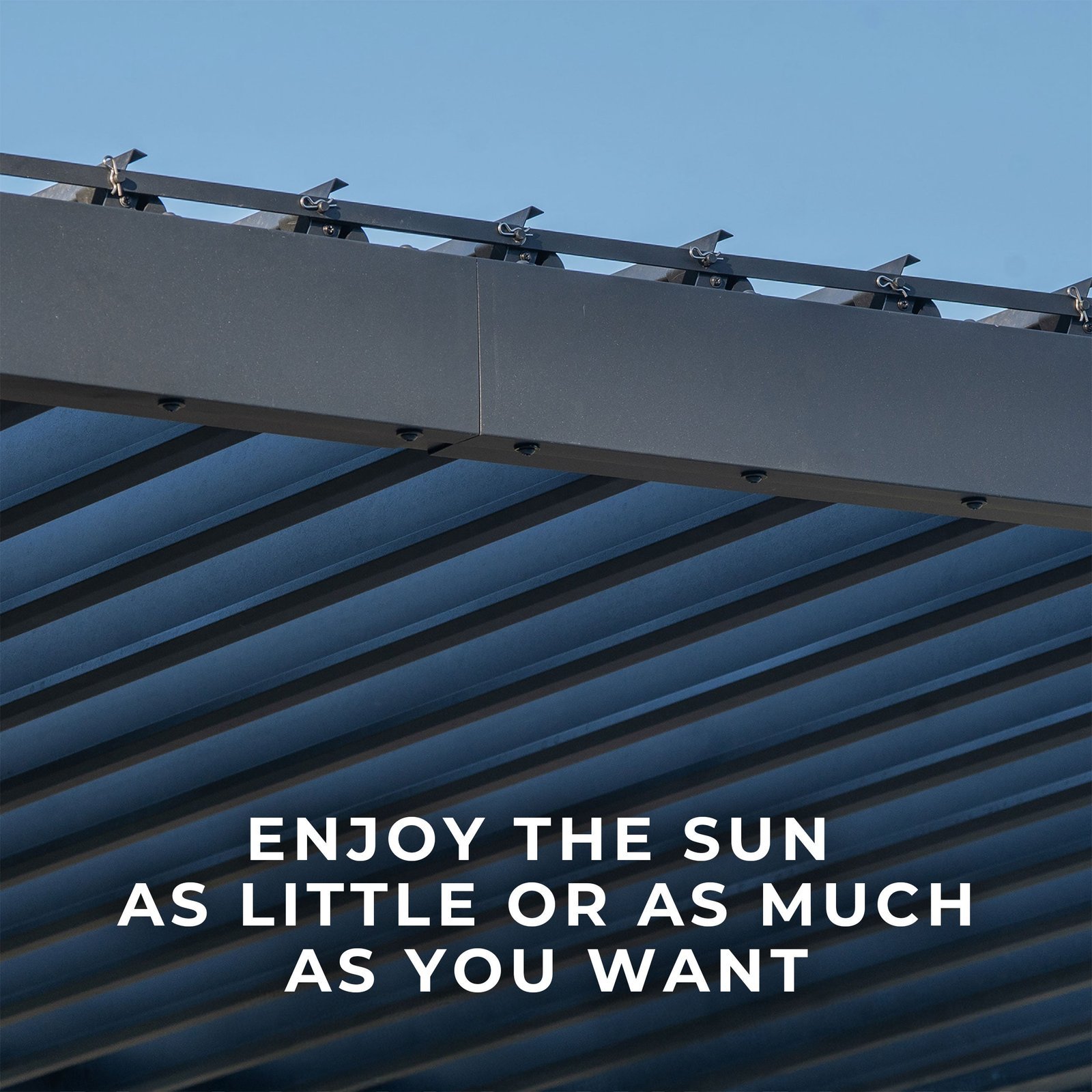

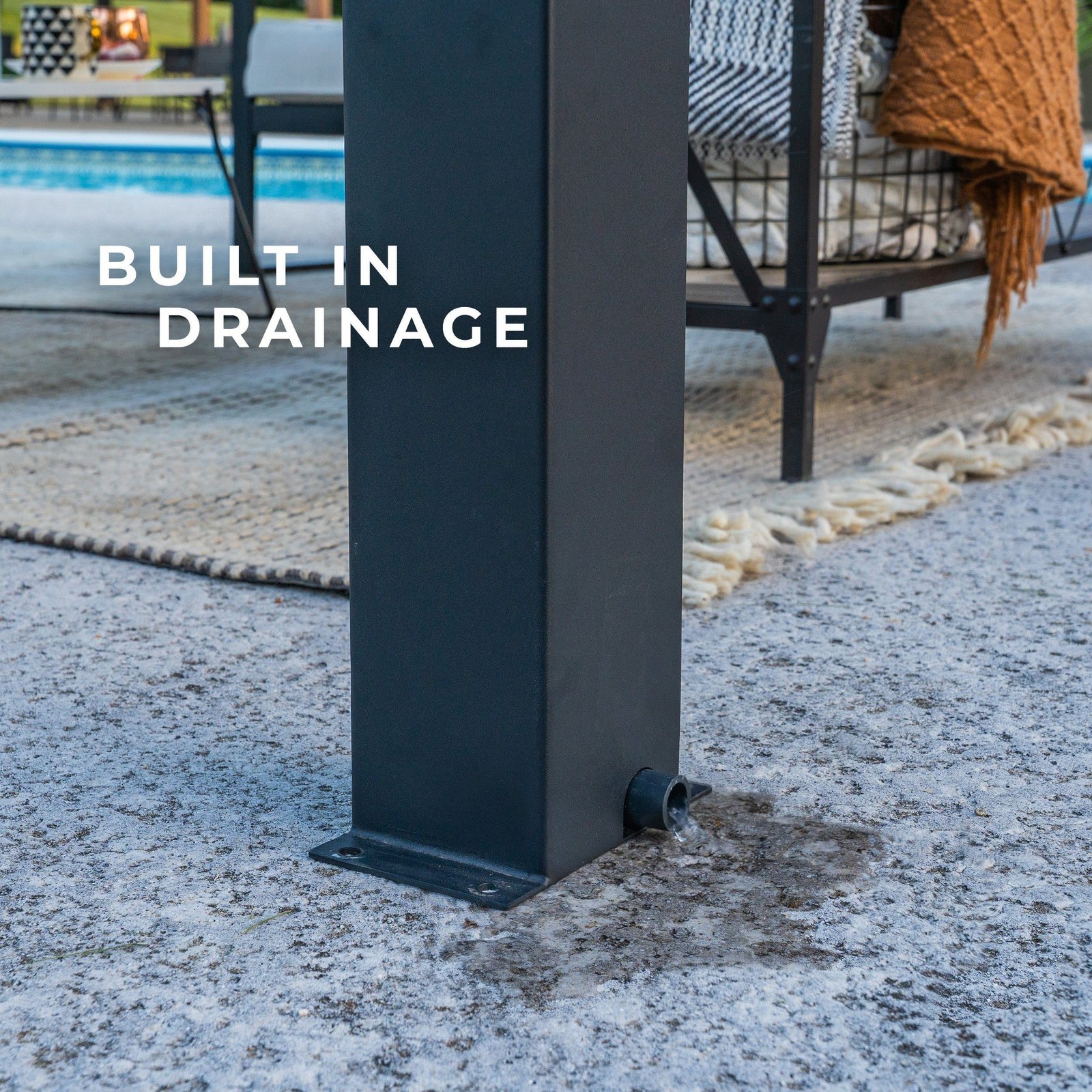

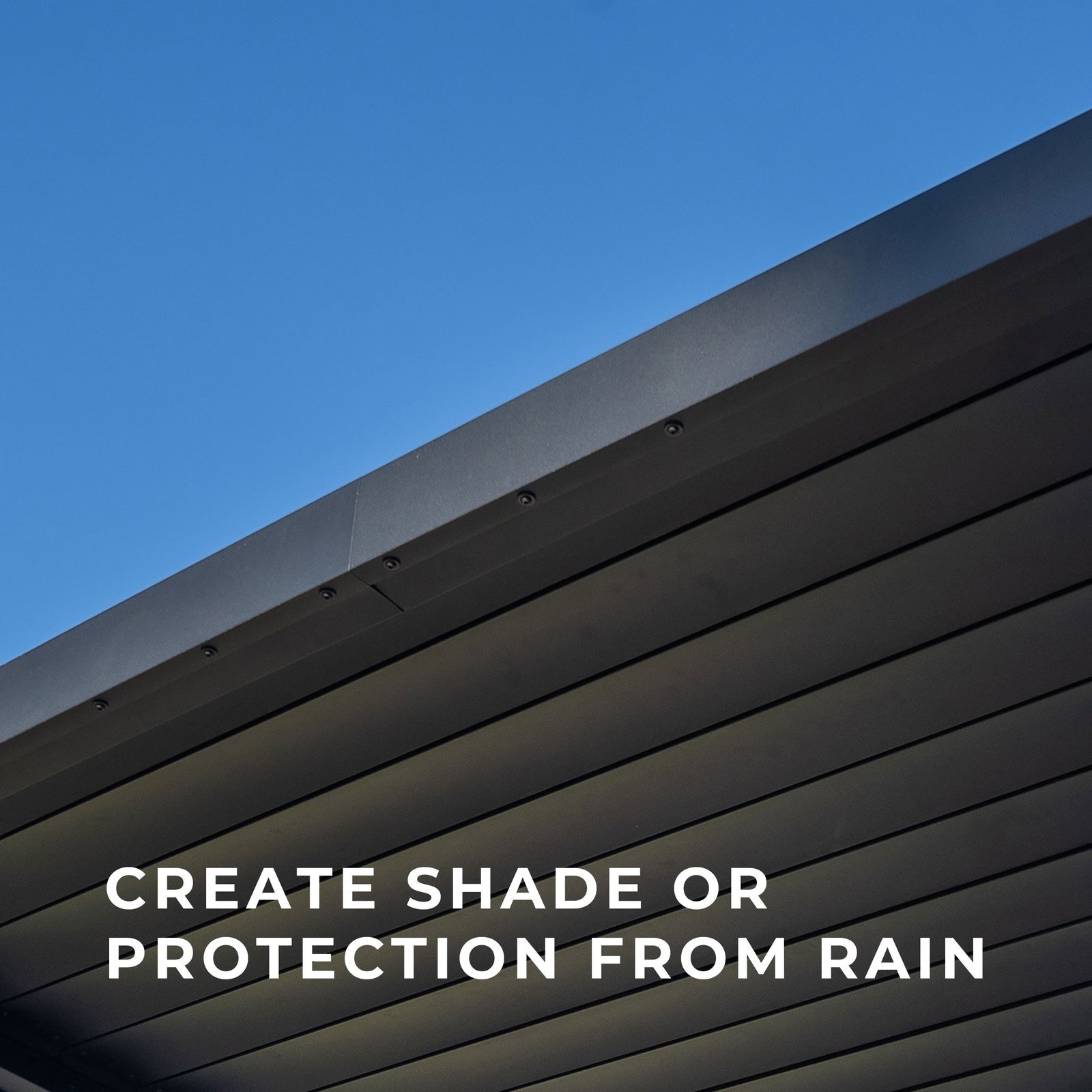

The louvered roof lets you control the amount of direct sun, shade, and airflow over the patio. Turning the included wand opens the louvers for a more open-air setting or closes them for greater shade and rain protection. When closed, built-in gutters channel water toward downspouts integrated into the posts, while gutter guards help keep larger debris out of the drainage path.
Steel Construction & Weather Performance
The frame is made from powder-coated galvanized steel selected for strength and resistance to rust and corrosion. Backyard Discovery’s Pro-Tect™ testing rates this model for winds up to 100 mph and a snow load up to 2,000 pounds when the structure is installed and attached according to the manufacturer instructions.

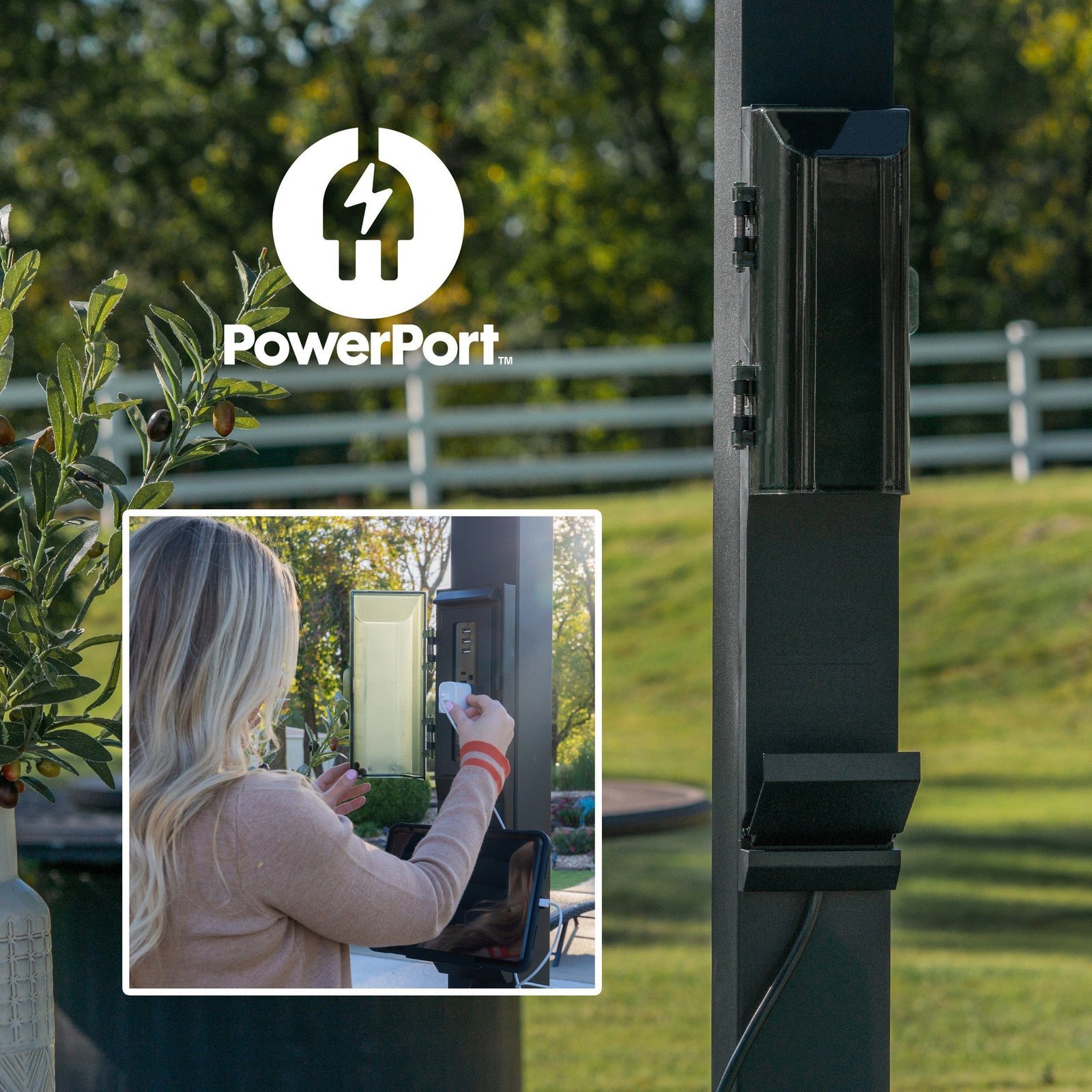

The included PowerPort™ provides three standard electrical outlets and three USB ports for compatible outdoor lighting, speakers, charging, or other devices. It requires an external power source, which is not included.
Installation & Site Planning
This model is not freestanding. It permanently attaches to the house, so the supporting wall, mounting location, local building requirements, HOA rules, drainage conditions, and required clearances should be reviewed before purchase and installation. Backyard Discovery recommends consulting a qualified professional for wall-mounted installation. Components are pre-fabricated and pre-drilled, with BILT® guided assembly support.
Brand & Seller Information
Brand/Manufacturer: Backyard Discovery.
Manufacturer model/item: 2407169
Sold by: True Yard Buildings LLC, an independent retailer/seller.
Published wind, snow, and drainage performance depends on correct installation and attachment. Review the current Backyard Discovery instruction manual and applicable local requirements before installation.
Quick Specifications
| Product | Evanston 10 ft. x 10 ft. Wall-Mounted Louvered Pergola |
|---|---|
| Brand / Manufacturer | Backyard Discovery |
| Manufacturer model / item | 2407169 |
| True Yard Buildings SKU | TYB-PRG-EVANSTON-10-X-10 |
| Overall dimensions | 120.1 L × 120.32 W × 101.6 H in. |
| Listed weight | 433.21 lb. |
| Product category | Outdoor Pergolas |
| Delivery | Curbside freight delivery; review the current shipping and freight policies |
| Seller | True Yard Buildings LLC, an independent retailer/seller |
Overall dimensions are not the same as usable interior space, post-to-post dimensions, foundation dimensions, or required safety clearance. Confirm every measurement in the current manual for this exact model before preparing the site.
Before Delivery & Installation
- Measure the complete footprint: Mark the overall size, post locations, roof overhang, moving parts, furniture area, and maintenance access.
- Confirm the foundation: Use only a level, stable foundation and anchor system permitted by the current manufacturer instructions and local requirements.
- Wall attachment: This is a wall-mounted model. Confirm the supporting wall, flashing or waterproofing details, attachment method, and local requirements with qualified professionals before installation.
- Check access: Measure gates, driveways, turns, overhead clearance, and the safe location where packaged components will be unloaded and stored.
- Review local requirements: Ask the local building department and HOA about permits, setbacks, utilities, inspections, and site-specific wind or snow requirements.
Use our site preparation and delivery guide before scheduling delivery. For weather-performance questions, read the anchoring, wind, and snow load guide.
Frequently Asked Questions
Are the listed dimensions the usable space between the posts?

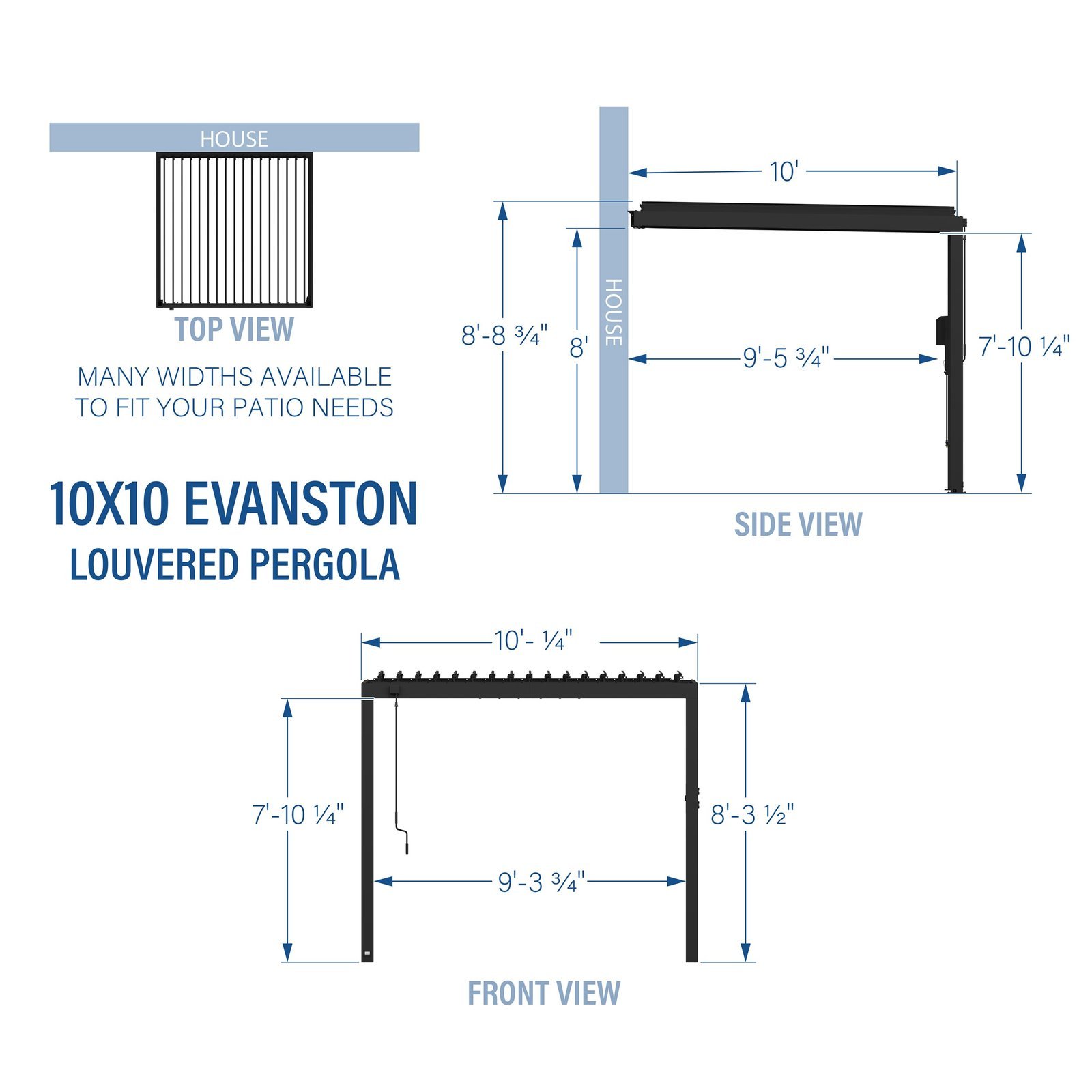

Not necessarily. The dimensions above describe the overall product size stored for this listing. Post spacing, roof overhang, foundation points, and usable interior area can be different. Verify the dimension diagram and manual for this model.
Does this pergola need to be anchored?
Yes. Outdoor structures must be assembled and anchored according to the exact model instructions. Any published performance rating depends on correct installation and the required foundation and anchors.
Can it be installed on an existing patio or deck?
Only if that surface and its supporting structure are suitable for the loads and approved anchoring method. Concrete thickness, reinforcement, edge distance, deck framing, condition, and local code may affect the answer.
Do I need a permit?
Permit, setback, engineering, and HOA requirements vary by location and installation. Check with the authority having jurisdiction before ordering or starting foundation work.
Documents & Assembly
Evanston 10 × 10 Wall-Mounted Louvered Pergola · Model 2407169
Specification
Overview
| Weight | 433.21 lbs |
|---|---|
| Dimensions | 120.1 × 120.32 × 101.6 in |
| Brand | Backyard Discovery |
| Model Number | 2407169 |
| Assembled Dimensions | 120.32 W × 120.1 D × 101.6 H in |
| Product Weight | 433.21 lbs |
| Material | Powder-Coated Galvanized Steel |
| Roof Type | Adjustable Louvered Roof |
| Wind Rating | Up to 100 mph when installed and anchored as directed |
| Snow Load | Up to 2,000 lbs / 12 in. of snow |
| Drainage | Integrated gutters and downspouts with gutter guards |
| PowerPort | 3 electrical outlets + 3 USB ports; power source not included |
| Installation | Wall-mounted; permanently attaches to the house; professional consultation recommended |
| Manufacturer Warranty | 5-Year Limited Warranty |

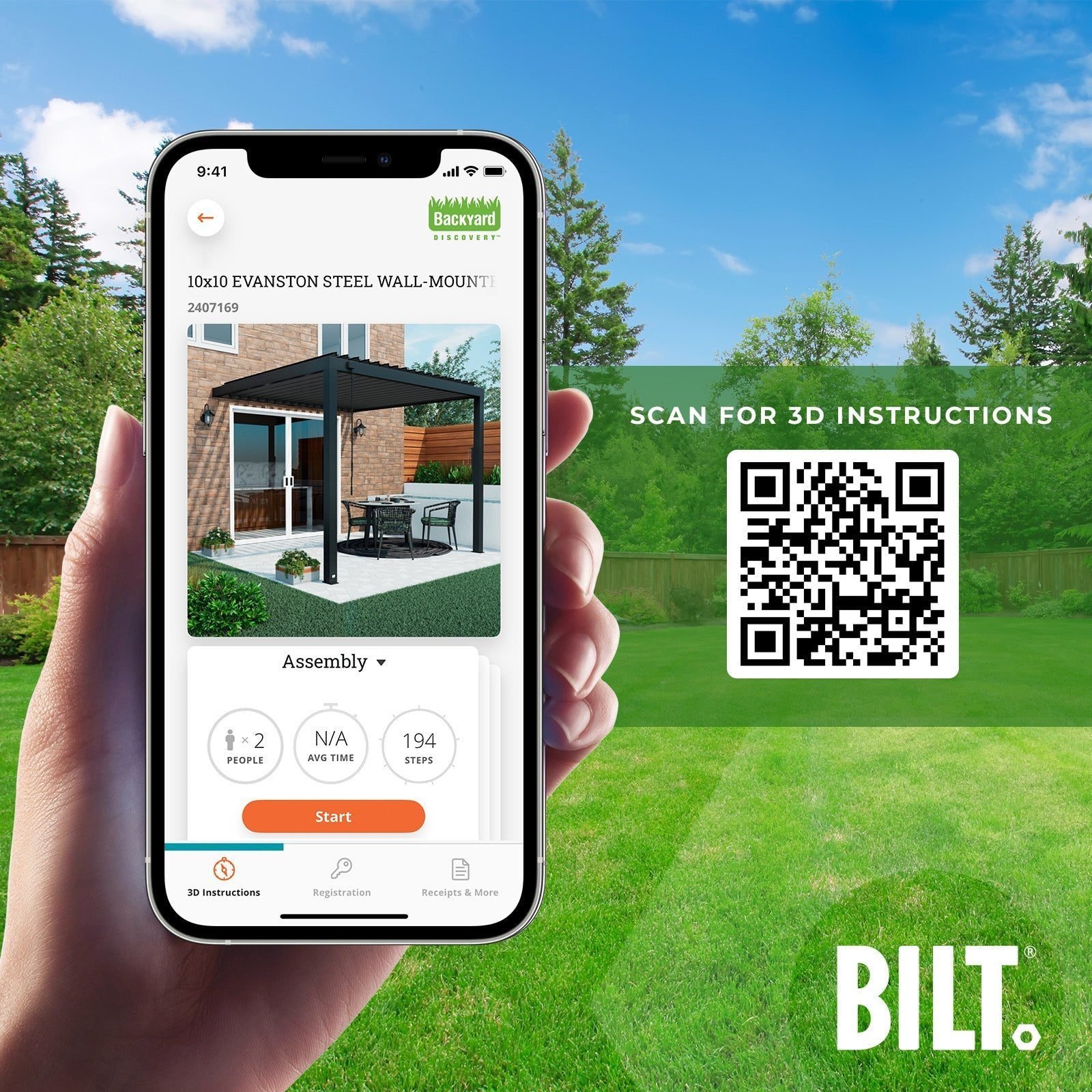

| Assembly | Pre-fabricated and pre-drilled; BILT® guided assembly |
| Coverage Area | Approx. 100 sq. ft. |
| Installation Type | Wall-Mounted |
| Roof Operation | Manual wand-operated louvers |
| Color / Finish | Black powder-coated finish |
