Fusion Flame Modular Patio Kitchen & Cooking Station
Delivery & Installation

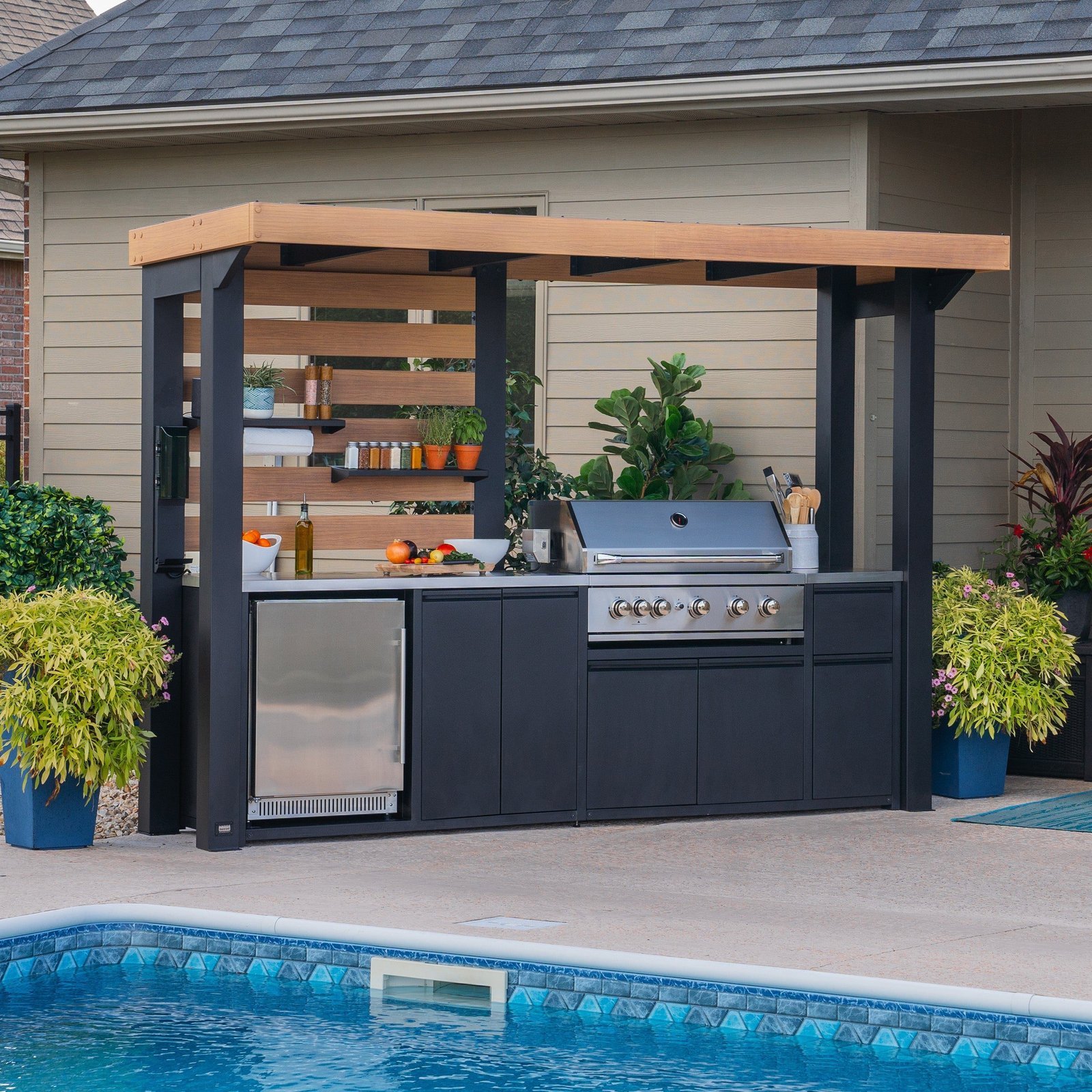

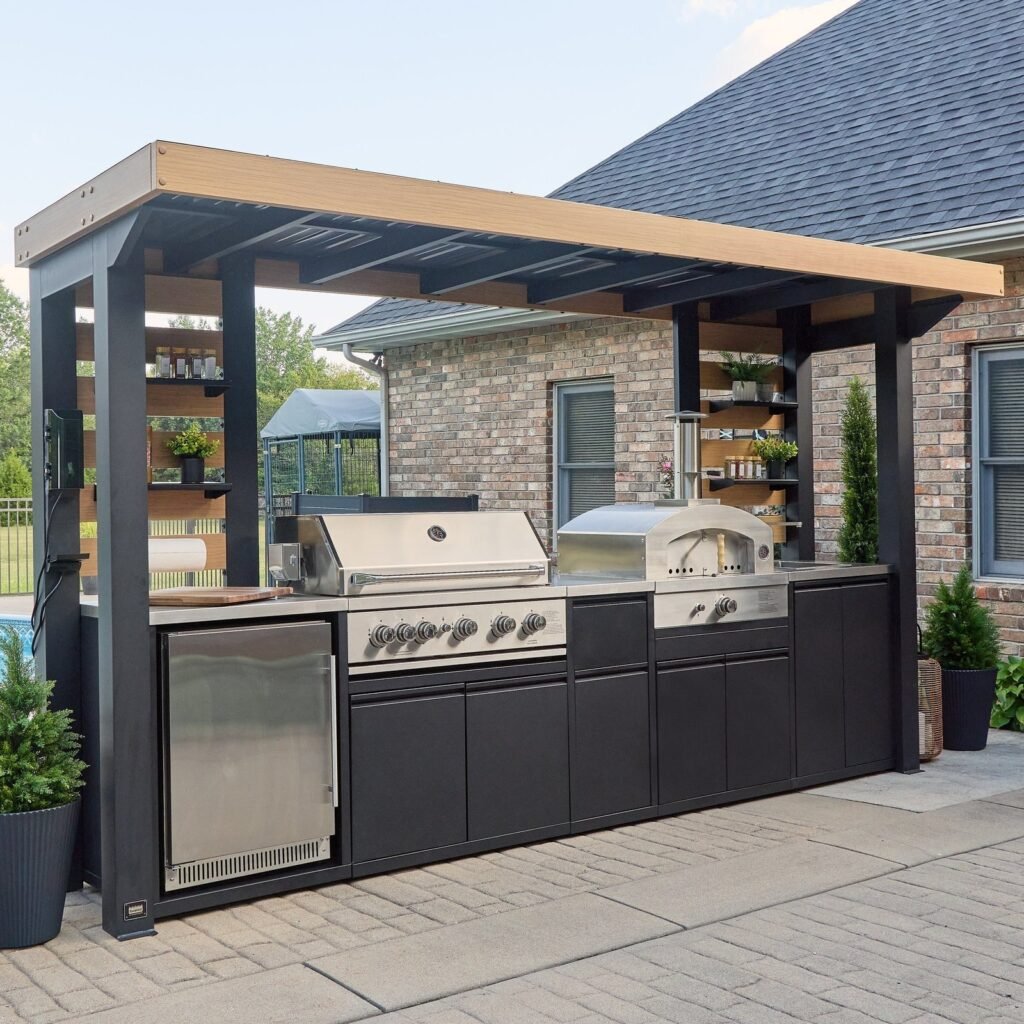

Backyard Discovery Fusion Flame 2304079-series outdoor kitchen with stainless steel grill and countertops, outdoor-rated refrigerator, steel cabinets, full steel roof, PowerPort™, and all-weather rated construction. Sold by True Yard Buildings LLC.
Original price was: $4,799.00.$3,999.00Current price is: $3,999.00.
Description
Fusion Flame Modular Patio Kitchen & Cooking Station

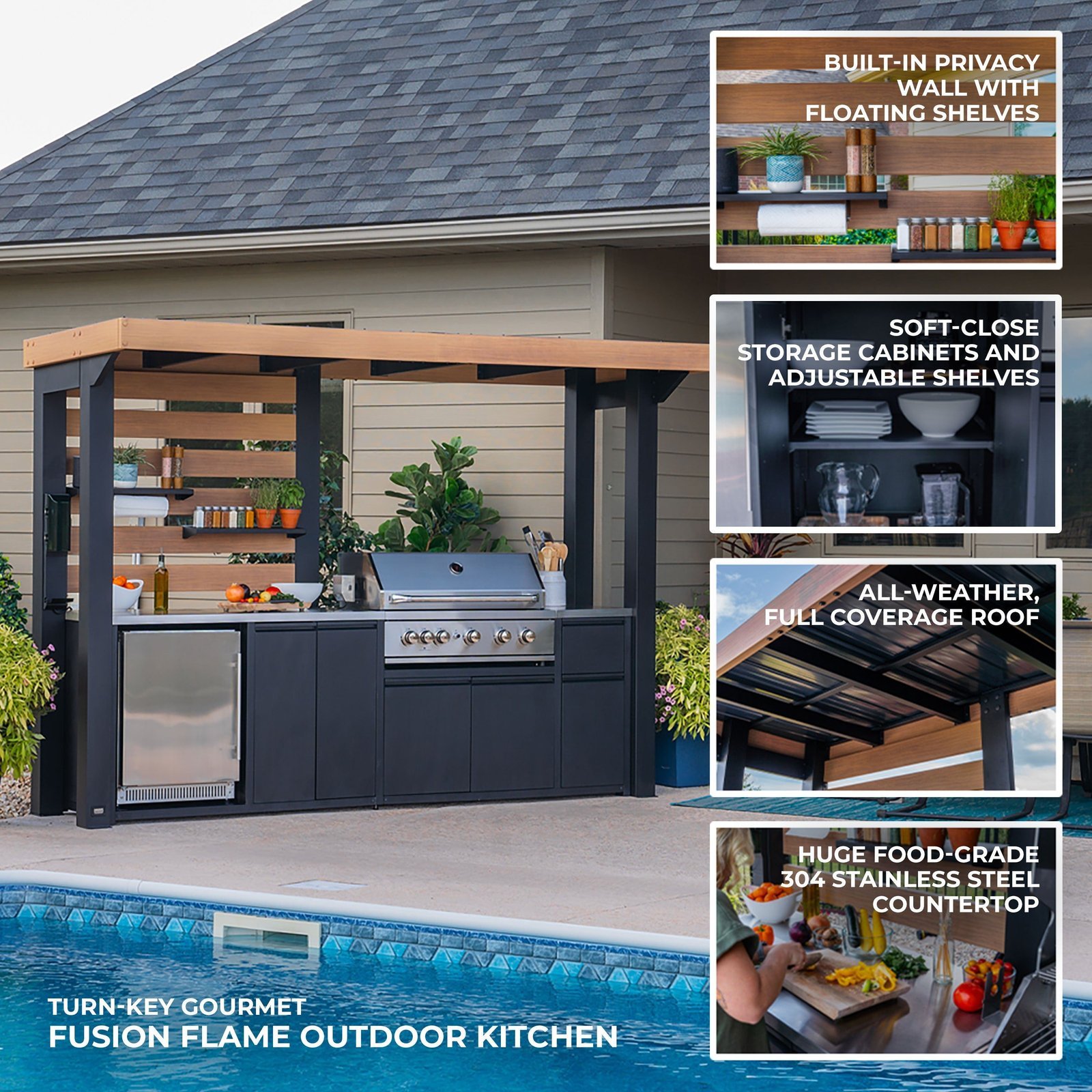

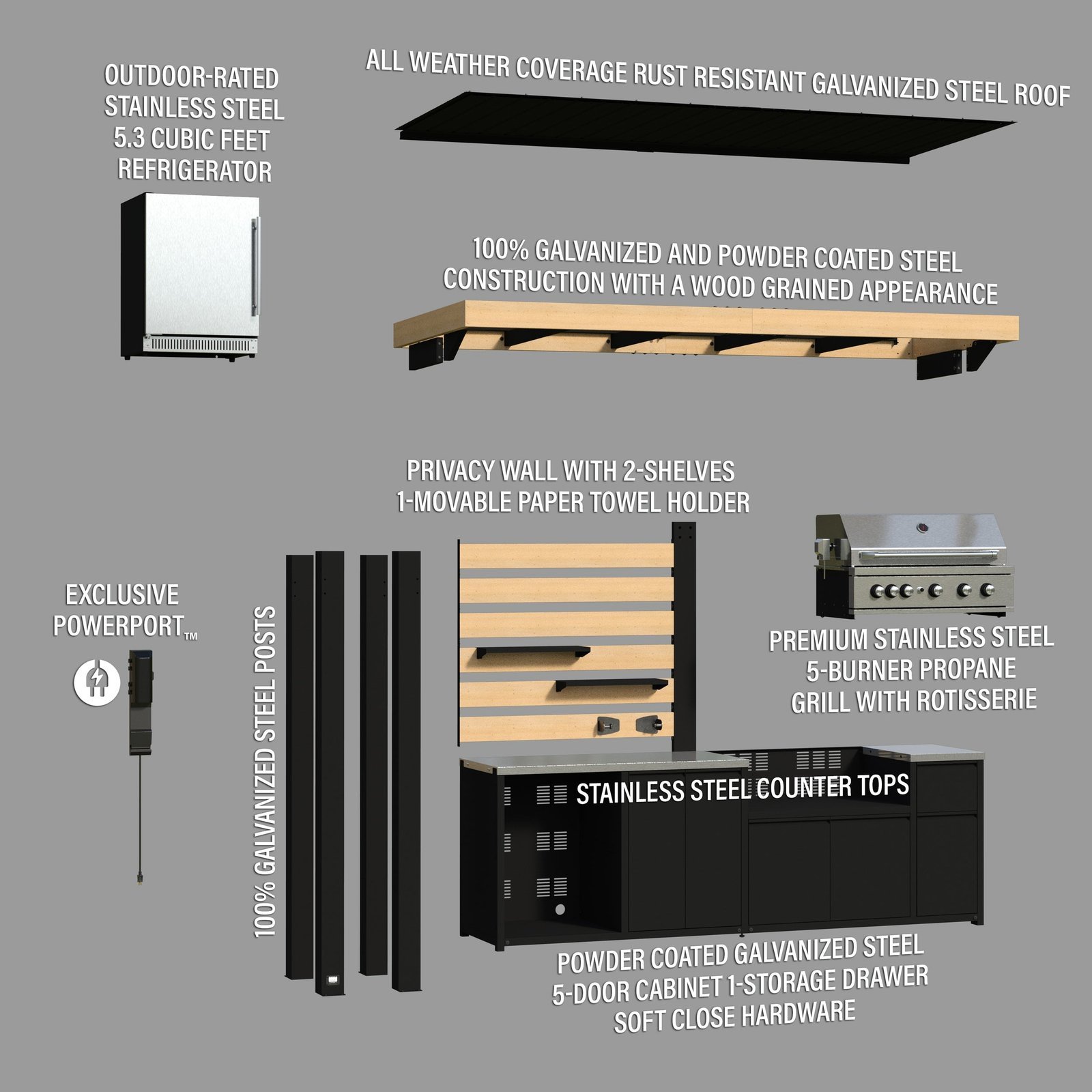

The Backyard Discovery Fusion Flame is a powder-coated galvanized steel outdoor kitchen with a full roof, stainless steel cooking and prep surfaces, outdoor-rated refrigeration, integrated storage, and built-in electrical convenience.
Key Features
- Powder-coated galvanized steel structure with wood-grain coated accents

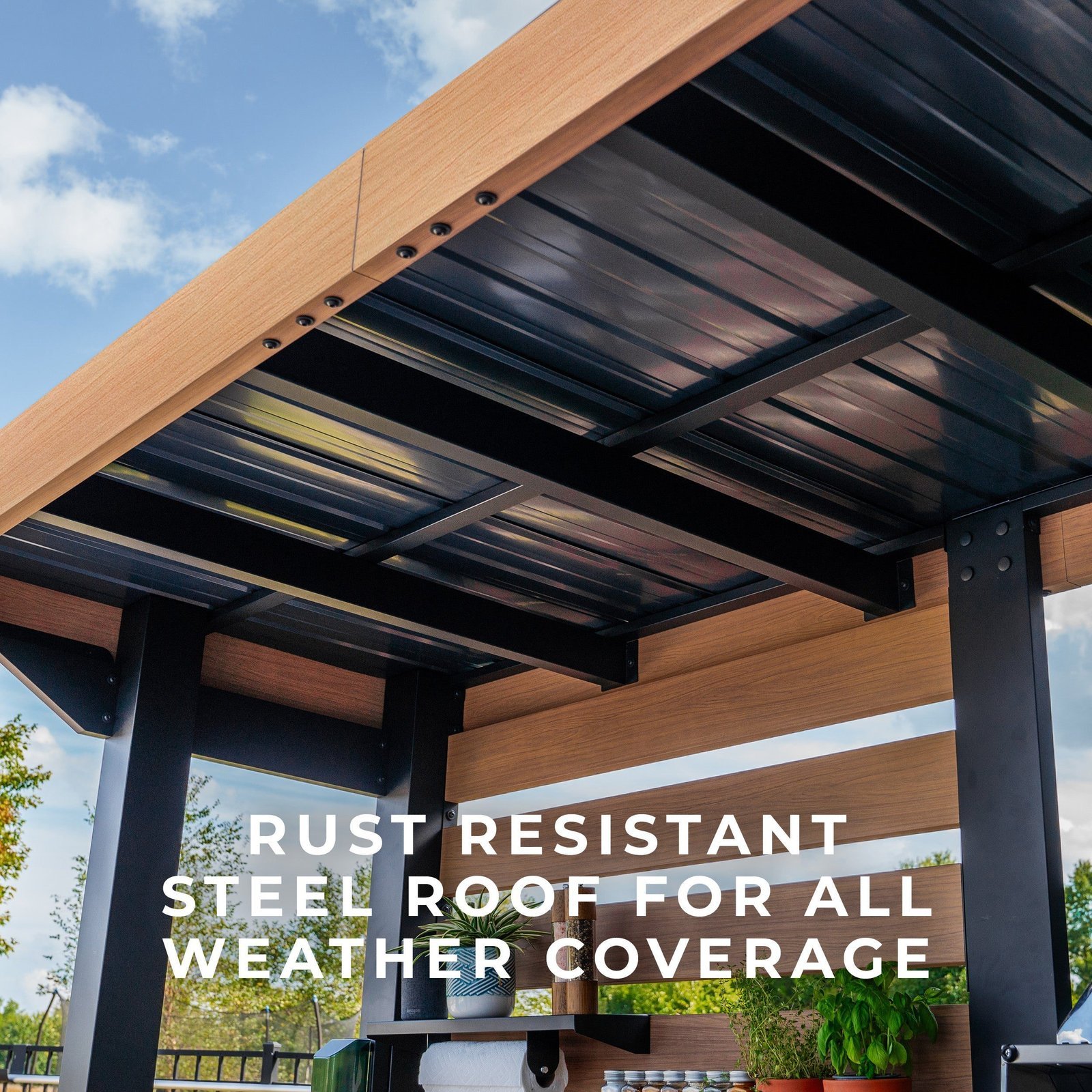

- Heavy-duty galvanized steel full roof

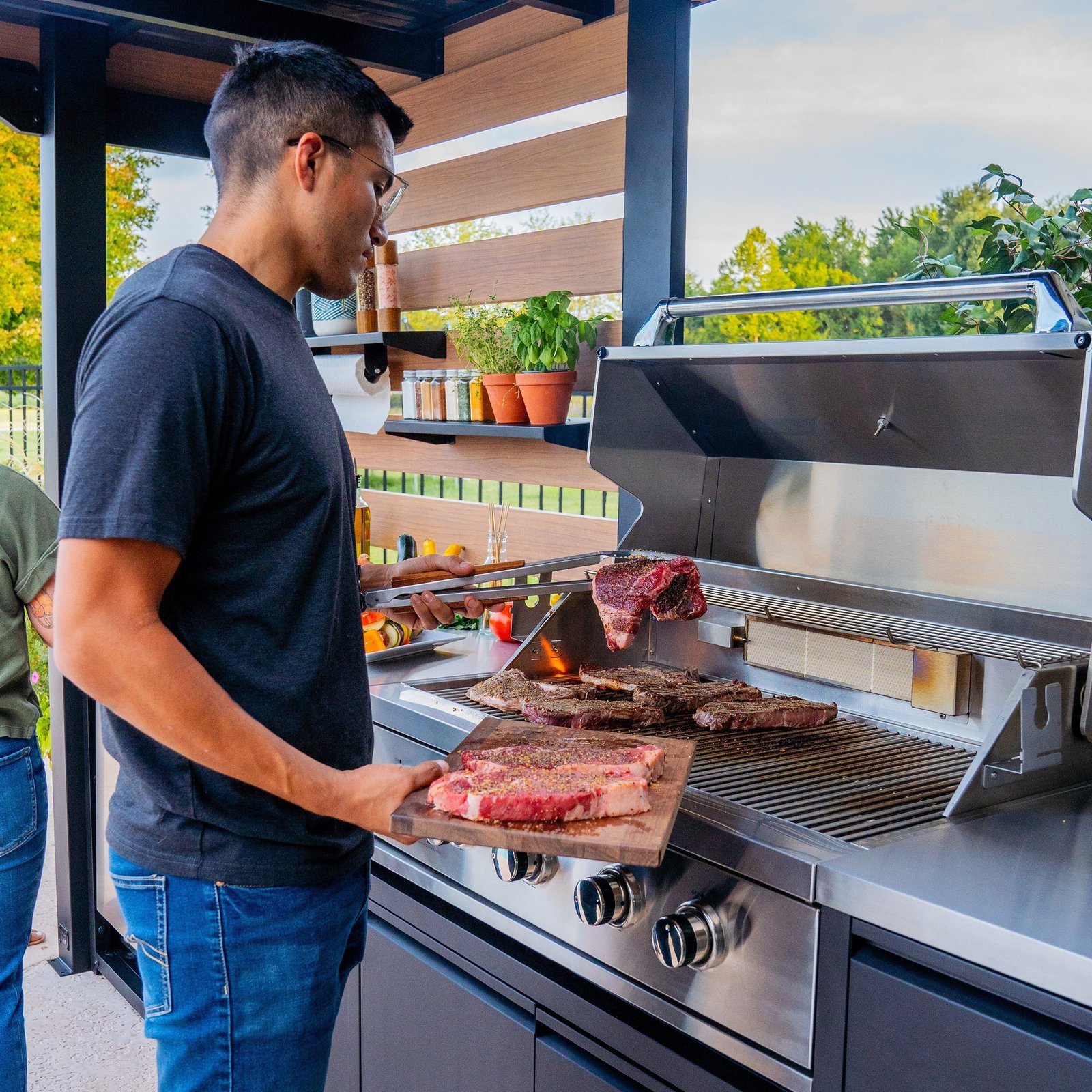

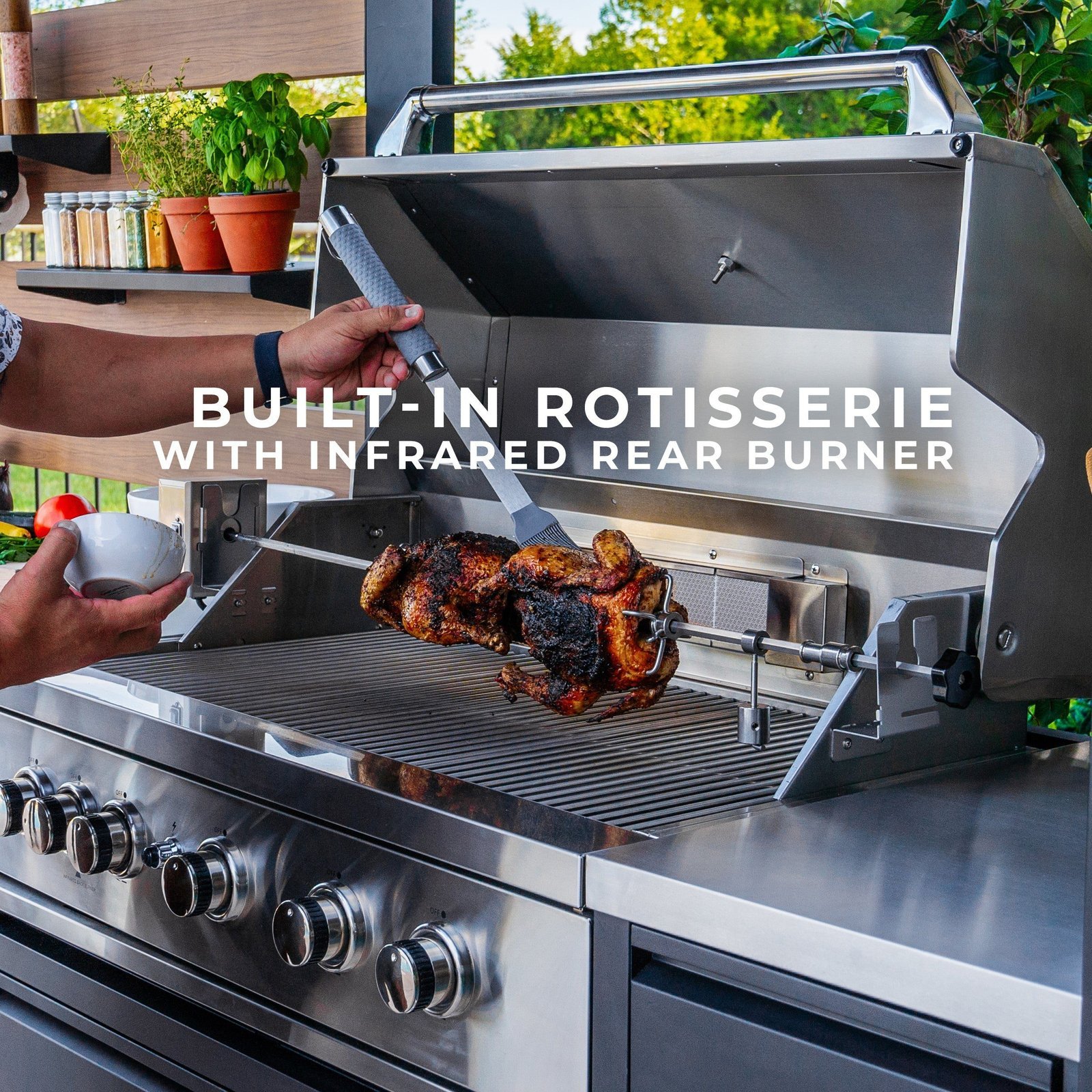

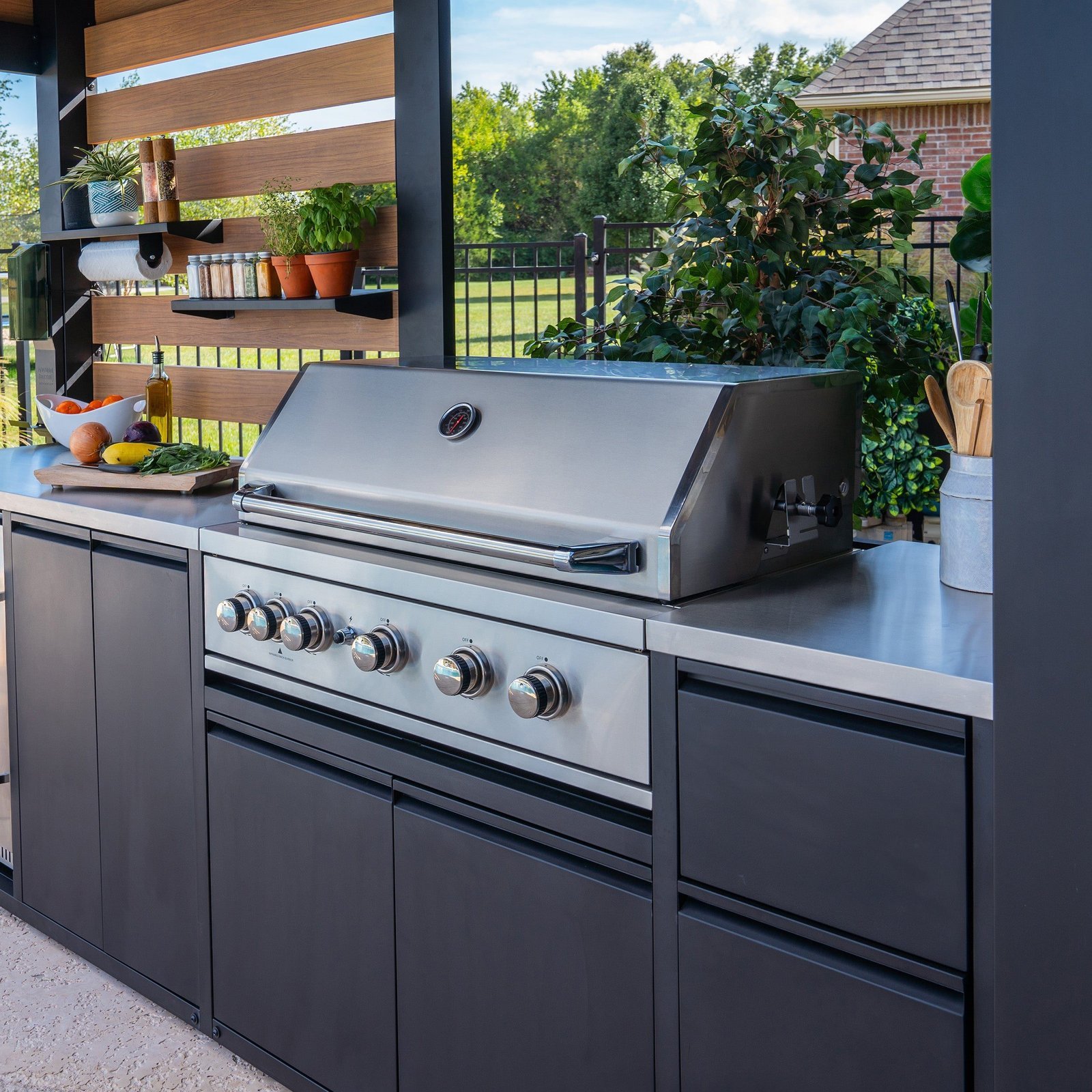

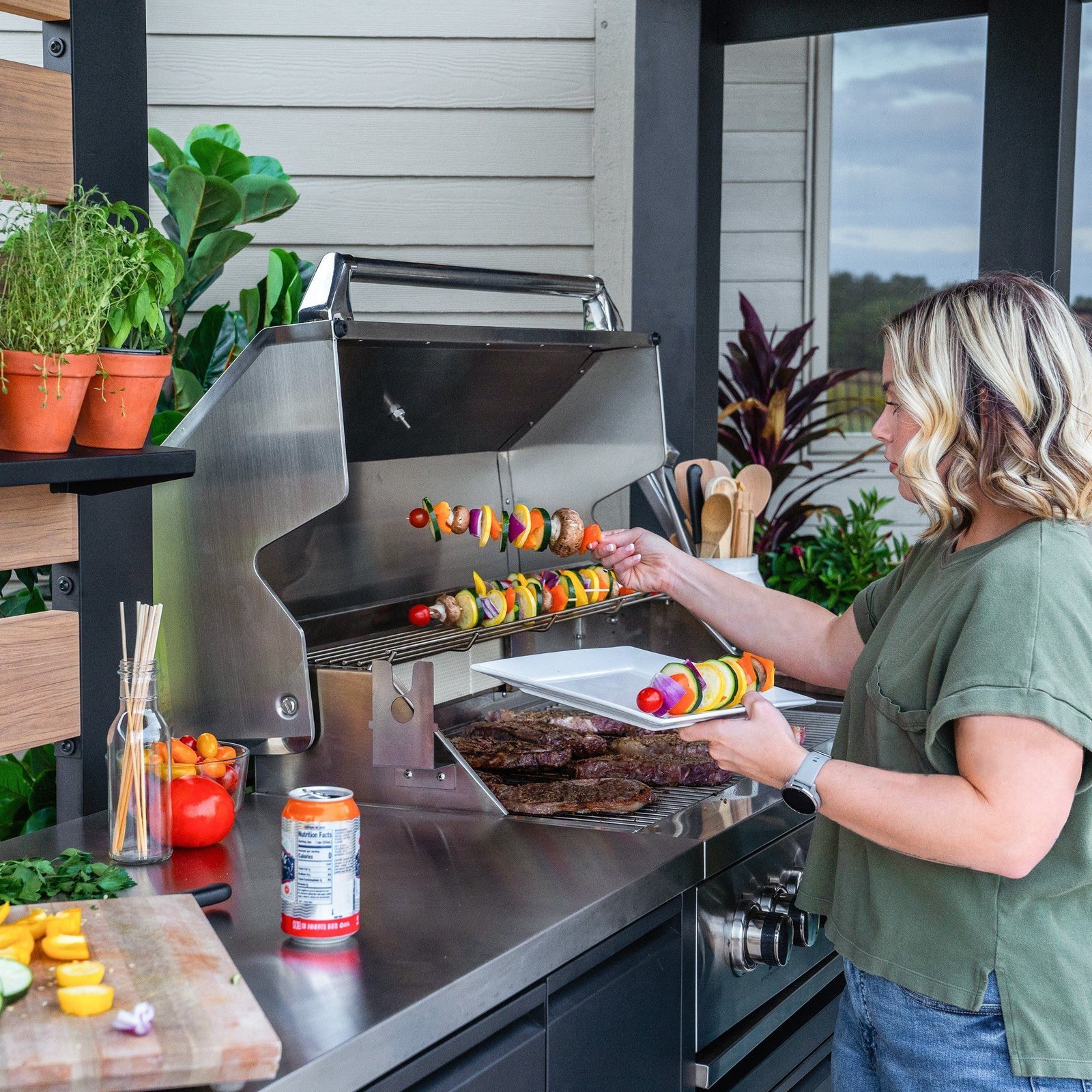

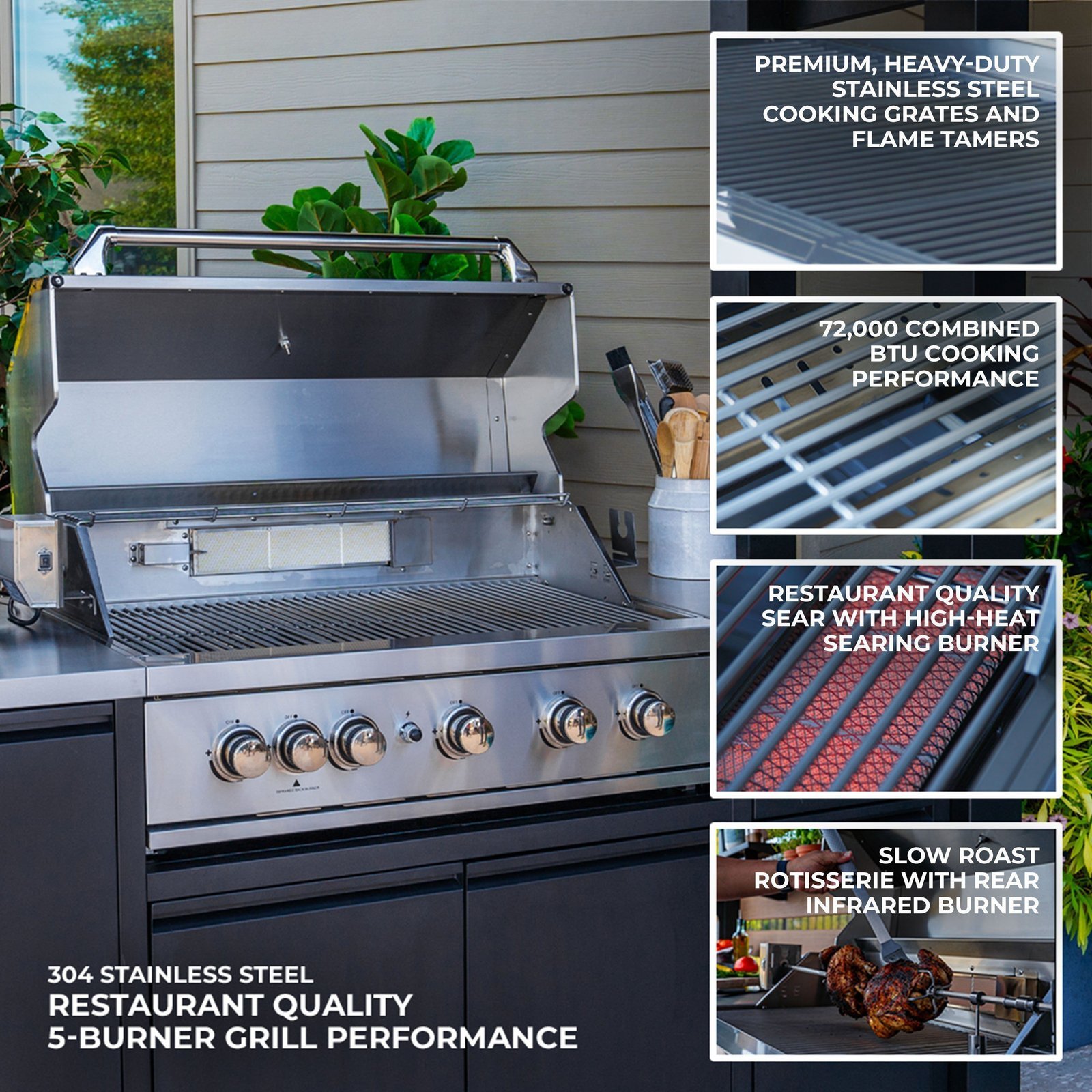

- 304 stainless steel grill with 72,000 BTU total cooking performance, including tube burners, searing burner, and rear rotisserie burner
- Approximately 648 sq. in. main plus 198 sq. in. secondary cooking surface

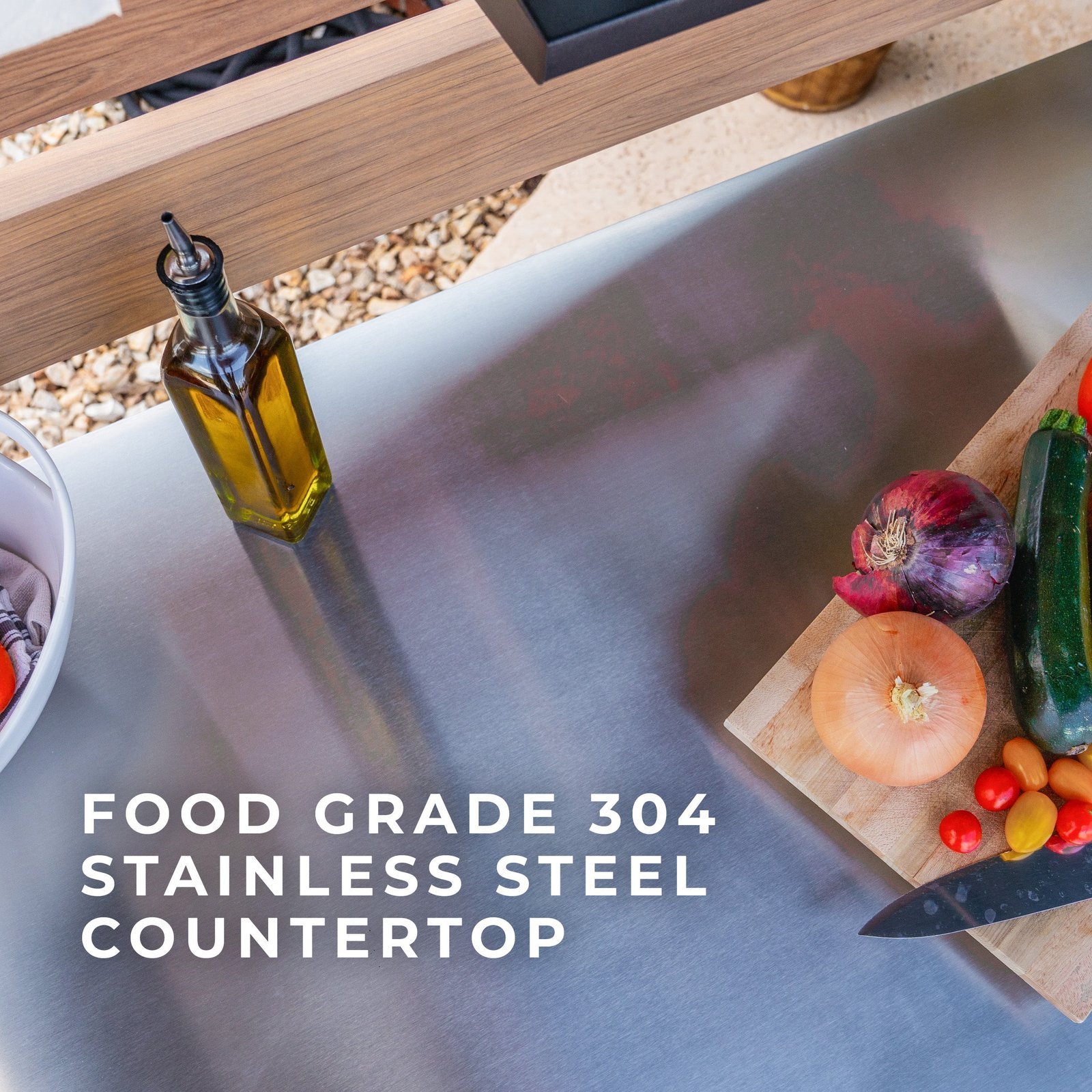

- Approximately 13.3 sq. ft. of food-grade 304 stainless steel countertops

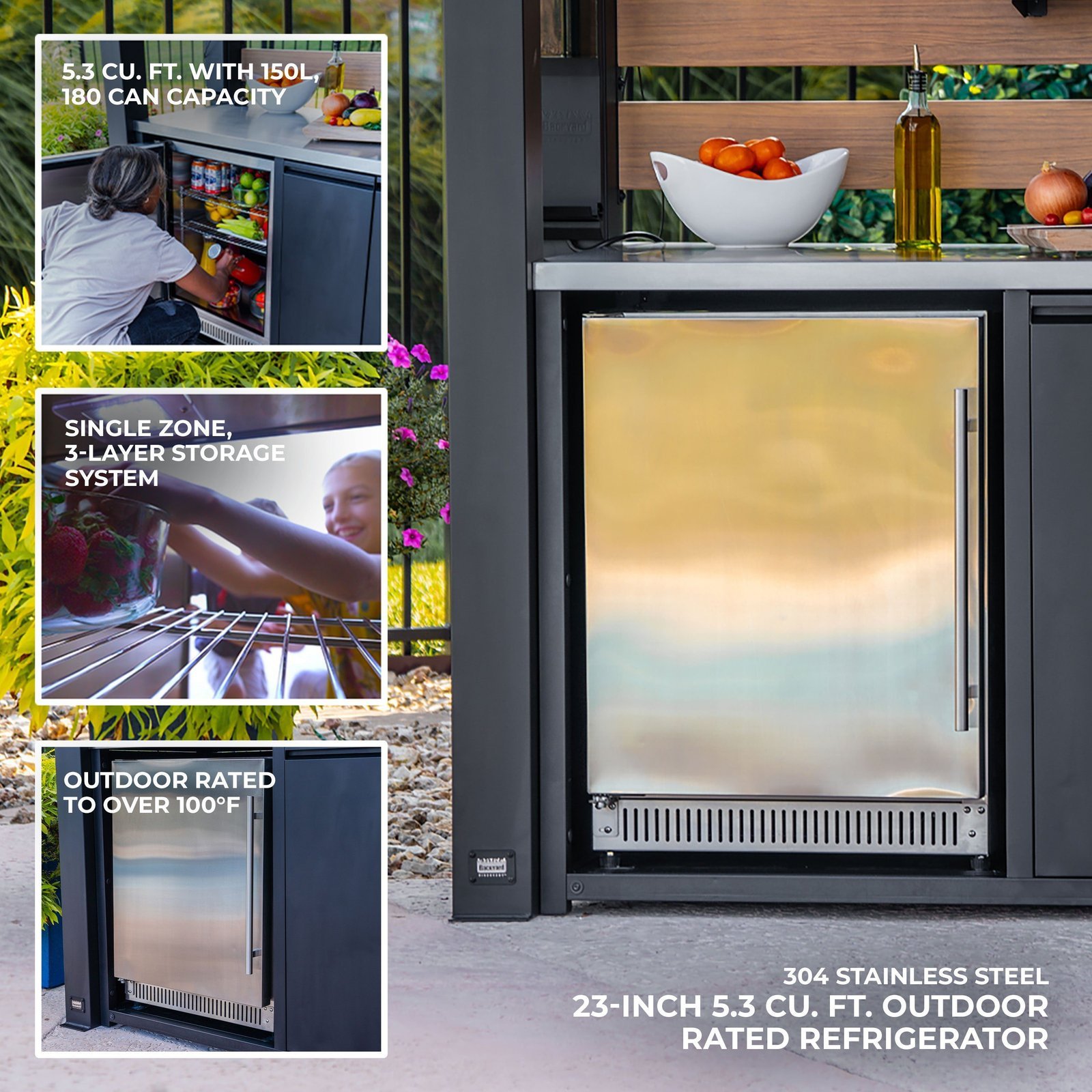

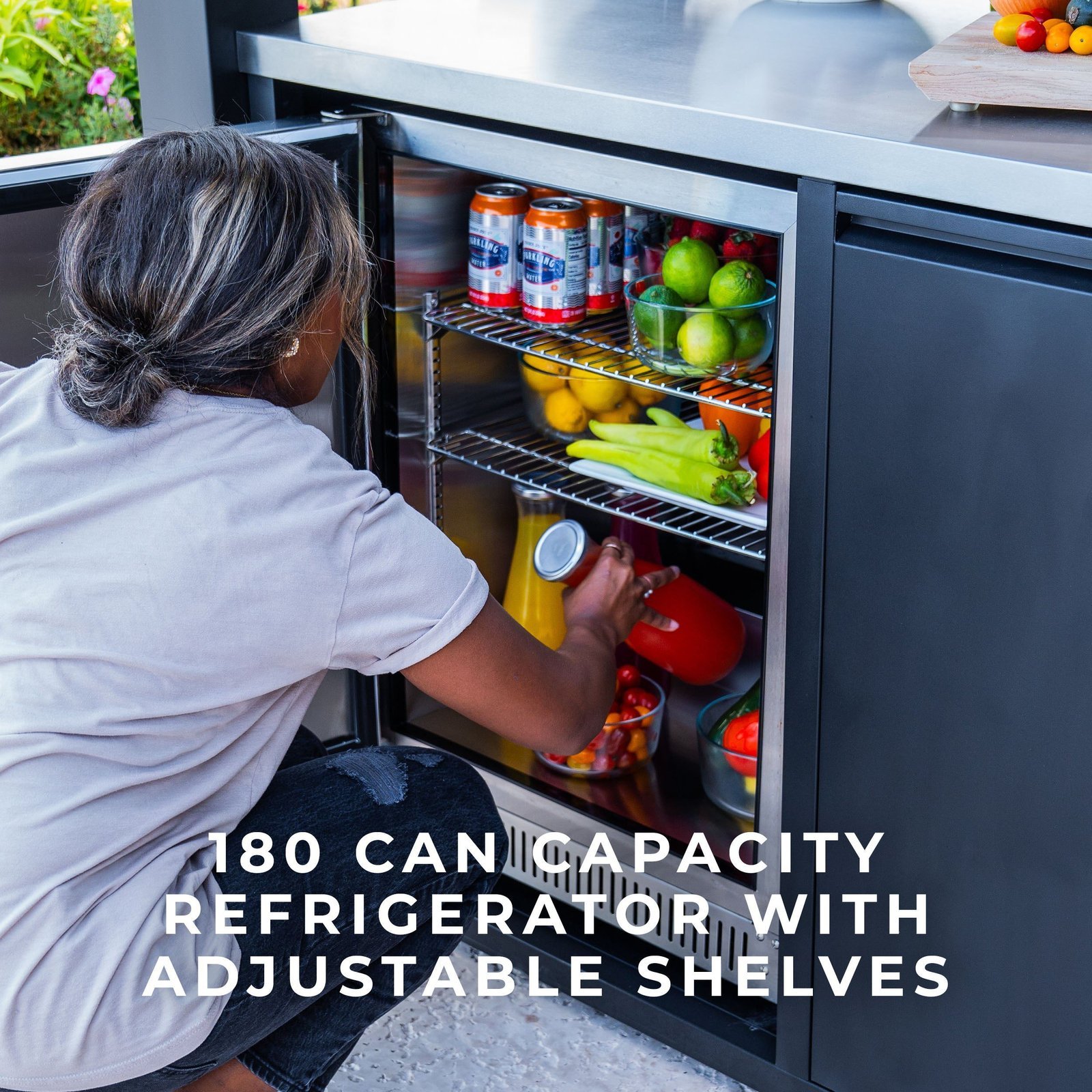

- 5.3 cu. ft. / 150 L outdoor-rated stainless steel refrigerator with LED lighting

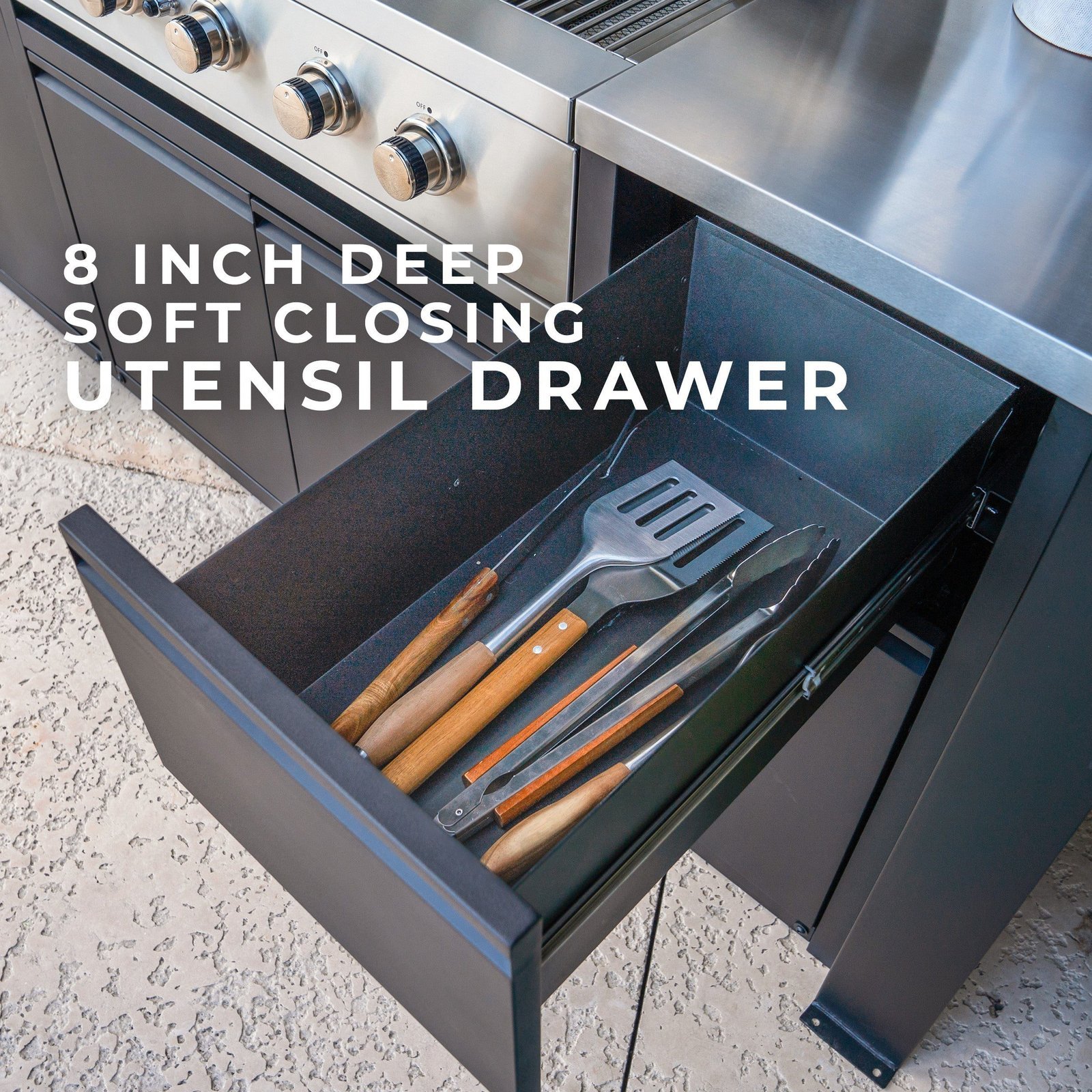

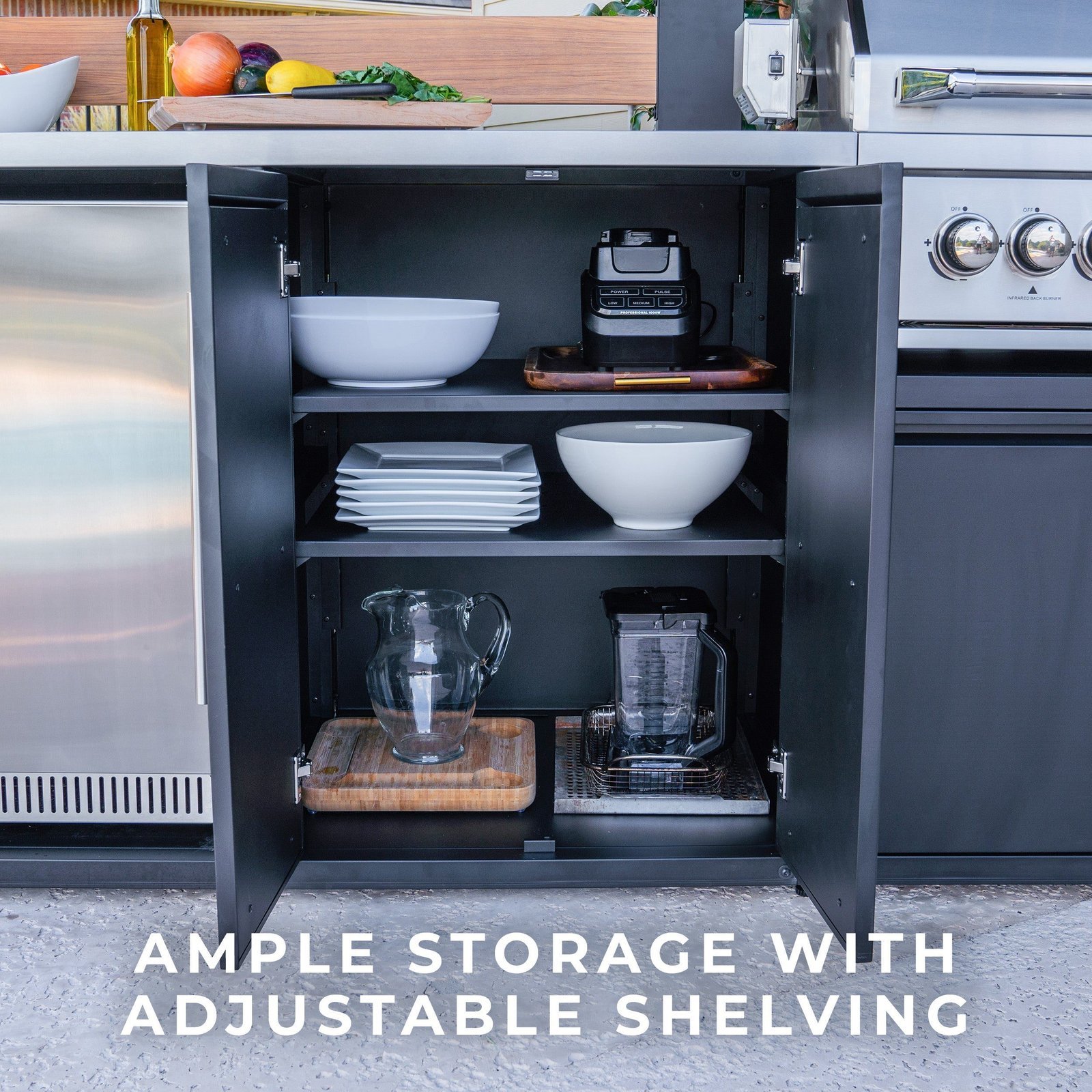

- Integrated steel cabinets with soft-close hinges and drawer slides

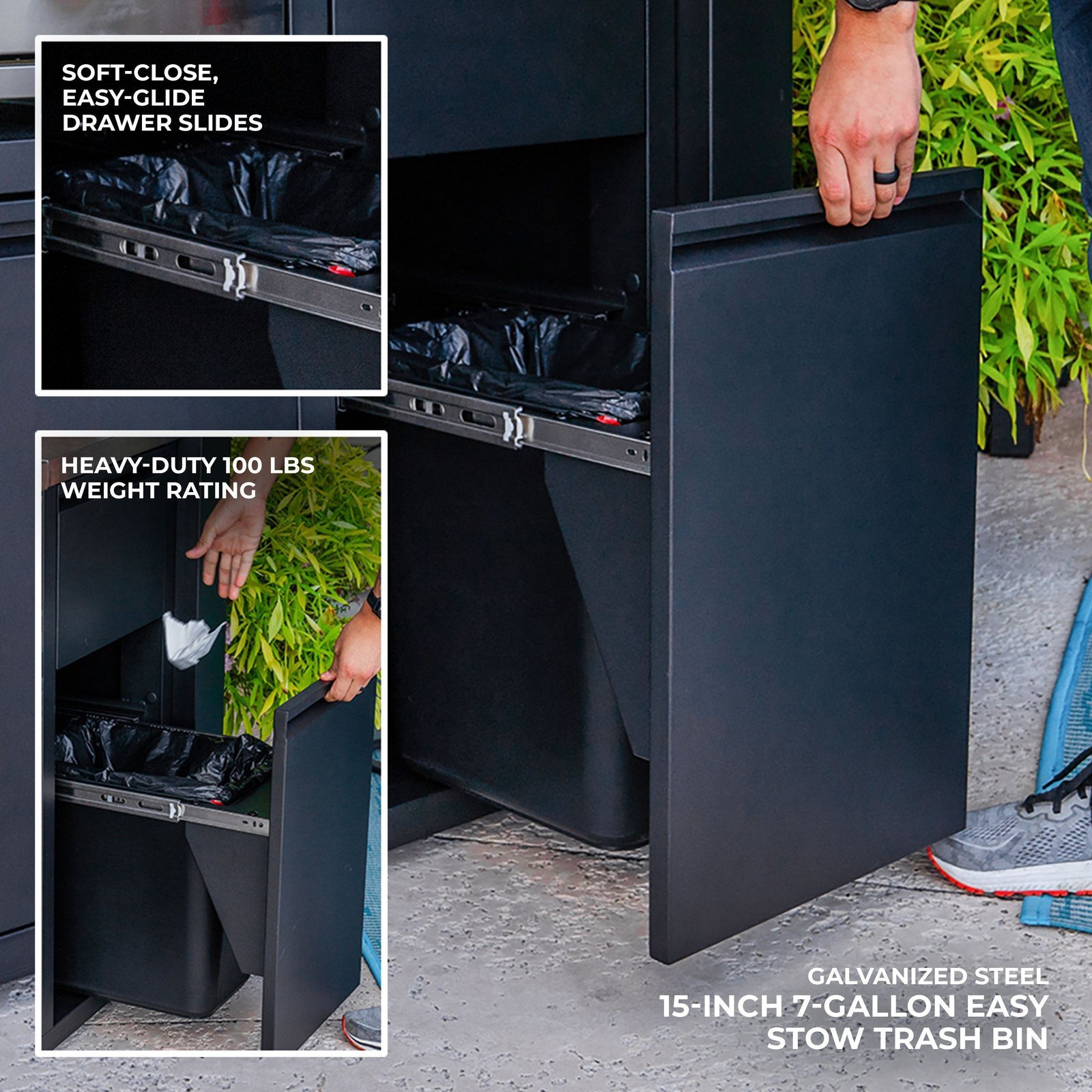

- 7-gallon roll-out trash bin

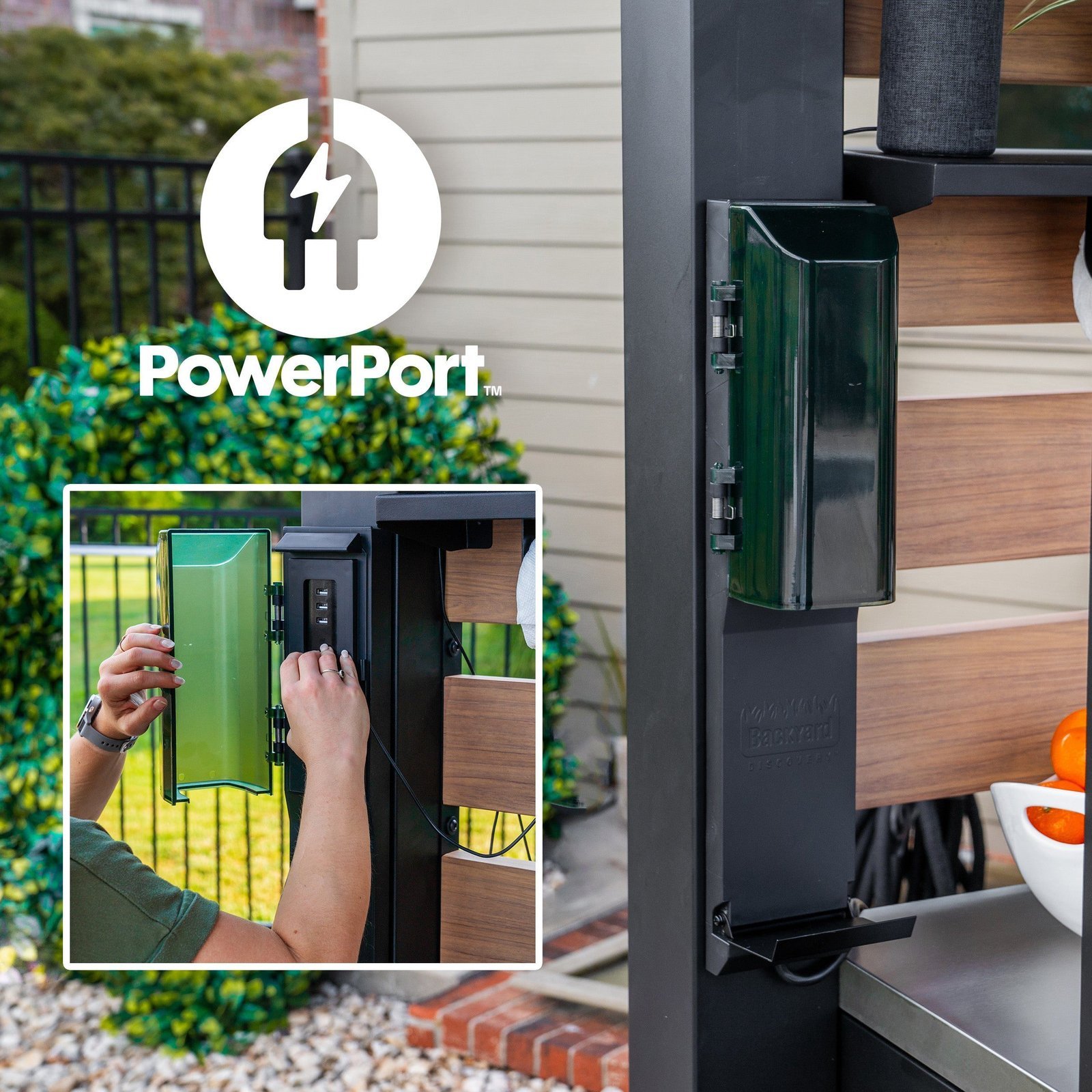

- PowerPort™ electrical convenience
- Pro-Tect™ tested for up to 2,100 lb of roof load / 30 in of snow and winds up to 100 mph when anchored as directed
- BILT® guided assembly
- 5-year manufacturer warranty
Assembly & Site Planning
Install on a suitable level, load-bearing outdoor surface and follow the Backyard Discovery instructions for the 2304079 model family. Confirm ventilation, appliance clearances, electrical requirements, anchoring, and local requirements before use.
Brand & Seller Information
Brand/Manufacturer: Backyard Discovery. Manufacturer model/item family: 2304079 / 2304079B / 2304079D; store media corresponds to the 2304079-series configuration. Sold by: True Yard Buildings LLC, an independent retailer/seller.
Quick Specifications
| Product | Fusion Flame Modular Patio Kitchen & Cooking Station |
|---|---|
| Brand / Manufacturer | Backyard Discovery |
| True Yard Buildings SKU | TYB-KIT-FUSION-FLAME-MODULAR-KITCHEN |
| Overall dimensions | See the current product diagram and manufacturer manual |
| Product category | Premium Patio Kitchens |
| Delivery | Curbside freight delivery; review the current shipping and freight policies |
| Seller | True Yard Buildings LLC, an independent retailer/seller |
Overall dimensions are not the same as usable space, post spacing, foundation dimensions, or required safety clearance. Confirm every measurement in the current manual for this exact model before preparing the site.
Before Delivery & Installation
- Plan circulation and clearances: Mark doors, drawers, cooking zones, seating, walkways, ventilation paths, and every manufacturer-required clearance.
- Confirm utilities: Gas, electrical, and plumbing connections must match the exact appliance requirements and applicable local codes. Use qualified professionals where required.
- Prepare the foundation: Confirm the approved level surface, anchors, drainage, and final position before utility work begins.
- Check delivery access: Measure gates, driveways, turns, and the safe unloading and storage area for large packaged components.
- Review local requirements: Ask the local building department and HOA about permits, setbacks, utilities, inspections, and site-specific requirements.
Use our site preparation and delivery guide before scheduling delivery. Review the anchoring, wind, and snow load guide for weather-performance planning.
Frequently Asked Questions
Are gas, electrical, or plumbing connections included?
Included components vary by product and order. Review the exact listing and manuals, then use qualified local professionals for regulated utility connections.
What clearances are required?
Use the clearances in the current product and appliance manuals. Requirements can vary by fuel type, ventilation, nearby combustible materials, and local code.
Can it be placed on an existing patio?
Only after confirming that the surface, drainage, utilities, anchors, and local requirements are suitable for the exact configuration.
Where can I compare planning considerations?
Start with the Outdoor Structure Planning Center, then follow the current manual for this exact product.
Documents & Assembly
Official resources for Fusion Flame Outdoor Kitchen · Model 2304079 series
Official Backyard Discovery / BILT resources. Links open in a new tab.
Specification
Overview
| Brand | Backyard Discovery |
|---|---|
| Model Number | 2304079 / 2304079B / 2304079D family |

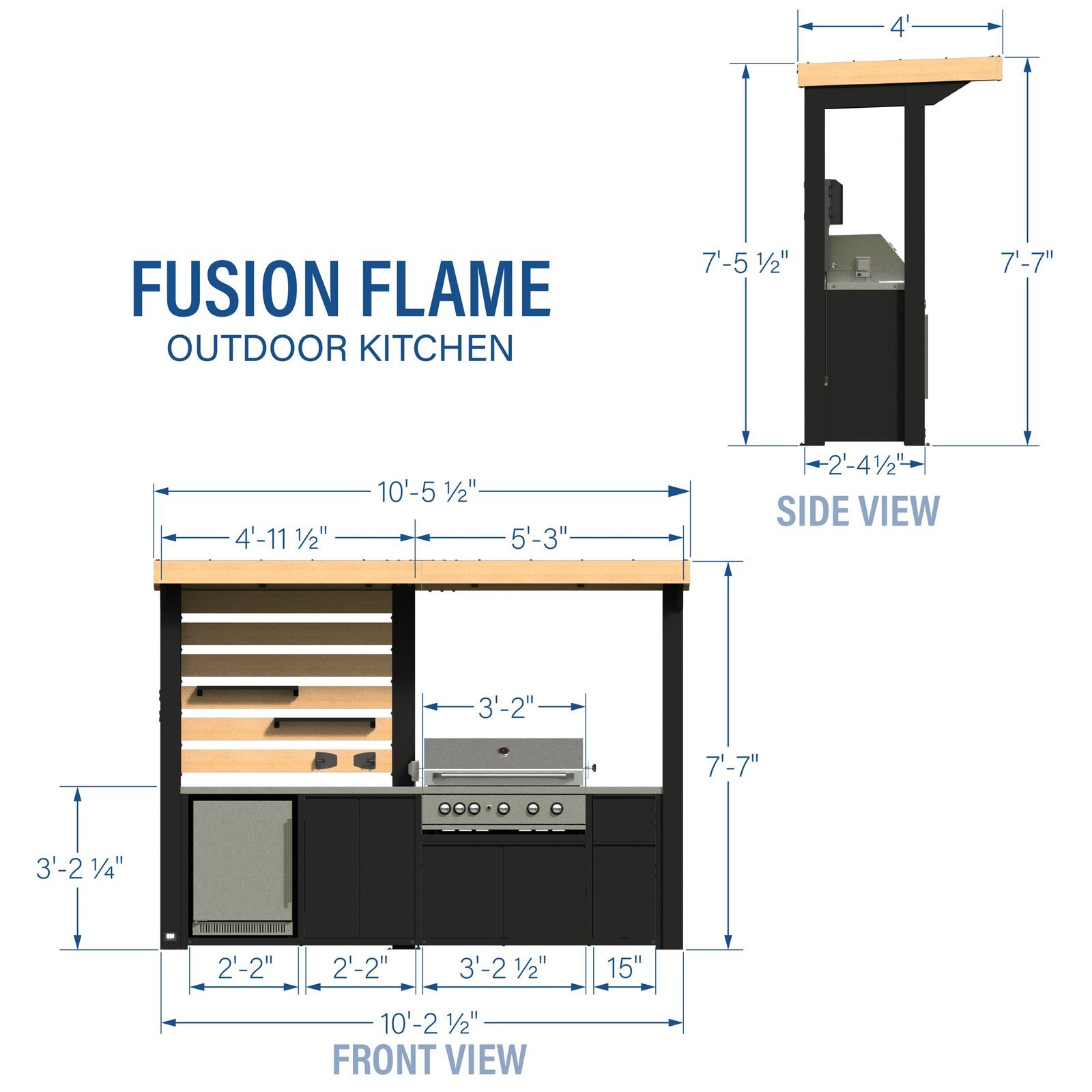

| Assembled Dimensions | 125.5 W × 48 D × 90.94 H in |
| Product Weight | 1060.65 lbs |
| Material | Powder-Coated Galvanized Steel + 304 Stainless Steel Components |
| Roof Type | Heavy-duty galvanized steel full roof |
| Wind Rating | Up to 100 mph when anchored as specified |
| Snow / Roof Load | Up to 2,100 lbs / 30 in snow |
| Grill | 304 stainless steel; 72,000 BTU total cooking performance |
| Cooking Surface | 648 sq. in. main + 198 sq. in. secondary |
| Countertops | Approximately 13.3 sq. ft. food-grade 304 stainless steel |
| Refrigerator | 5.3 cu. ft. / 150 L outdoor-rated stainless steel refrigerator |
| Storage | Steel cabinets with soft-close hardware + 7-gallon roll-out trash bin |
| PowerPort | Integrated electrical convenience; external power source required |
| Manufacturer Warranty | 5-Year Manufacturer Warranty |
| Assembly | Ready to assemble; BILT® guided instructions |
| Anchoring | Must be anchored as specified by Backyard Discovery |
