Evanston 16 ft. x 10 ft. Wall-Mounted Louvered Pergola
Delivery & Installation
Extra-wide 16 x 10 Backyard Discovery wall-mounted galvanized-steel pergola with adjustable louvers, integrated drainage, PowerPort™, 100 mph wind testing, and a snow-load rating up to 3,100 lb when installed as directed. Sold by True Yard Buildings LLC.
$2,549.00
Description
Evanston 16 ft. x 10 ft. Wall-Mounted Louvered Pergola

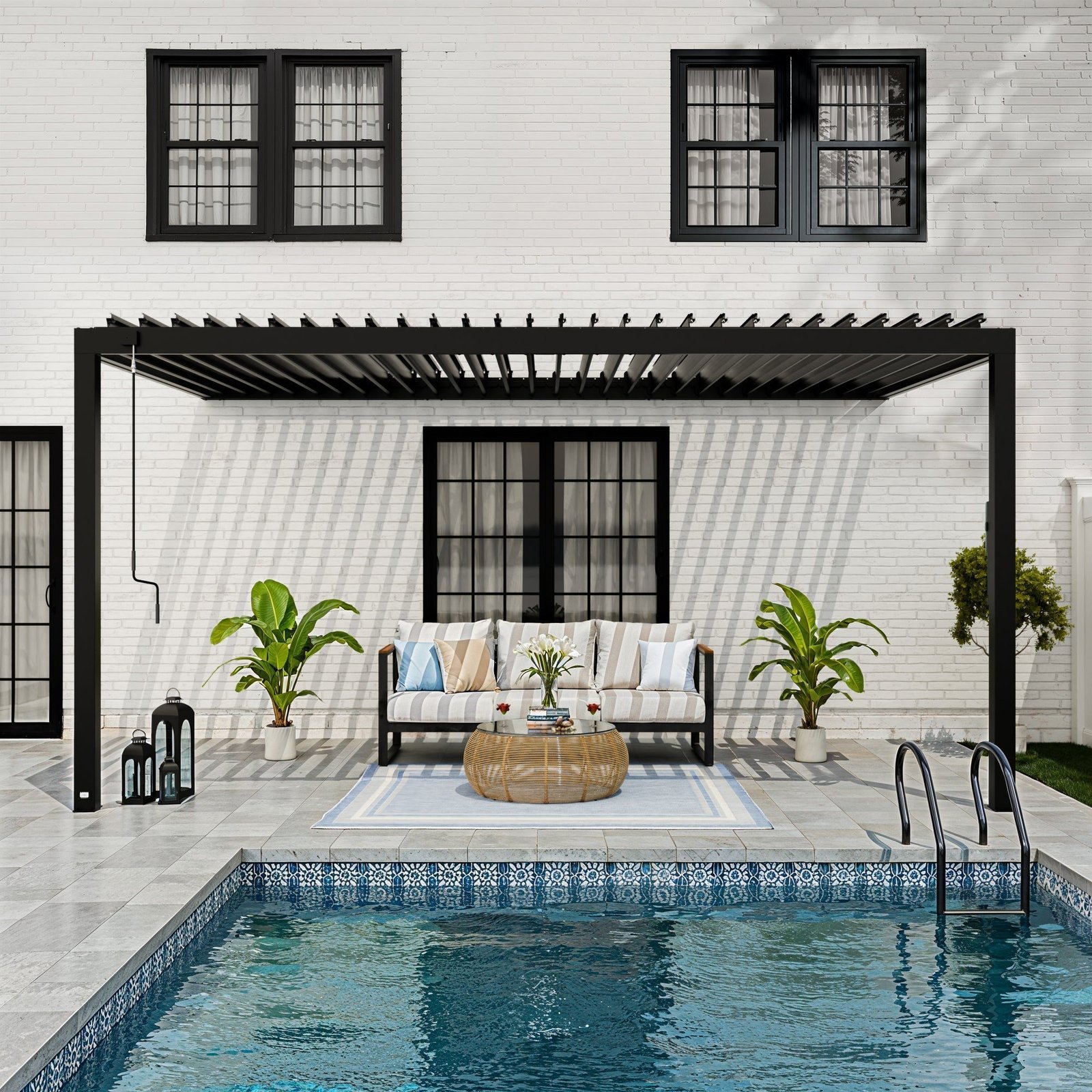

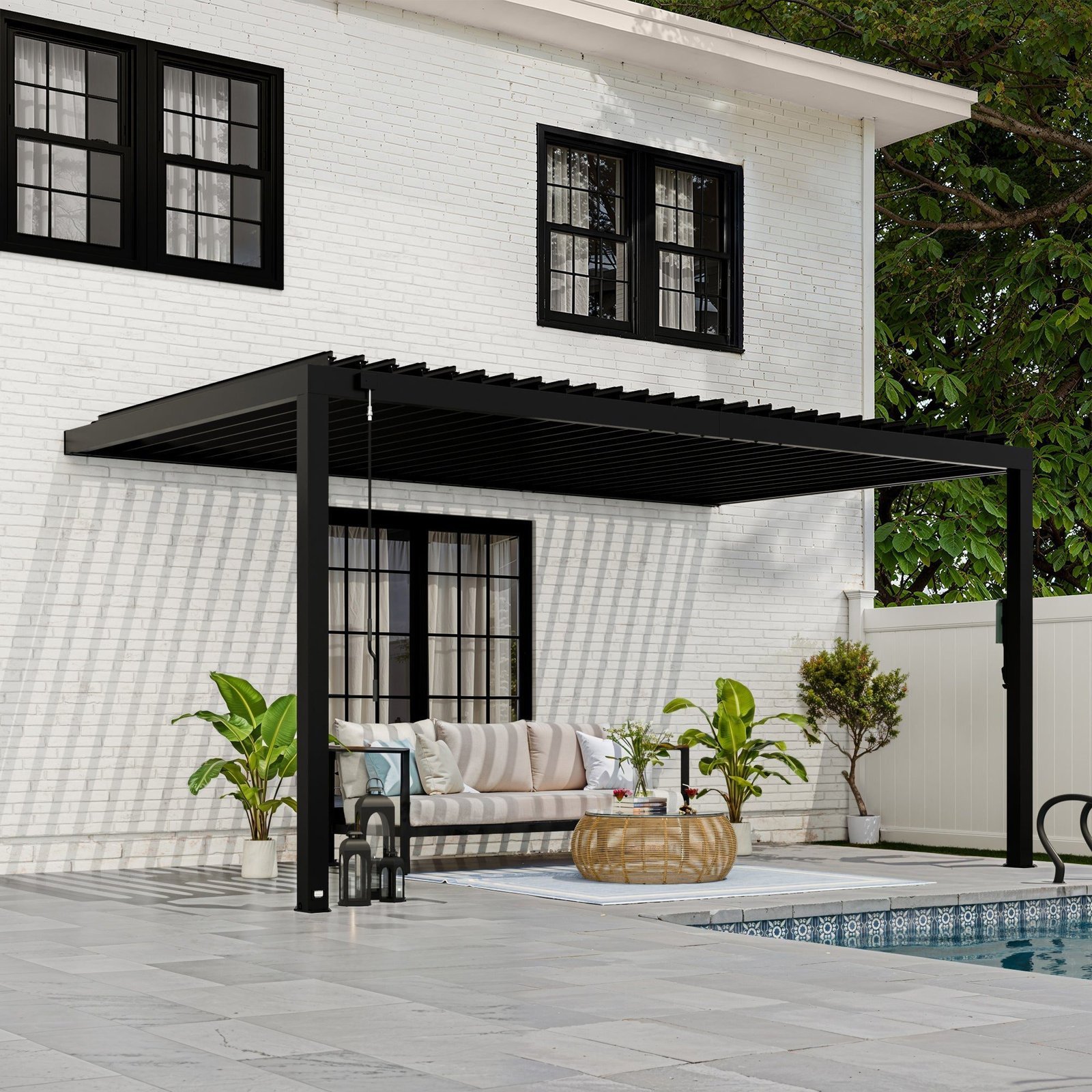

The Backyard Discovery Evanston 16 x 10 is an extra-wide wall-mounted louvered pergola designed to extend a substantial covered patio area directly from the home. Its black powder-coated galvanized-steel frame and adjustable roof louvers provide flexible control over sunlight, shade, airflow, and rain protection.

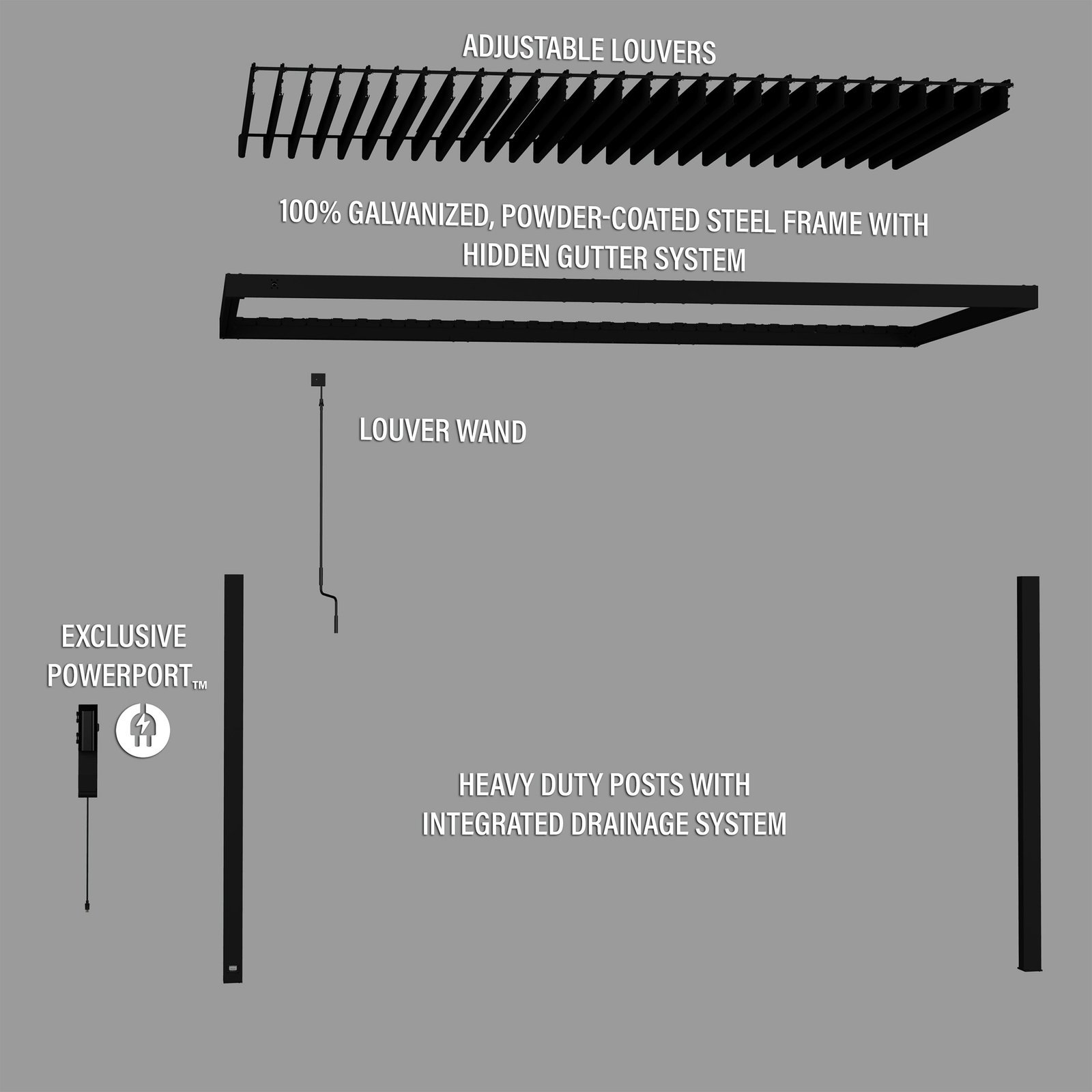

Key Features
- 16 x 10 ft. nominal wall-mounted layout with approximately 160 sq. ft. of coverage
- Powder-coated galvanized-steel construction with a black finish

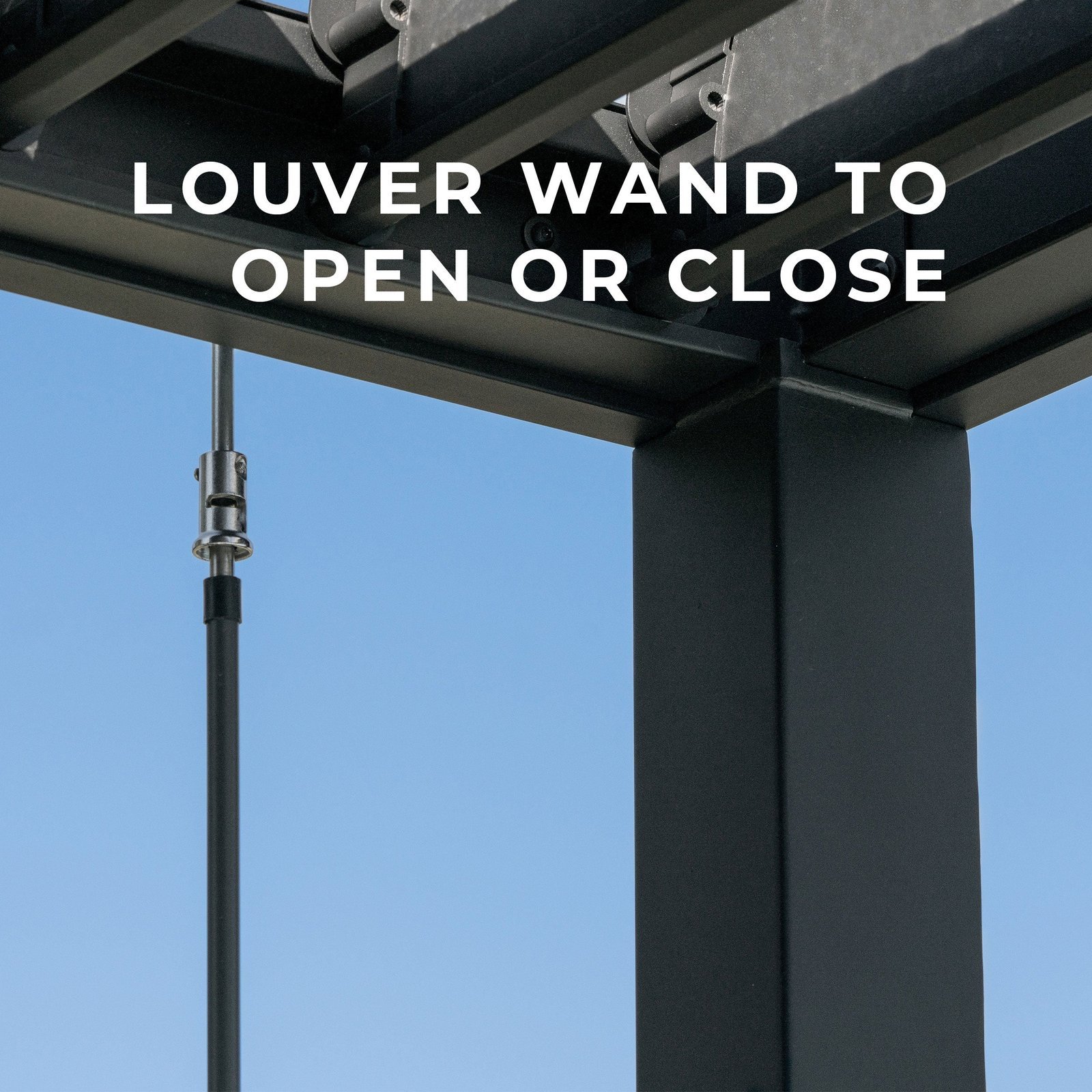

- Adjustable louvered roof operated with the included manual wand
- Integrated gutters, concealed downspouts, and gutter guards
- Pro-Tect™ tested for winds up to 100 mph when installed as directed
- Snow-load rating up to 3,100 lbs or approximately 12 in. of snow
- PowerPort™ with 3 electrical outlets and 3 USB ports
- 5-year limited manufacturer warranty
Adjustable Roof & Drainage

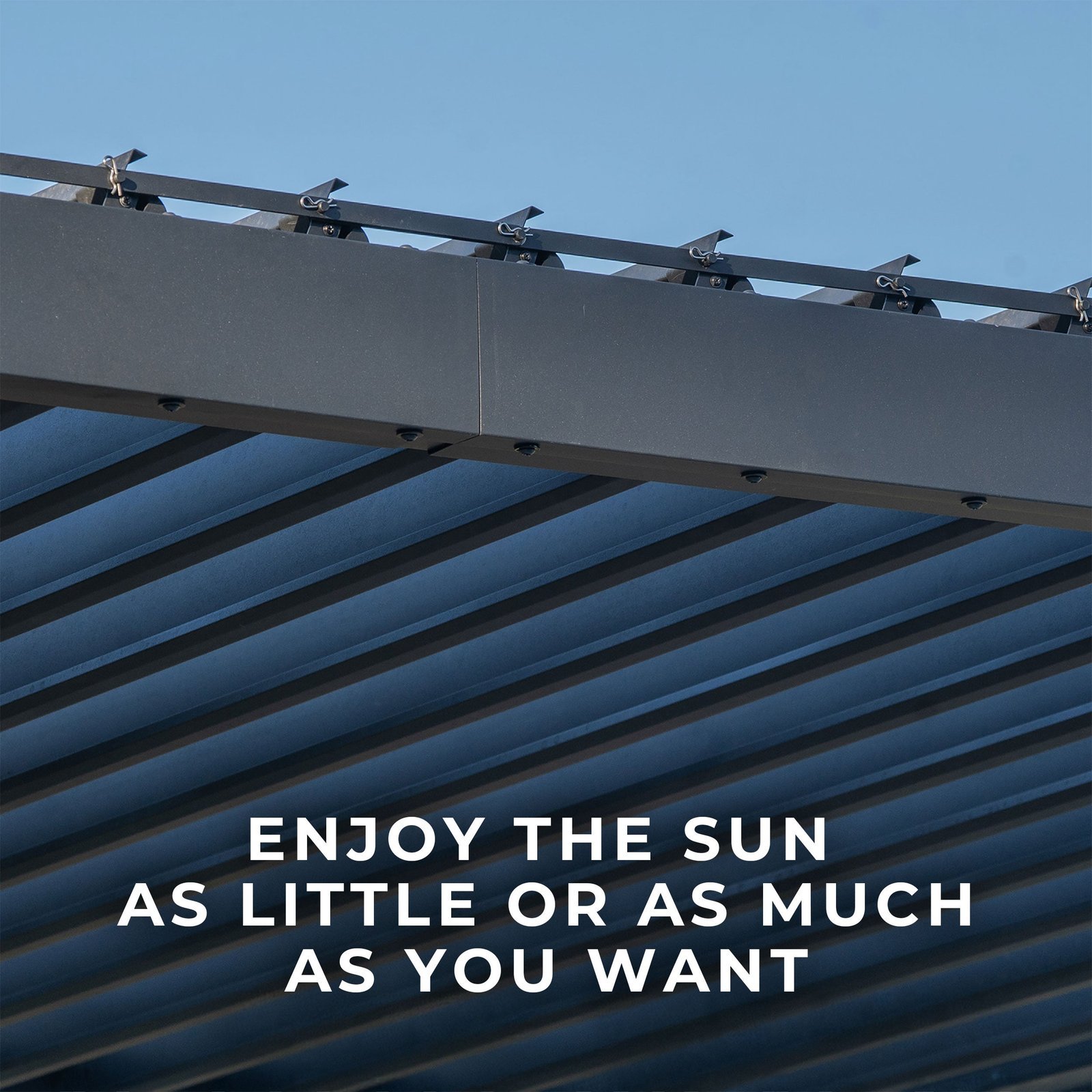

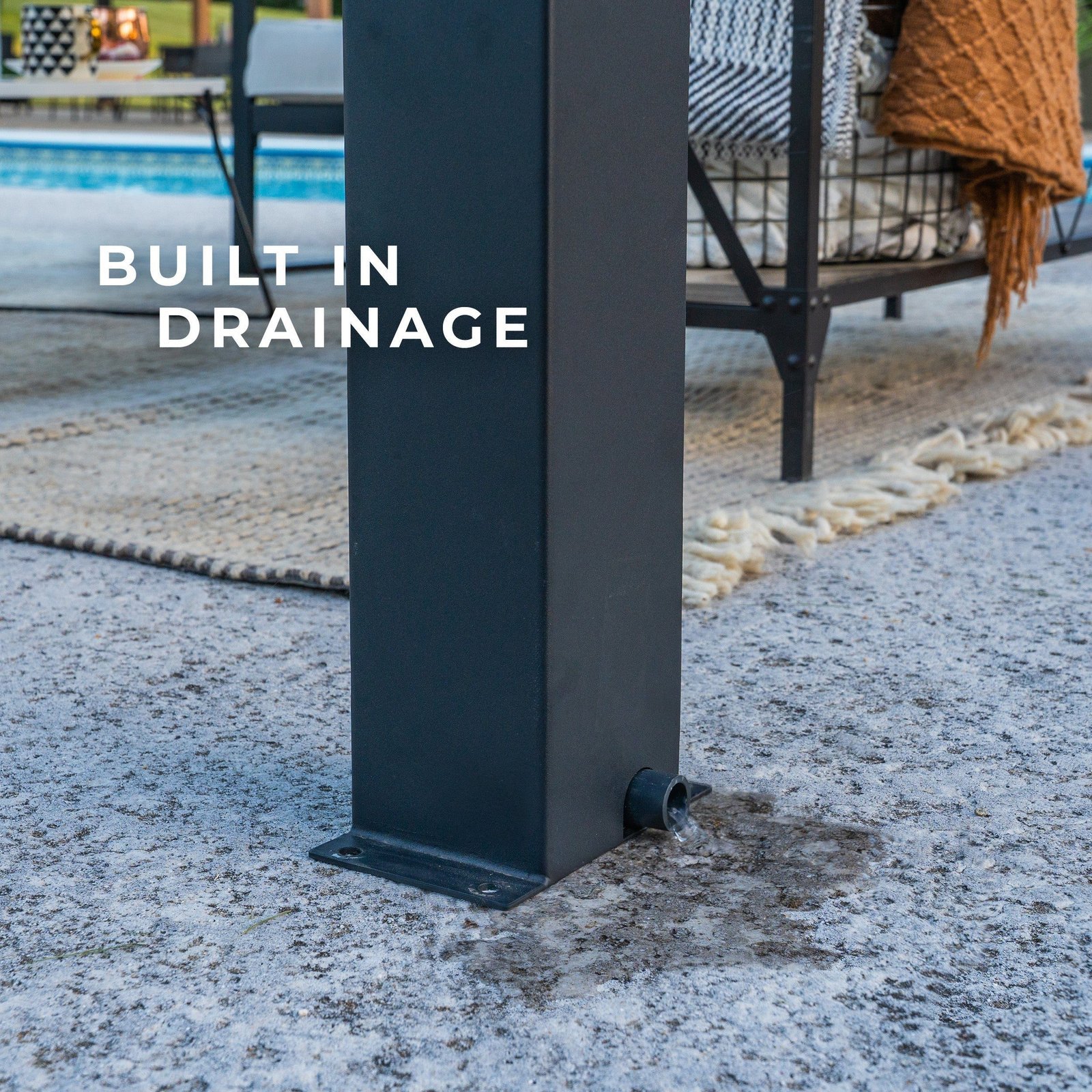

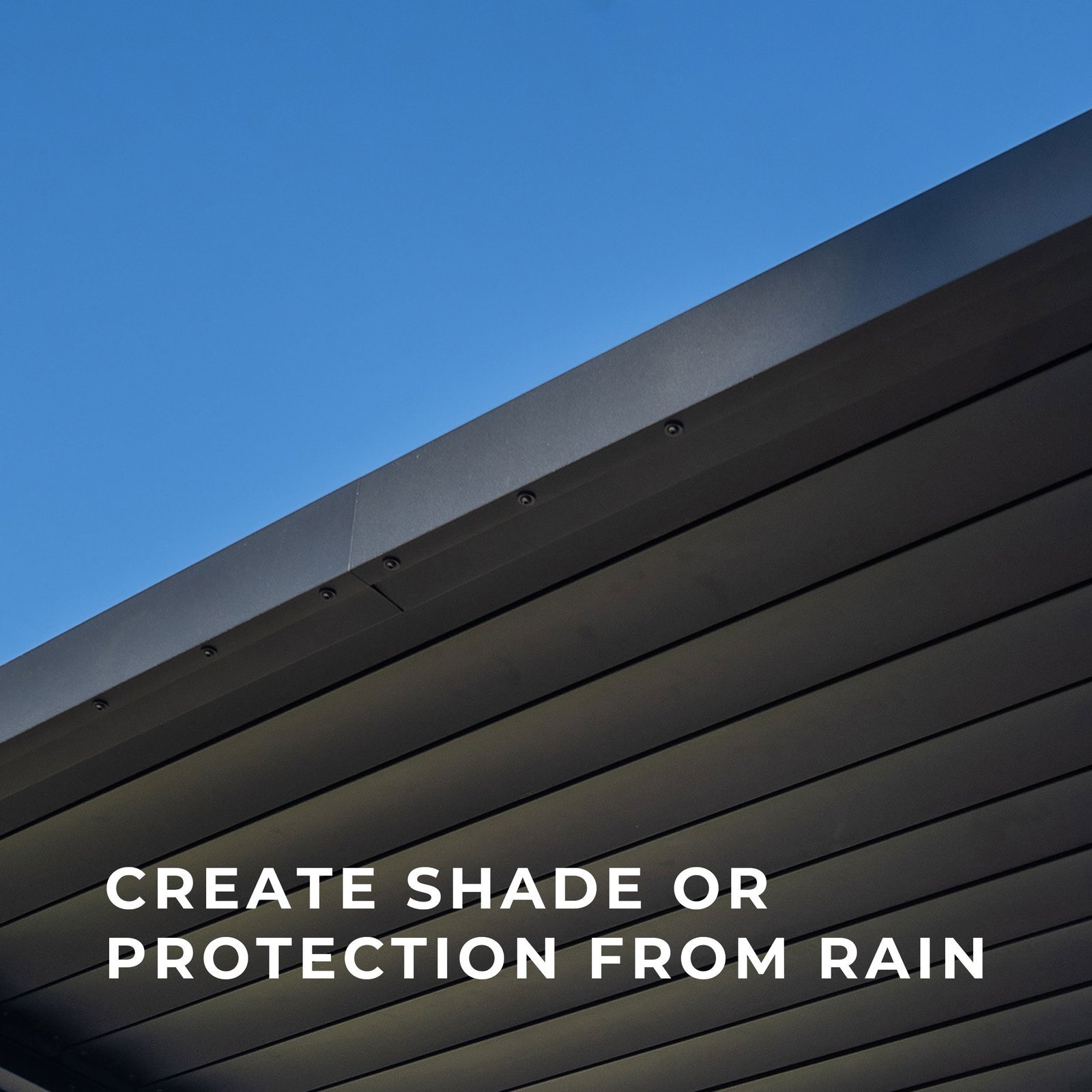

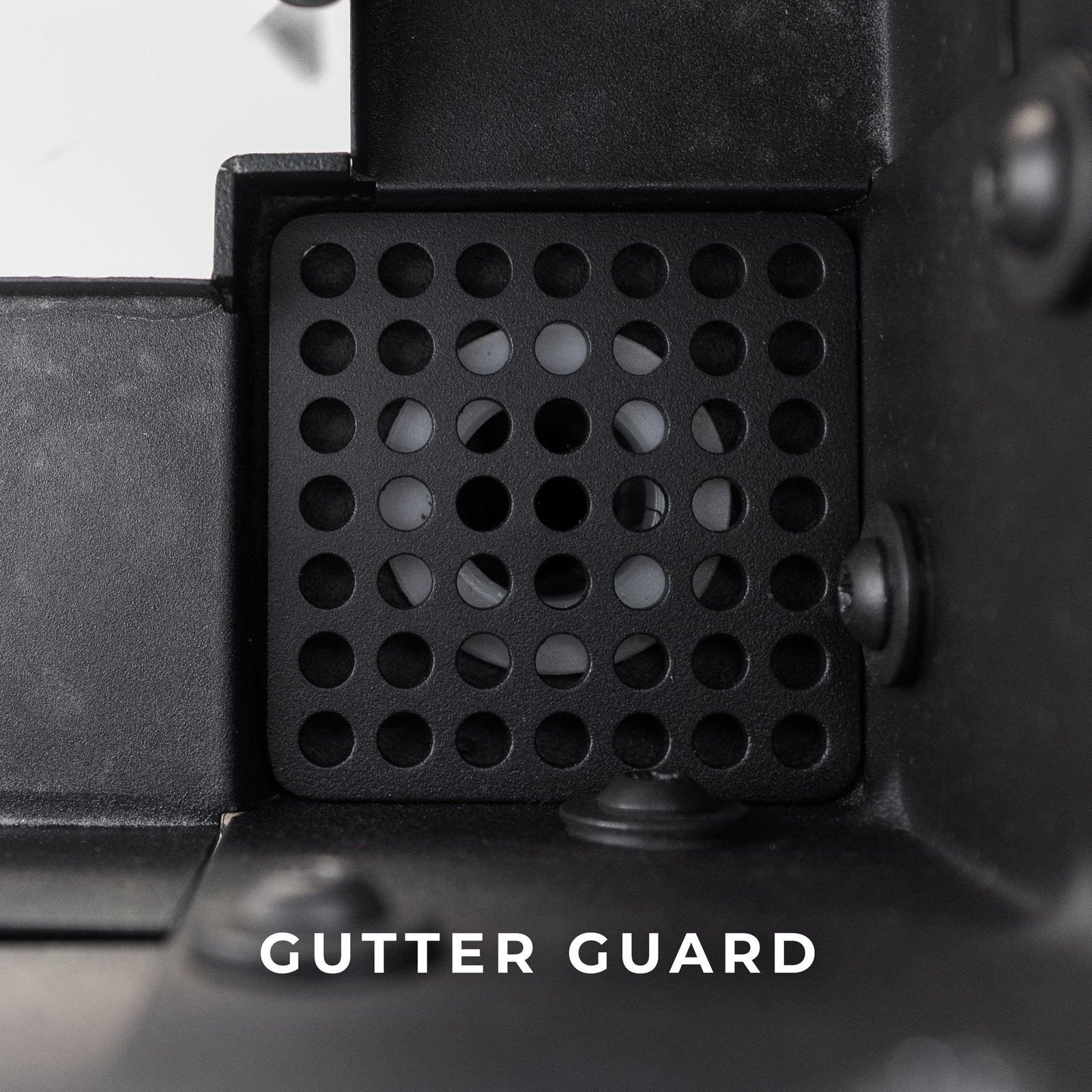

The roof louvers open for sunlight and ventilation and close for stronger shade and rain protection. When closed, integrated gutters collect water and route it through concealed downspouts in the posts, while gutter guards help reduce debris entering the drainage channels.
Steel Construction & Weather Performance
The powder-coated galvanized-steel frame is built for strength and improved resistance to rust and corrosion. Backyard Discovery’s Pro-Tect™ testing rates this model for winds up to 100 mph and a snow load up to 3,100 pounds when correctly attached and installed according to the manufacturer instructions.

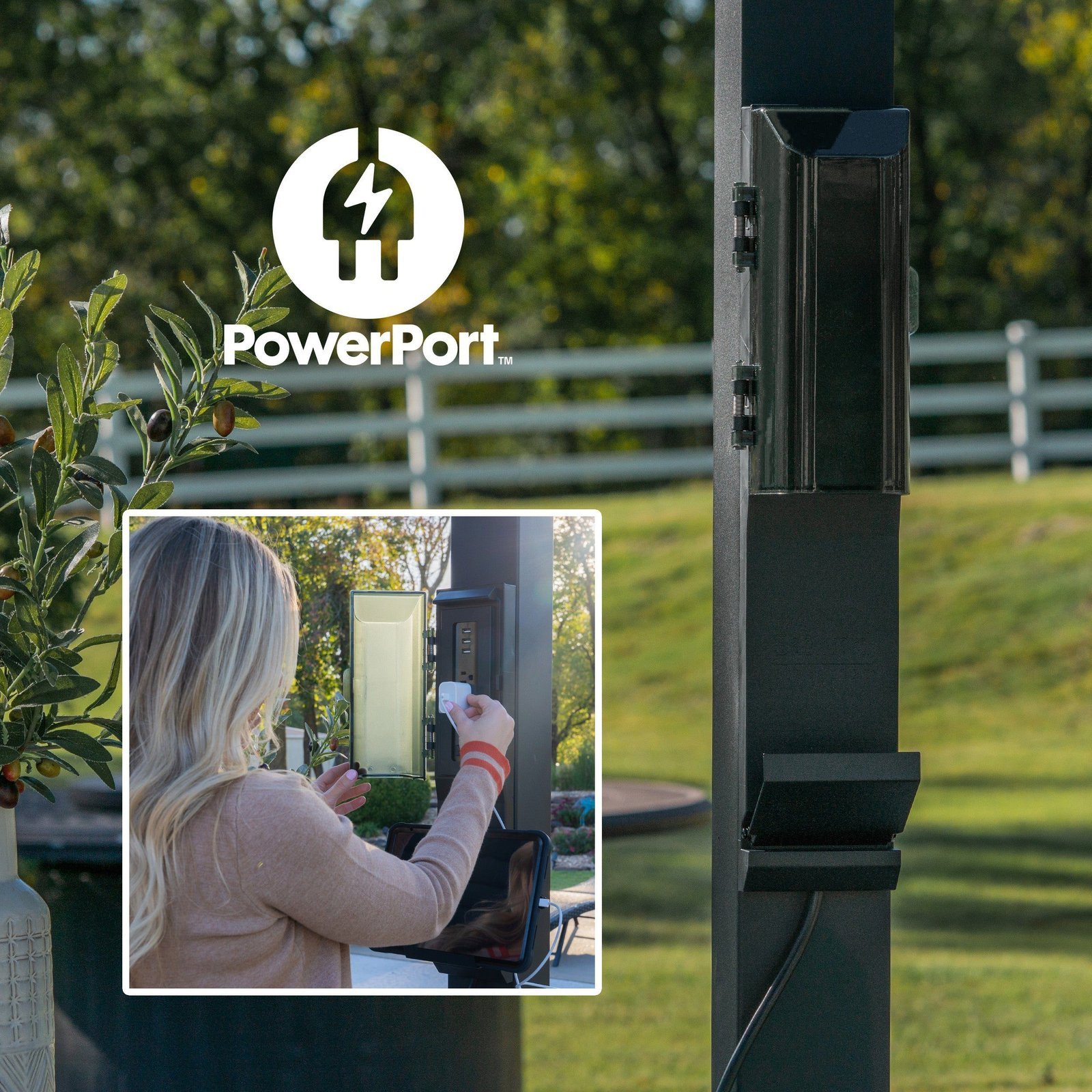

The included PowerPort™ provides three standard electrical outlets and three USB ports for compatible outdoor lighting, speakers, charging, and other accessories. An external power source is required and is not included.
Installation & Site Planning

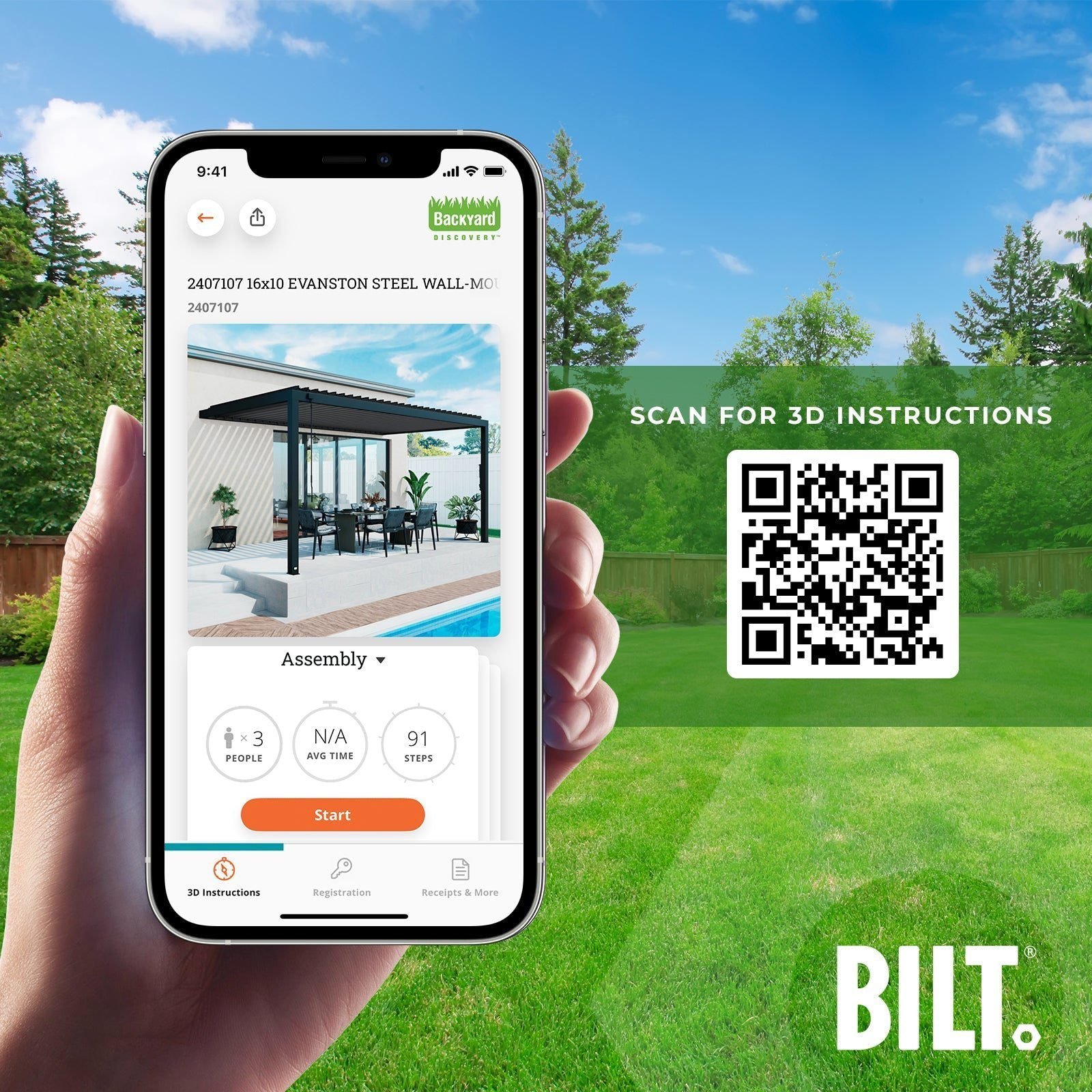

This pergola permanently attaches to the house and is not freestanding. Review the supporting wall, mounting location, drainage path, required clearances, local building codes, permits, and HOA requirements before purchase. Backyard Discovery recommends professional consultation for wall-mounted installation. Components are pre-fabricated and pre-drilled, with BILT® guided assembly support.
Brand & Seller Information
Brand/Manufacturer: Backyard Discovery.
Manufacturer model/item: 2407107
Sold by: True Yard Buildings LLC, an independent retailer/seller.
Published wind and snow ratings depend on correct attachment and installation. Review the current Backyard Discovery manual before installation.
Quick Specifications
| Product | Evanston 16 ft. x 10 ft. Wall-Mounted Louvered Pergola |
|---|---|
| Brand / Manufacturer | Backyard Discovery |
| Manufacturer model / item | 2407107 |
| True Yard Buildings SKU | TYB-PRG-EVANSTON-16-X-10 |
| Overall dimensions | 118.62 L × 194.37 W × 101.53 H in. |
| Listed weight | 611.55 lb. |
| Product category | Outdoor Pergolas |
| Delivery | Curbside freight delivery; review the current shipping and freight policies |
| Seller | True Yard Buildings LLC, an independent retailer/seller |
Overall dimensions are not the same as usable space, post spacing, foundation dimensions, or required safety clearance. Confirm every measurement in the current manual for this exact model before preparing the site.
Before Delivery & Installation
- Measure the complete footprint: Mark the overall size, post locations, roof overhang, moving roof parts, furniture area, and maintenance access.
- Confirm the foundation and anchors: Use only a level, stable foundation and anchor system permitted by the current manufacturer instructions and local requirements.
- Wall attachment: Confirm the supporting wall, attachment method, flashing or waterproofing details, and local requirements with qualified professionals.
- Check delivery access: Measure gates, driveways, turns, overhead clearance, and the safe location where packaged components will be unloaded and stored.
- Review local requirements: Ask the local building department and HOA about permits, setbacks, utilities, inspections, and site-specific requirements.
Use our site preparation and delivery guide before scheduling delivery. Review the anchoring, wind, and snow load guide for weather-performance planning.
Frequently Asked Questions
Are the listed dimensions the usable space between the posts?

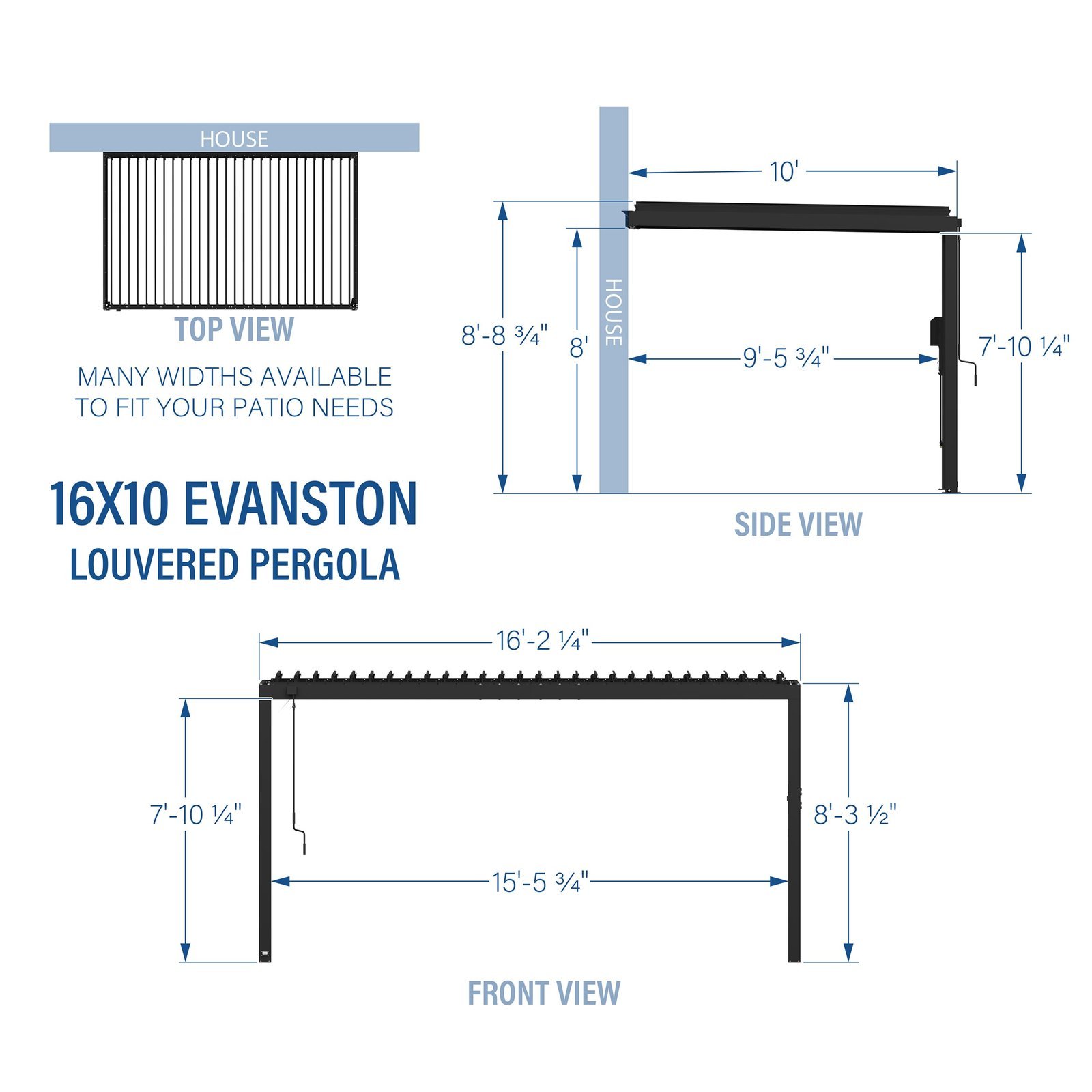

Not necessarily. Post spacing, roof overhang, foundation points, and usable interior area can differ from the overall dimensions. Verify the dimension diagram and manual for this exact model.
Does this structure need to be anchored?
Yes. It must be assembled and anchored according to the exact model instructions. Any published performance rating depends on correct installation and the required foundation and anchors.
Can it be installed on an existing patio or deck?
Only if that surface and its supporting structure are suitable for the loads and approved anchoring method. Concrete thickness, reinforcement, edge distance, deck framing, condition, and local code may matter.
Where can I compare planning considerations?
Start with the Outdoor Structure Planning Center, then follow the current manual for this exact product.
Documents & Assembly
Evanston 16 × 10 Wall-Mounted Louvered Pergola · Model 2407107
Specification
Overview
| Weight | 611.55 lbs |
|---|---|
| Dimensions | 118.62 × 194.37 × 101.53 in |
| Brand | Backyard Discovery |
| Model Number | 2407107 |
| Assembled Dimensions | 194.37 W × 118.62 D × 101.53 H in |
| Product Weight | 611.55 lbs |
| Material | Powder-Coated Galvanized Steel |
| Roof Type | Adjustable Louvered Roof |
| Wind Rating | Up to 100 mph when installed as directed |
| Snow Load | Up to 3,100 lbs / 12 in. of snow |
| Drainage | Integrated gutters and downspouts with gutter guards |
| PowerPort | 3 electrical outlets + 3 USB ports; power source not included |
| Installation | Wall-mounted; permanently attaches to the house; professional consultation recommended |
| Manufacturer Warranty | 5-Year Limited Warranty |
| Assembly | Pre-fabricated and pre-drilled; BILT® guided assembly |
| Coverage Area | Approx. 160 sq. ft. |
| Installation Type | Wall-Mounted |
| Roof Operation | Manual wand-operated louvers |
| Color / Finish | Black powder-coated finish |
