Evanston 12 ft. x 10 ft. Wall-Mounted Louvered Pergola
Delivery & Installation
Modern 12 x 10 Backyard Discovery wall-mounted galvanized-steel pergola with adjustable louvers, integrated drainage, PowerPort™, 100 mph wind testing, and a snow-load rating up to 2,100 lb when installed as directed. Sold by True Yard Buildings LLC.
$2,149.00
Description
Evanston 12 ft. x 10 ft. Wall-Mounted Louvered Pergola

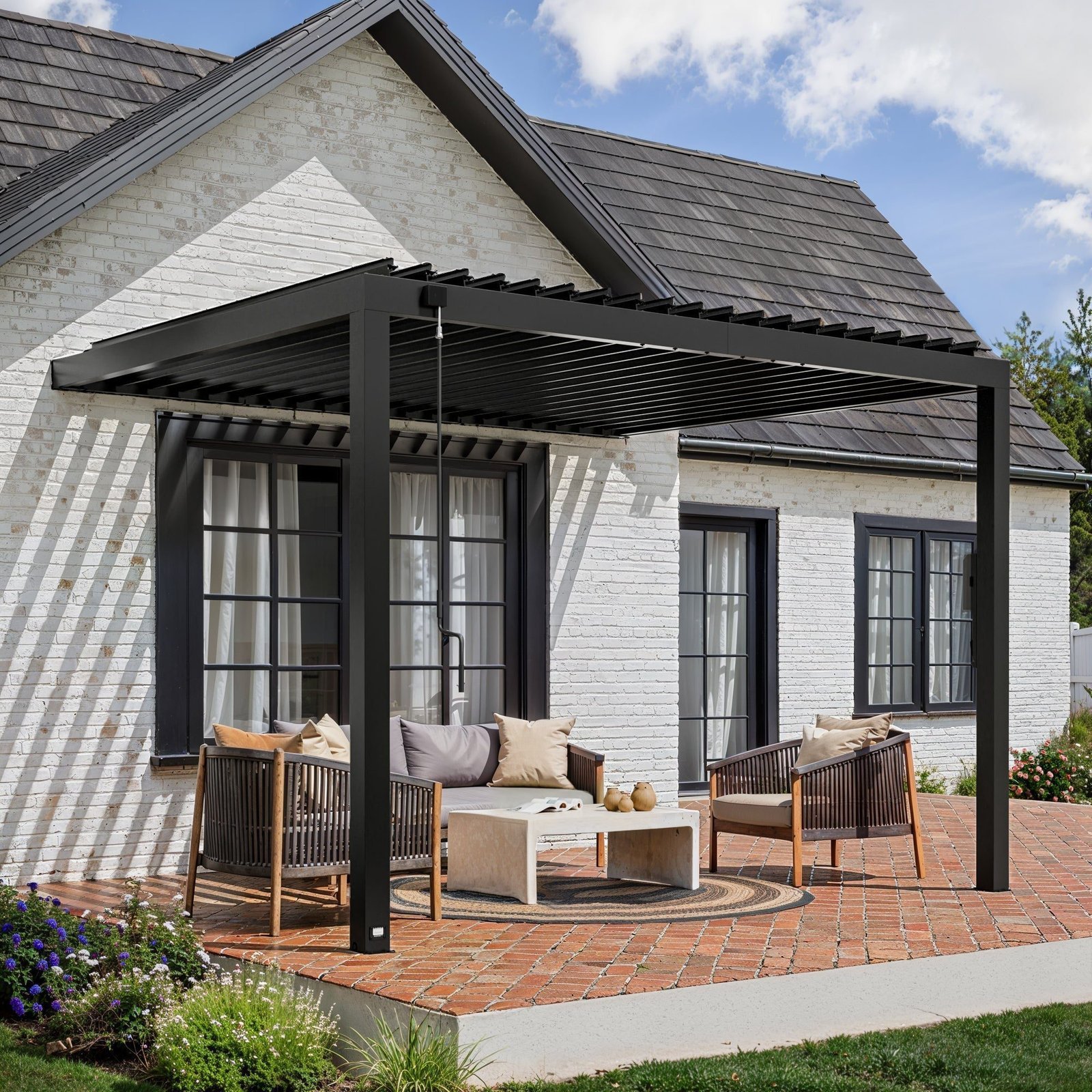

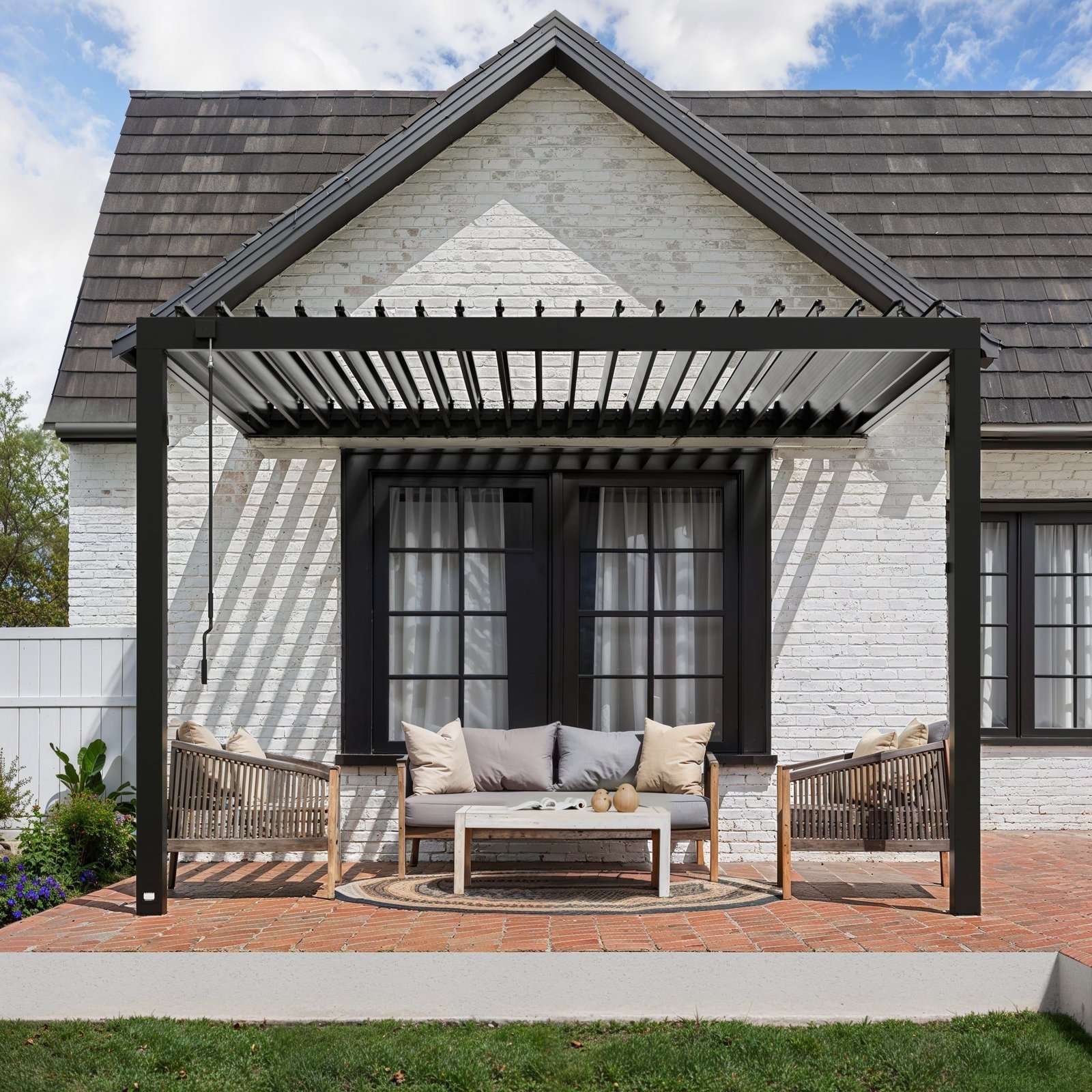

The Backyard Discovery Evanston 12 x 10 is a wall-mounted galvanized-steel pergola built to create a larger covered patio zone directly beside the home. Adjustable roof louvers let you choose between open sunlight and airflow or a closed position for greater shade and rain protection, while the black powder-coated frame gives the structure a clean modern look.
Key Features

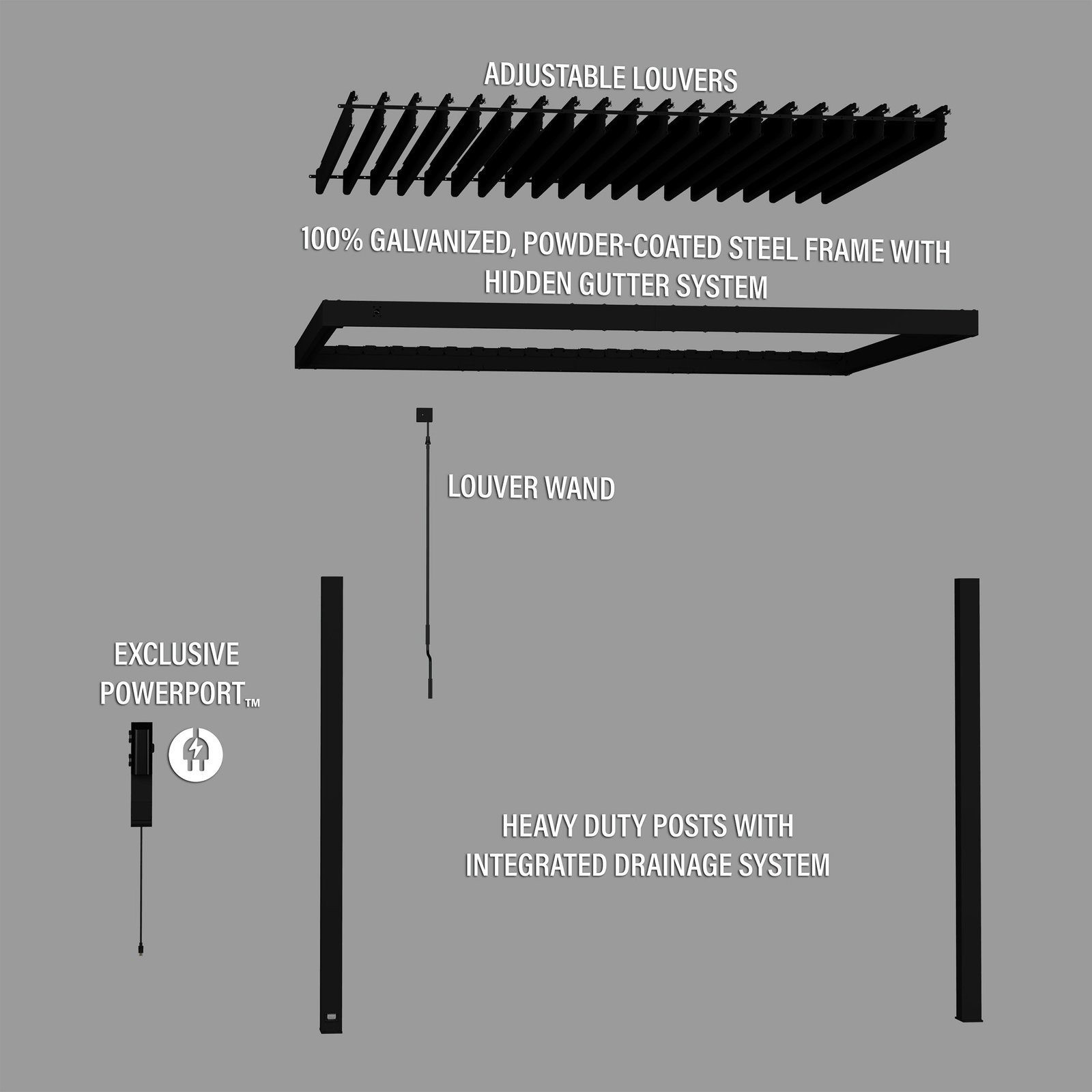

- 12 x 10 ft. nominal wall-mounted layout with approximately 120 sq. ft. of coverage
- Powder-coated galvanized-steel construction

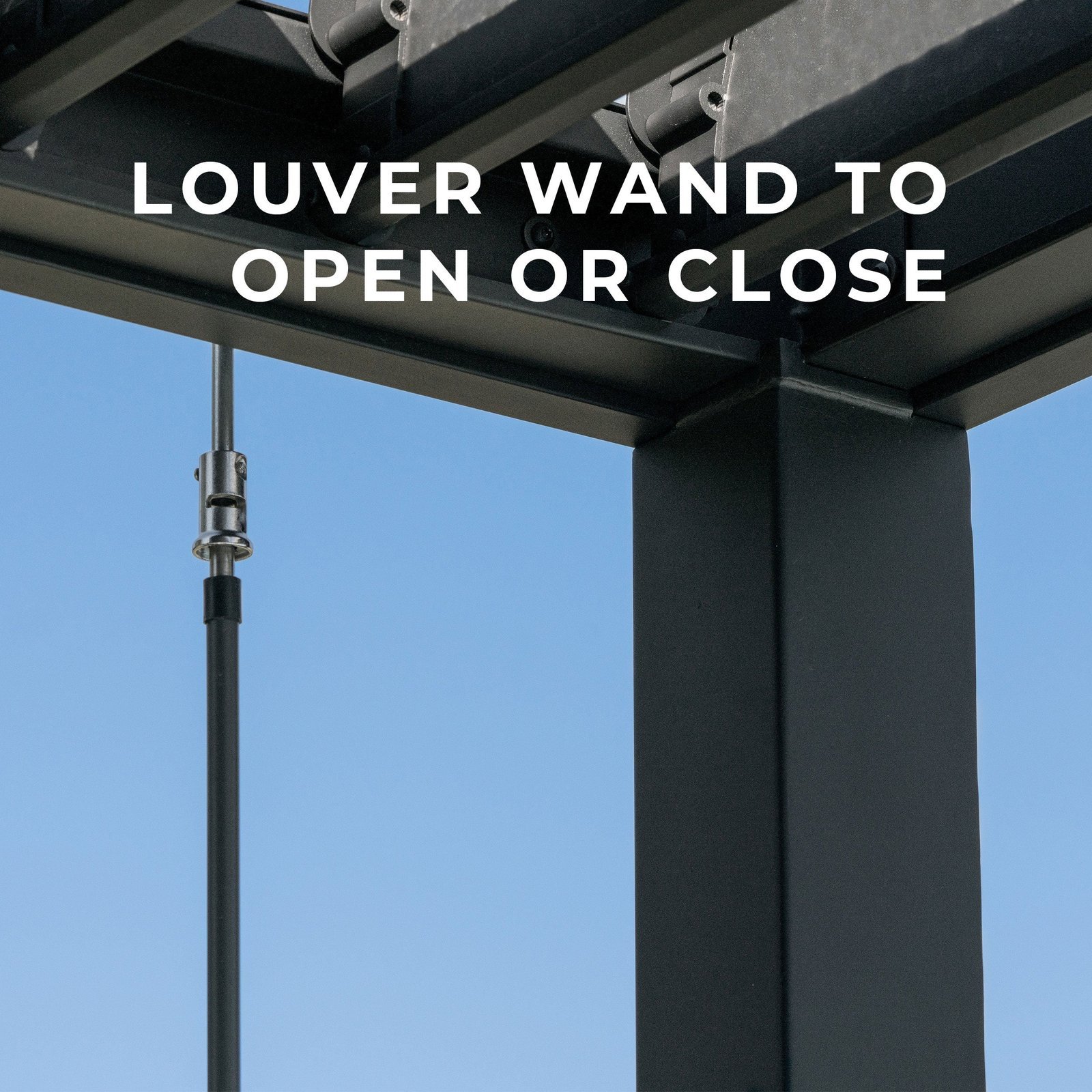

- Adjustable louvered roof operated with the included manual wand
- Integrated gutters, concealed downspouts, and gutter guards
- Pro-Tect™ tested for winds up to 100 mph when installed as directed
- Snow-load rating up to 2,100 lbs or approximately 12 in. of snow
- PowerPort™ with 3 electrical outlets and 3 USB ports
- 5-year limited manufacturer warranty
Adjustable Roof & Drainage

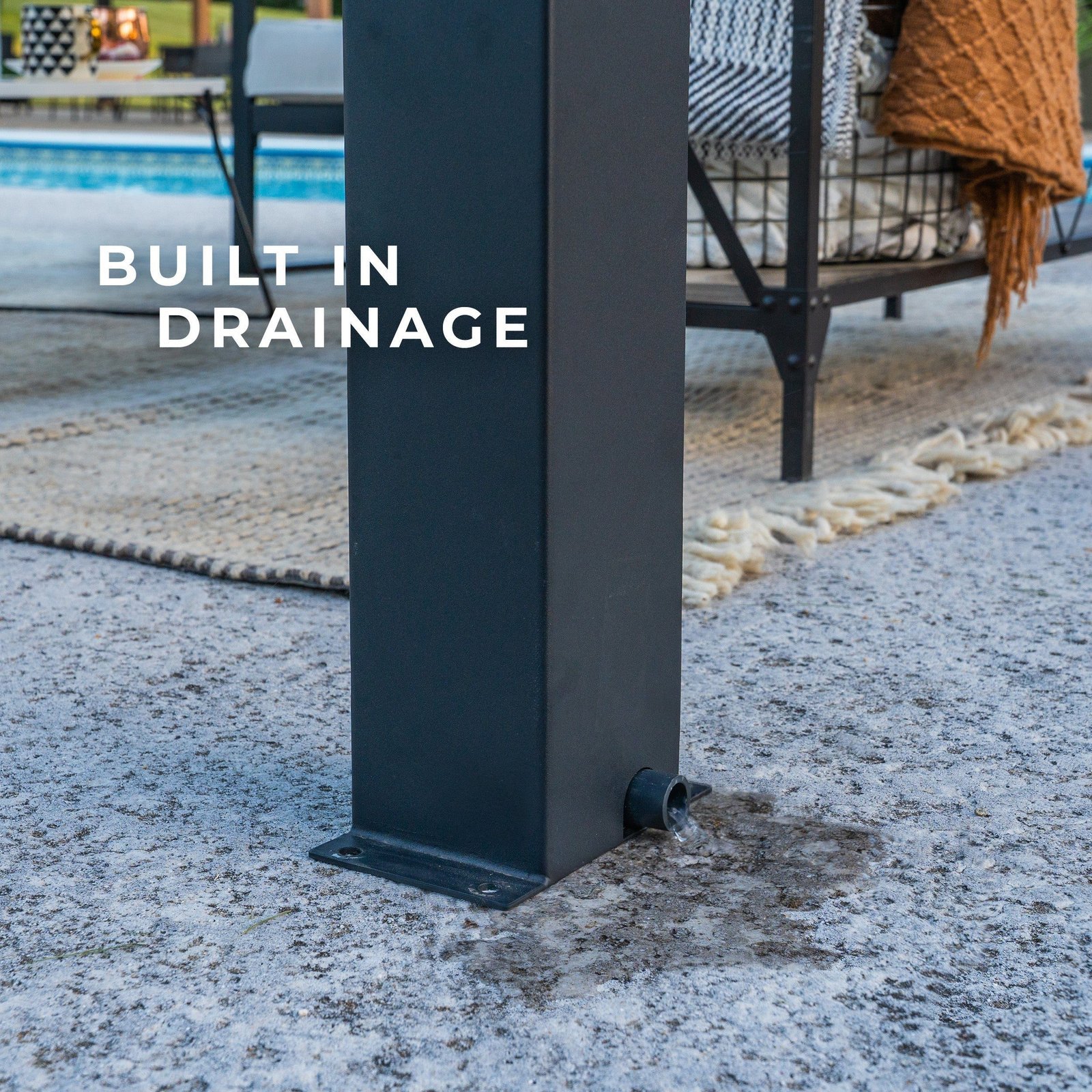

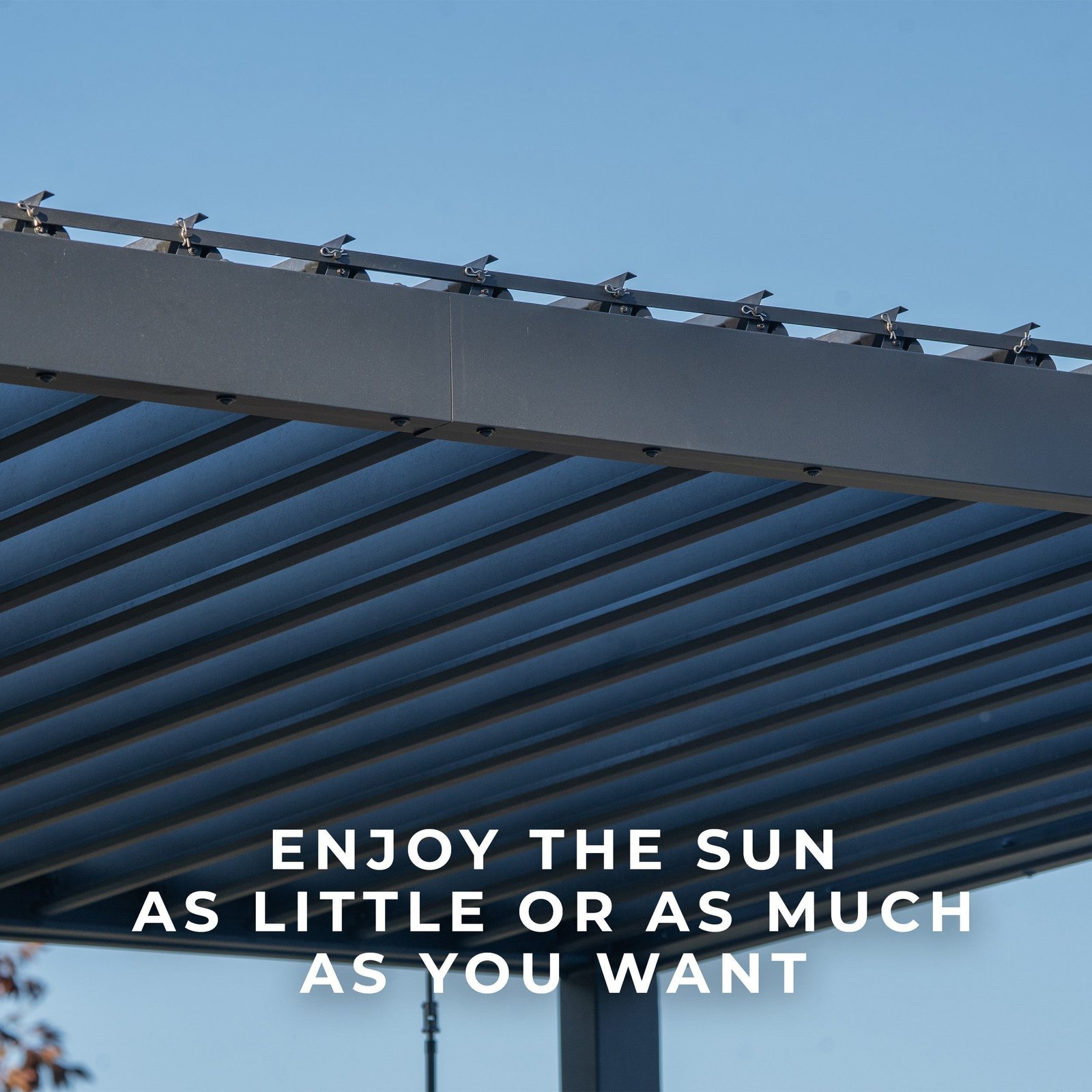

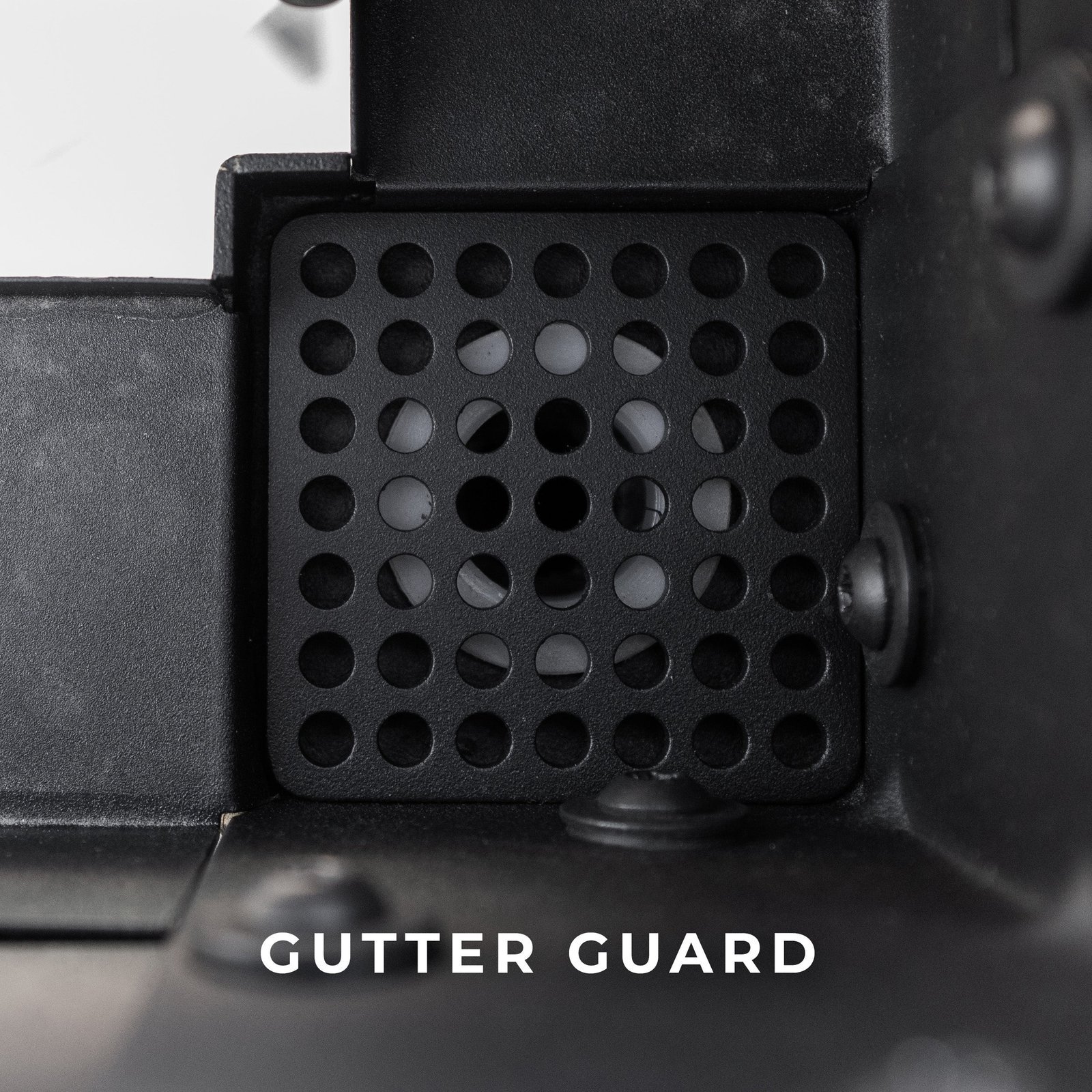

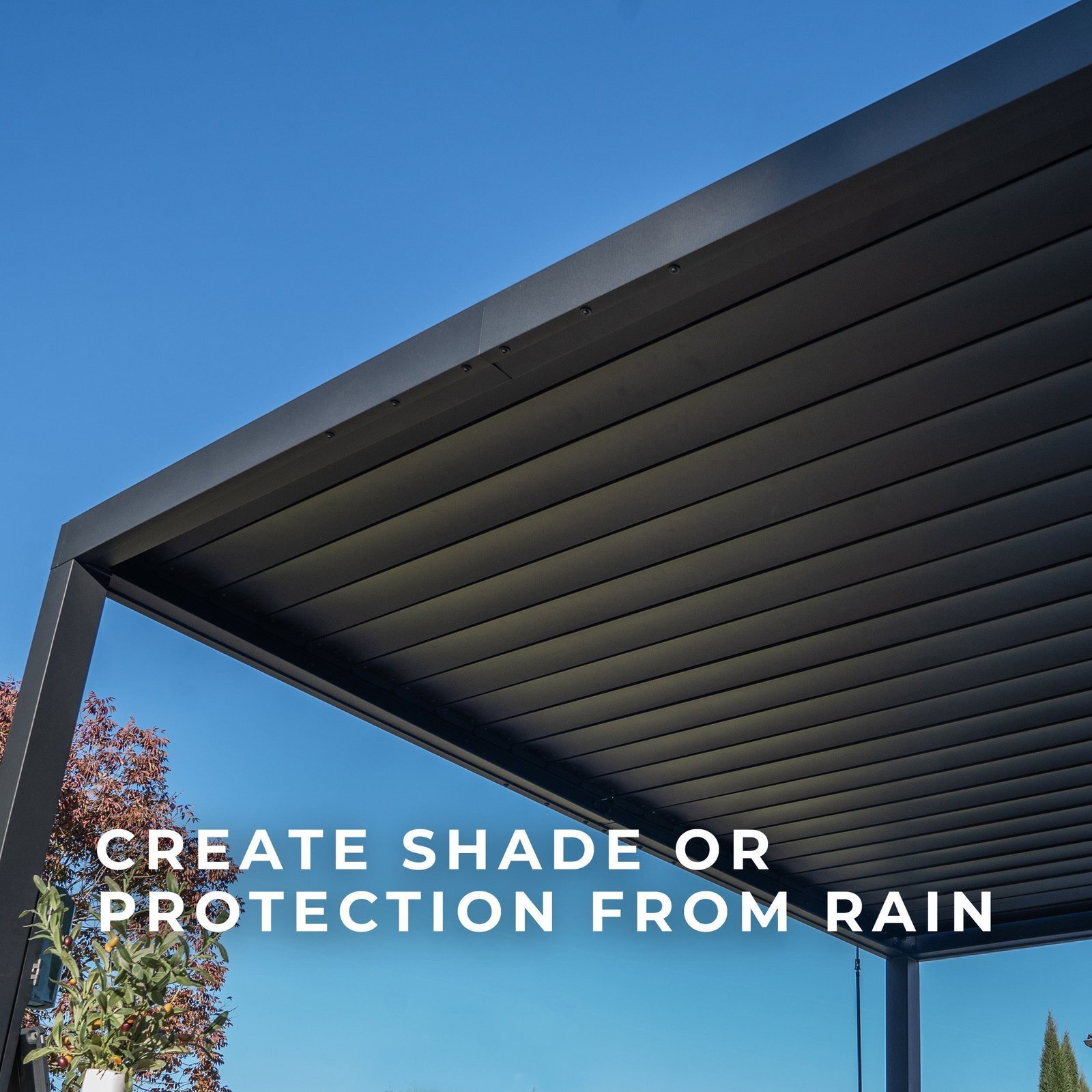

The manually operated louvers can be opened to admit direct sunlight and ventilation or closed for stronger shade and weather protection. Rainwater is managed through integrated gutters and downspouts built into the post system, and gutter guards help reduce debris entering the drainage channels.
Steel Construction & Weather Performance
The powder-coated galvanized-steel frame is designed for strength and resistance to rust and corrosion. Backyard Discovery’s Pro-Tect™ testing rates this model for winds up to 100 mph and a snow load up to 2,100 pounds when it is attached and installed according to the manufacturer instructions.

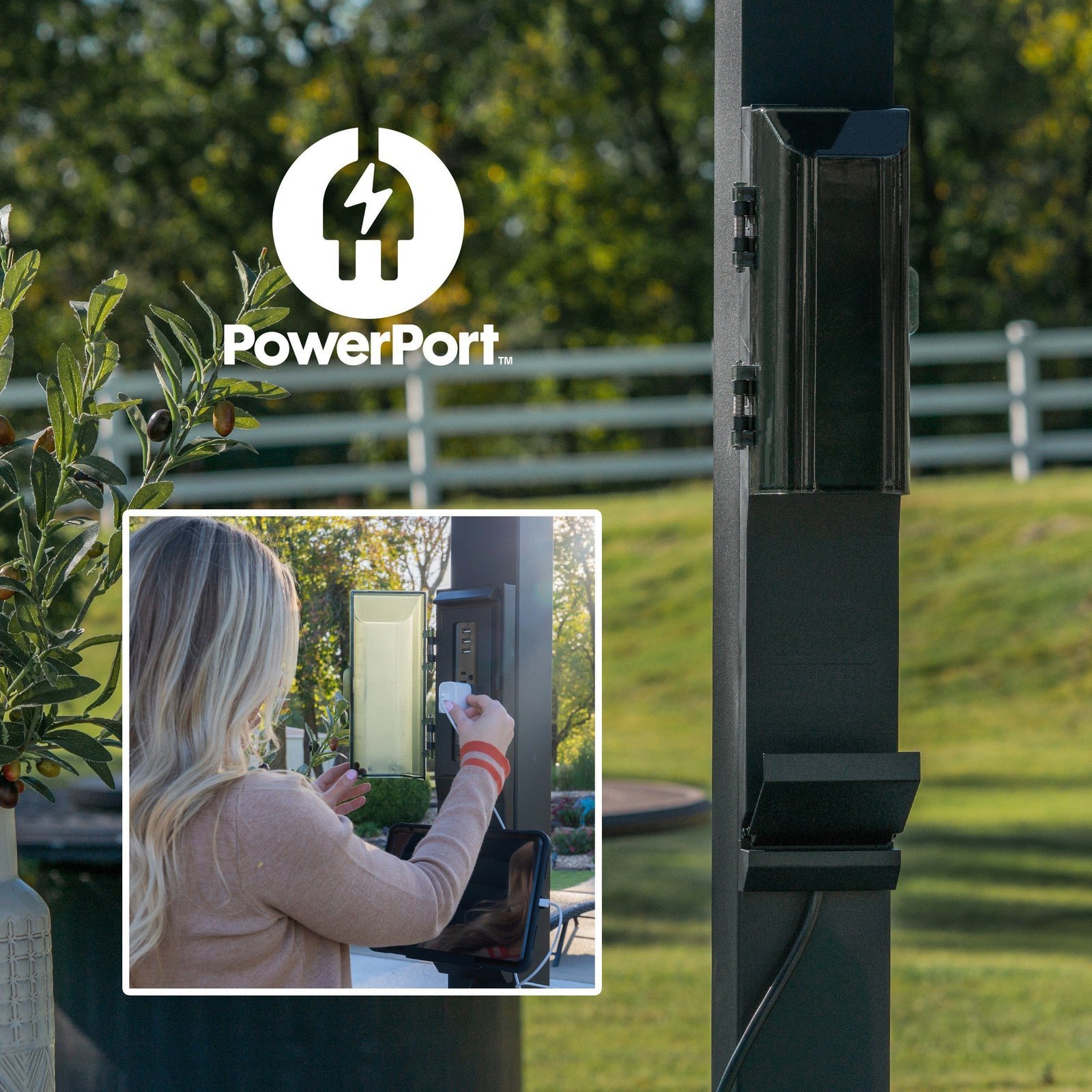

The PowerPort™ adds three standard electrical outlets and three USB ports for compatible outdoor lighting, music, charging, or other accessories. An external power source is required and is not included.
Installation & Site Planning
This is a wall-mounted structure that permanently attaches to the house rather than a freestanding pergola. Review the supporting wall, mounting location, drainage, clearances, local building codes, permits, and HOA requirements before purchase. Backyard Discovery recommends professional consultation for wall-mounted installation. Components are pre-fabricated and pre-drilled, with BILT® guided assembly support.
Brand & Seller Information
Brand/Manufacturer: Backyard Discovery.
Manufacturer model/item: 2407121
Sold by: True Yard Buildings LLC, an independent retailer/seller.
Published wind and snow ratings depend on correct attachment and installation. Review the current Backyard Discovery instruction manual and applicable local requirements before installation.
Quick Specifications
| Product | Evanston 12 ft. x 10 ft. Wall-Mounted Louvered Pergola |
|---|---|
| Brand / Manufacturer | Backyard Discovery |
| Manufacturer model / item | 2407121 |
| True Yard Buildings SKU | TYB-PRG-EVANSTON-12-X-10 |
| Overall dimensions | 120.15 L × 140.55 W × 101.53 H in. |
| Listed weight | 492.52 lb. |
| Product category | Outdoor Pergolas |
| Delivery | Curbside freight delivery; review the current shipping and freight policies |
| Seller | True Yard Buildings LLC, an independent retailer/seller |
Overall dimensions are not the same as usable interior space, post-to-post dimensions, foundation dimensions, or required safety clearance. Confirm every measurement in the current manual for this exact model before preparing the site.
Before Delivery & Installation
- Measure the complete footprint: Mark the overall size, post locations, roof overhang, moving parts, furniture area, and maintenance access.
- Confirm the foundation: Use only a level, stable foundation and anchor system permitted by the current manufacturer instructions and local requirements.
- Wall attachment: This is a wall-mounted model. Confirm the supporting wall, flashing or waterproofing details, attachment method, and local requirements with qualified professionals before installation.
- Check access: Measure gates, driveways, turns, overhead clearance, and the safe location where packaged components will be unloaded and stored.
- Review local requirements: Ask the local building department and HOA about permits, setbacks, utilities, inspections, and site-specific wind or snow requirements.
Use our site preparation and delivery guide before scheduling delivery. For weather-performance questions, read the anchoring, wind, and snow load guide.
Frequently Asked Questions
Are the listed dimensions the usable space between the posts?

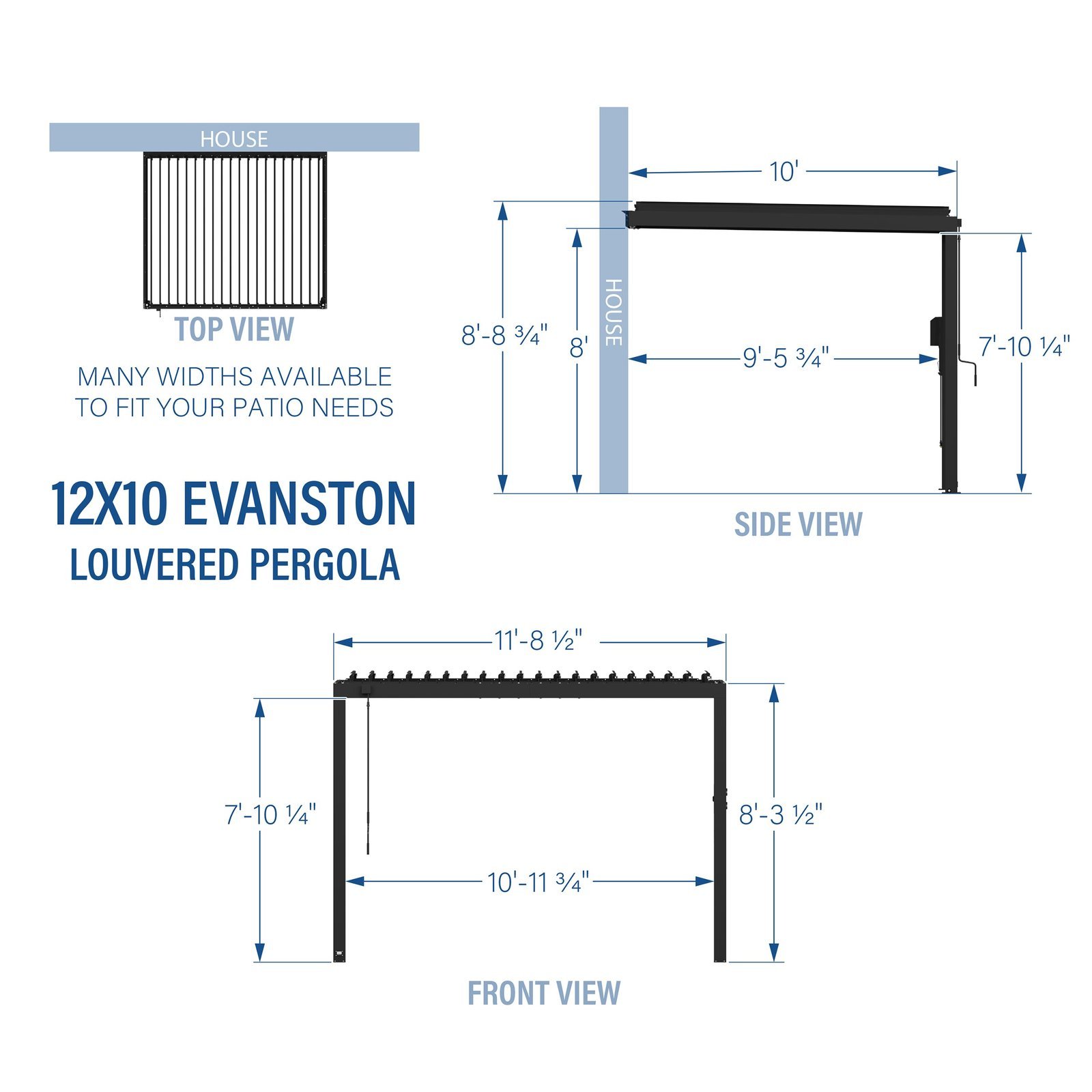

Not necessarily. The dimensions above describe the overall product size stored for this listing. Post spacing, roof overhang, foundation points, and usable interior area can be different. Verify the dimension diagram and manual for this model.
Does this pergola need to be anchored?
Yes. Outdoor structures must be assembled and anchored according to the exact model instructions. Any published performance rating depends on correct installation and the required foundation and anchors.
Can it be installed on an existing patio or deck?
Only if that surface and its supporting structure are suitable for the loads and approved anchoring method. Concrete thickness, reinforcement, edge distance, deck framing, condition, and local code may affect the answer.
Do I need a permit?
Permit, setback, engineering, and HOA requirements vary by location and installation. Check with the authority having jurisdiction before ordering or starting foundation work.
Documents & Assembly
Evanston 12 × 10 Wall-Mounted Louvered Pergola · Model 2407121
Specification
Overview
| Weight | 492.52 lbs |
|---|---|
| Dimensions | 120.15 × 140.55 × 101.53 in |
| Brand | Backyard Discovery |
| Model Number | 2407121 |
| Assembled Dimensions | 140.55 W × 120.15 D × 101.53 H in |
| Product Weight | 492.52 lbs |
| Material | Powder-Coated Galvanized Steel |
| Roof Type | Adjustable Louvered Roof |
| Wind Rating | Up to 100 mph when installed and anchored as directed |
| Snow Load | Up to 2,100 lbs / 12 in. of snow |
| Drainage | Integrated gutters and downspouts with gutter guards |
| PowerPort | 3 electrical outlets + 3 USB ports; power source not included |
| Installation | Wall-mounted; permanently attaches to the house; professional consultation recommended |
| Manufacturer Warranty | 5-Year Limited Warranty |
| Assembly | Pre-fabricated and pre-drilled; BILT® guided assembly |
| Coverage Area | Approx. 120 sq. ft. |
| Installation Type | Wall-Mounted |
| Roof Operation | Manual wand-operated louvers |
| Color / Finish | Black powder-coated finish |
