Sarasota 16 ft. x 10 ft. Steel Louvered Patio Pergola
Delivery & Installation
Extra-wide 16 x 10 Backyard Discovery freestanding galvanized-steel louvered pergola with adjustable shade, integrated drainage, PowerPort™, 100 mph wind testing, and a snow-load rating up to 3,100 lb when anchored as directed. Sold by True Yard Buildings LLC.
$2,549.00
Description
Sarasota 16 ft. x 10 ft. Steel Louvered Patio Pergola

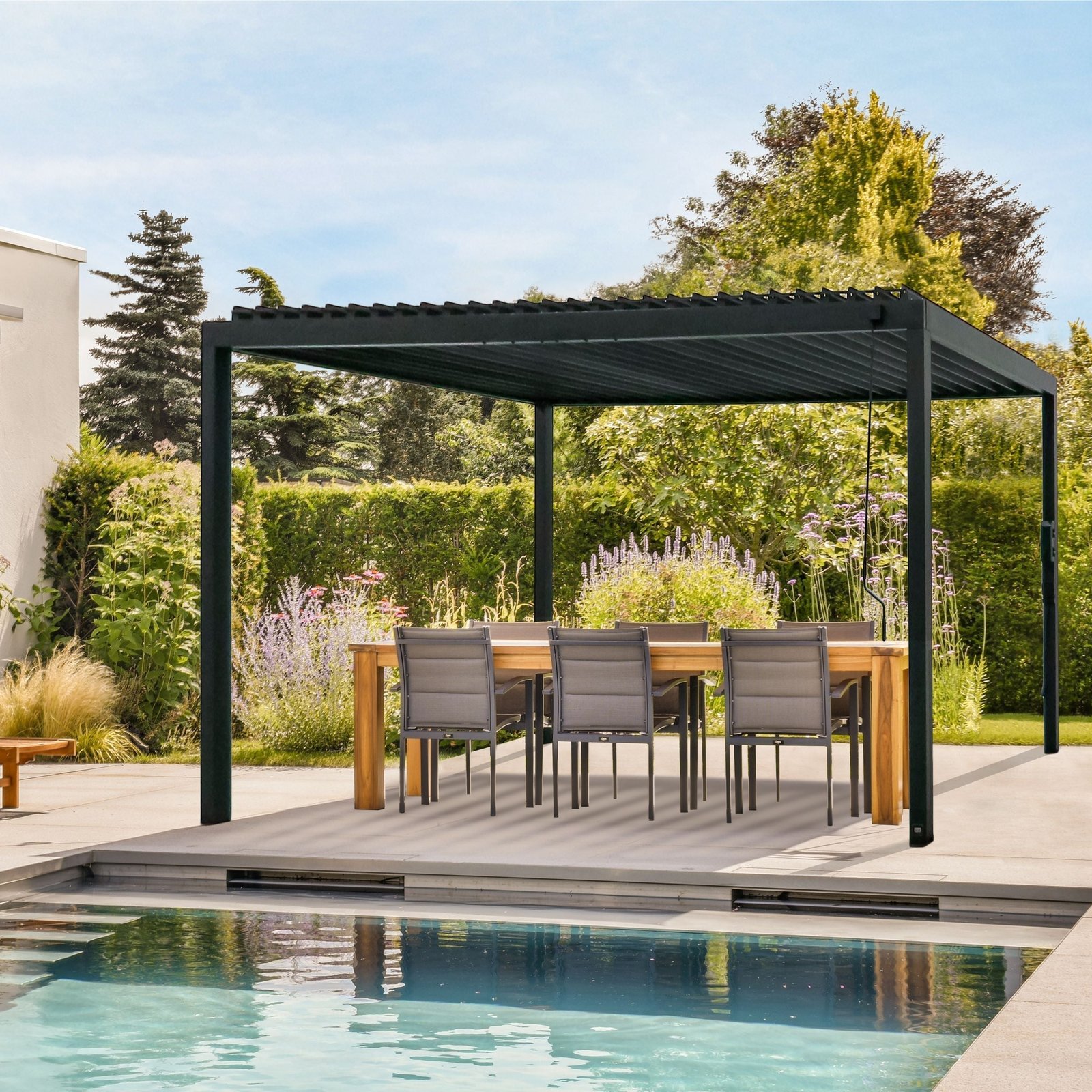

The Backyard Discovery Sarasota 16 x 10 is an extra-wide freestanding louvered pergola designed to create a substantial patio area with flexible control over sunlight, shade, airflow, and rain. Its black powder-coated galvanized-steel frame and manually adjustable roof make it suitable for large outdoor dining, lounge, or entertaining layouts.
Key Features
- 16 x 10 ft. nominal freestanding footprint with approximately 160 sq. ft. of coverage
- Powder-coated galvanized-steel construction with a black finish

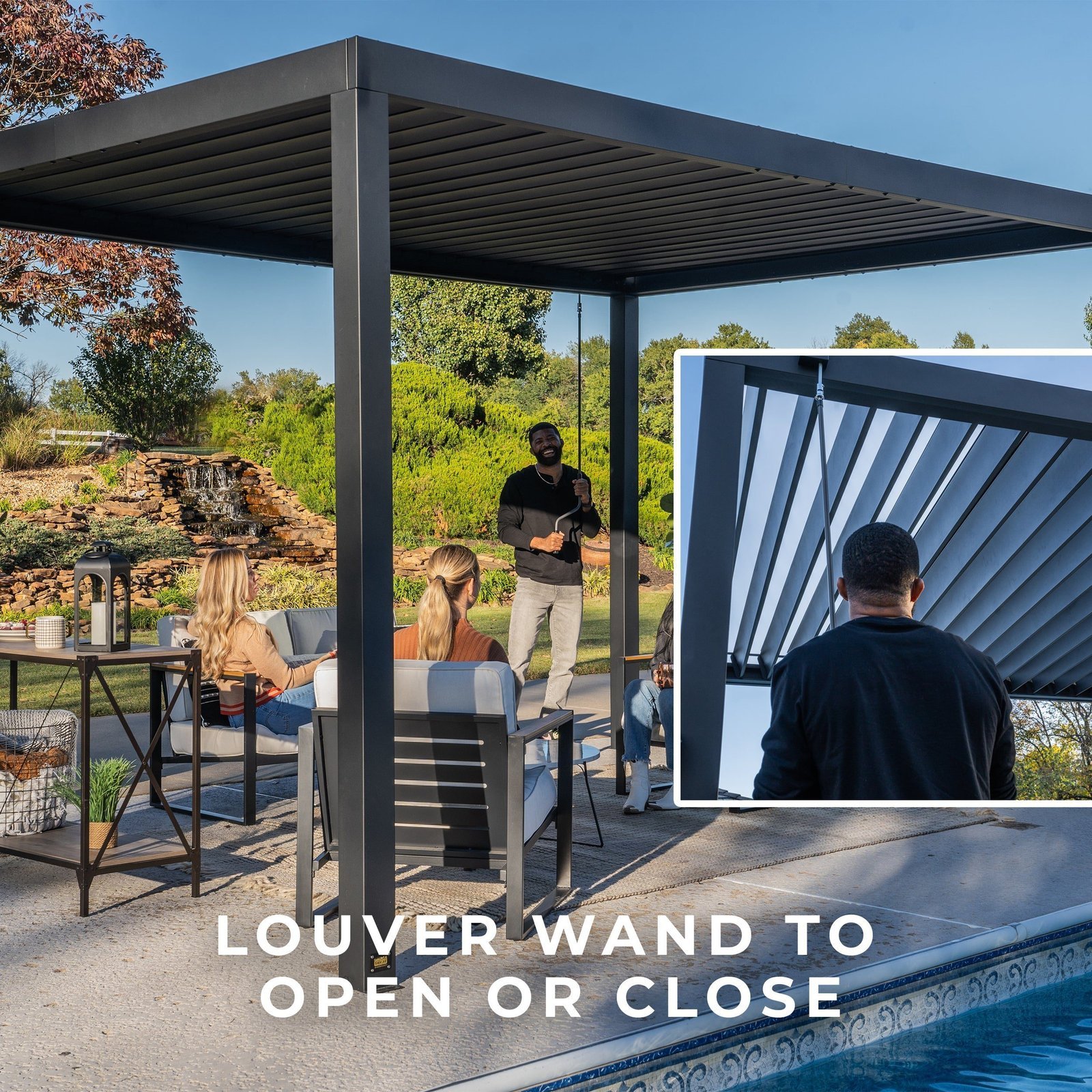

- Adjustable louvered roof operated with the included manual wand

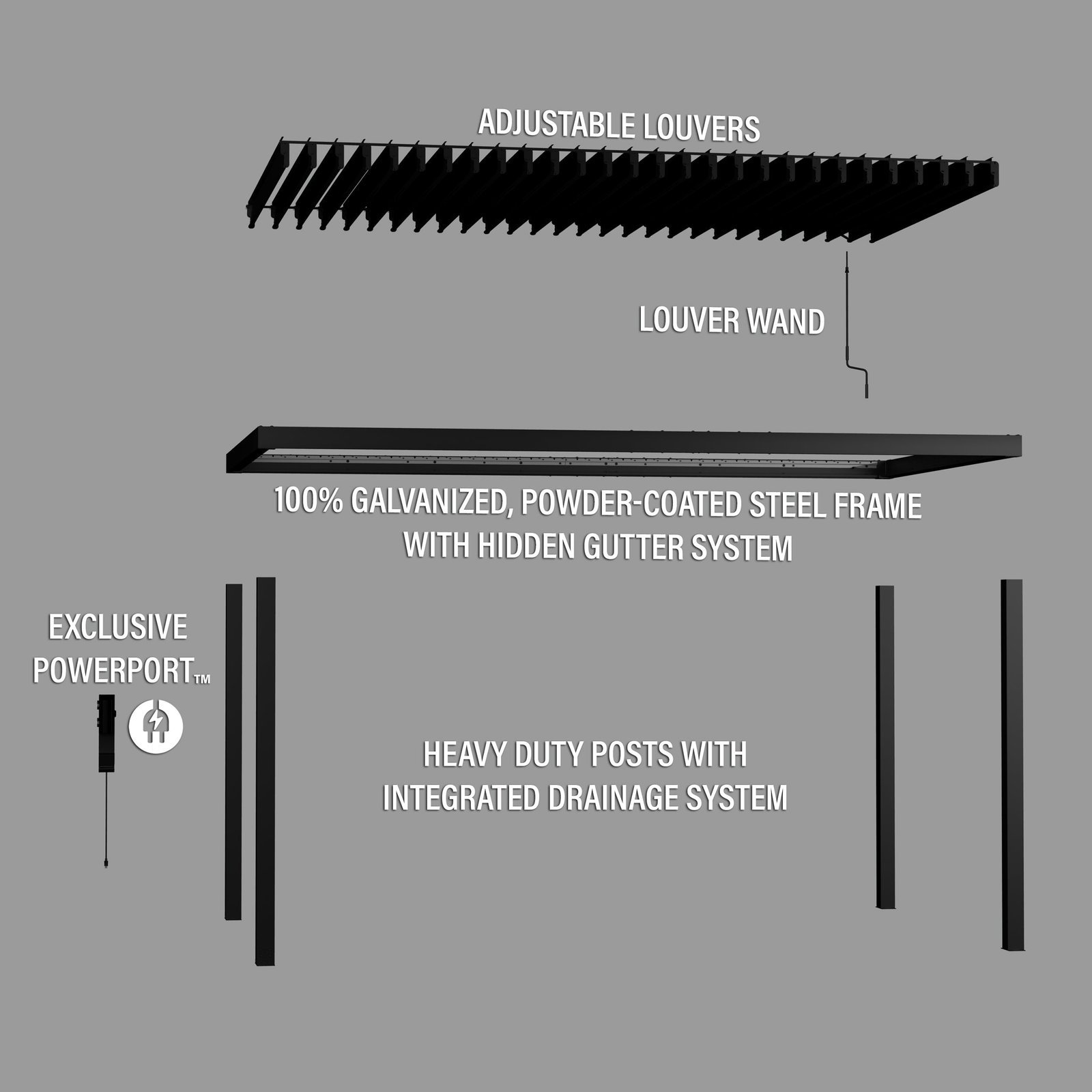

- Integrated gutters, downspouts, and gutter guards for rainwater management
- Pro-Tect™ tested for winds up to 100 mph when anchored as directed
- Snow-load rating up to 3,100 lbs or approximately 12 in. of snow
- PowerPort™ with 3 electrical outlets and 3 USB ports
- 5-year limited manufacturer warranty
Adjustable Shade & Drainage

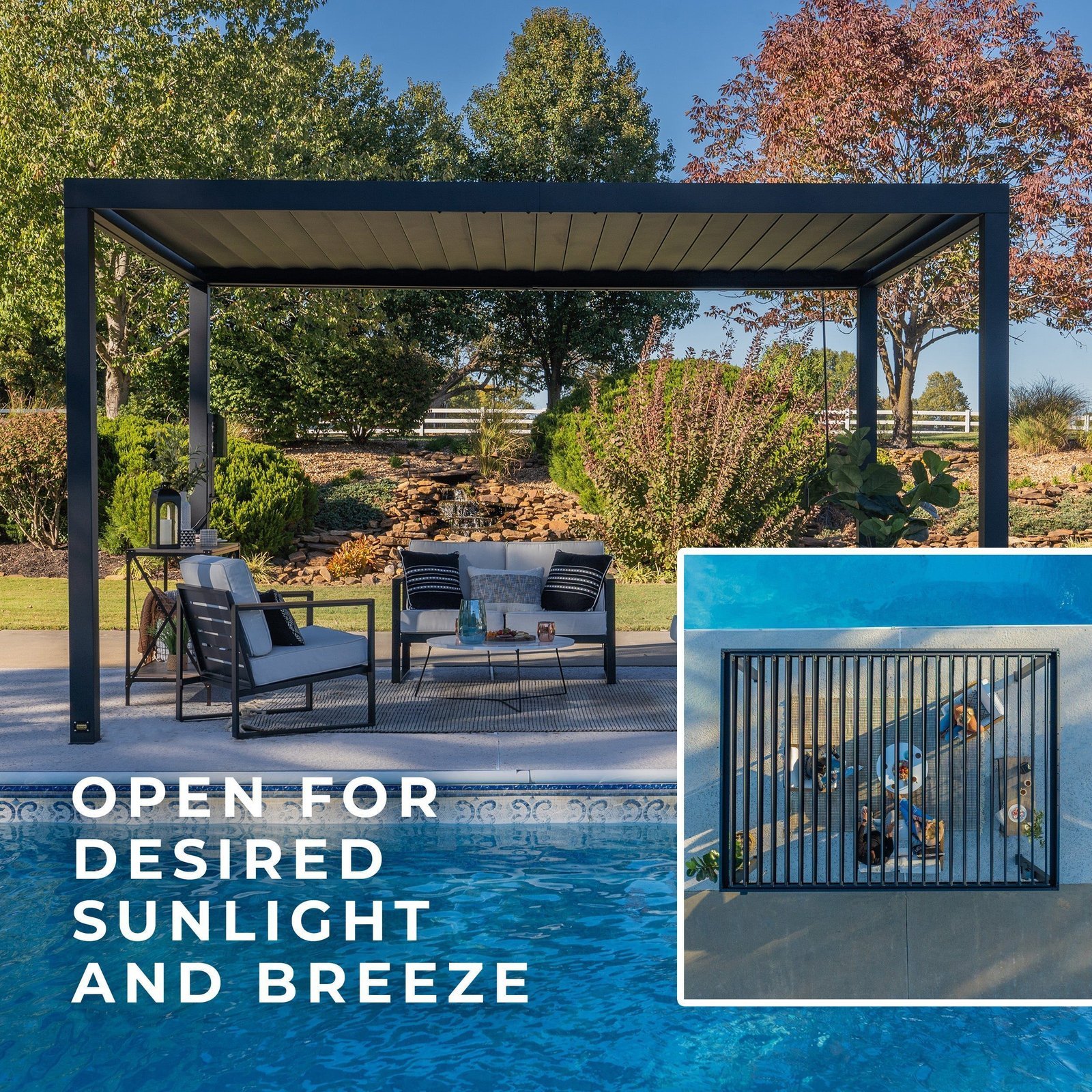

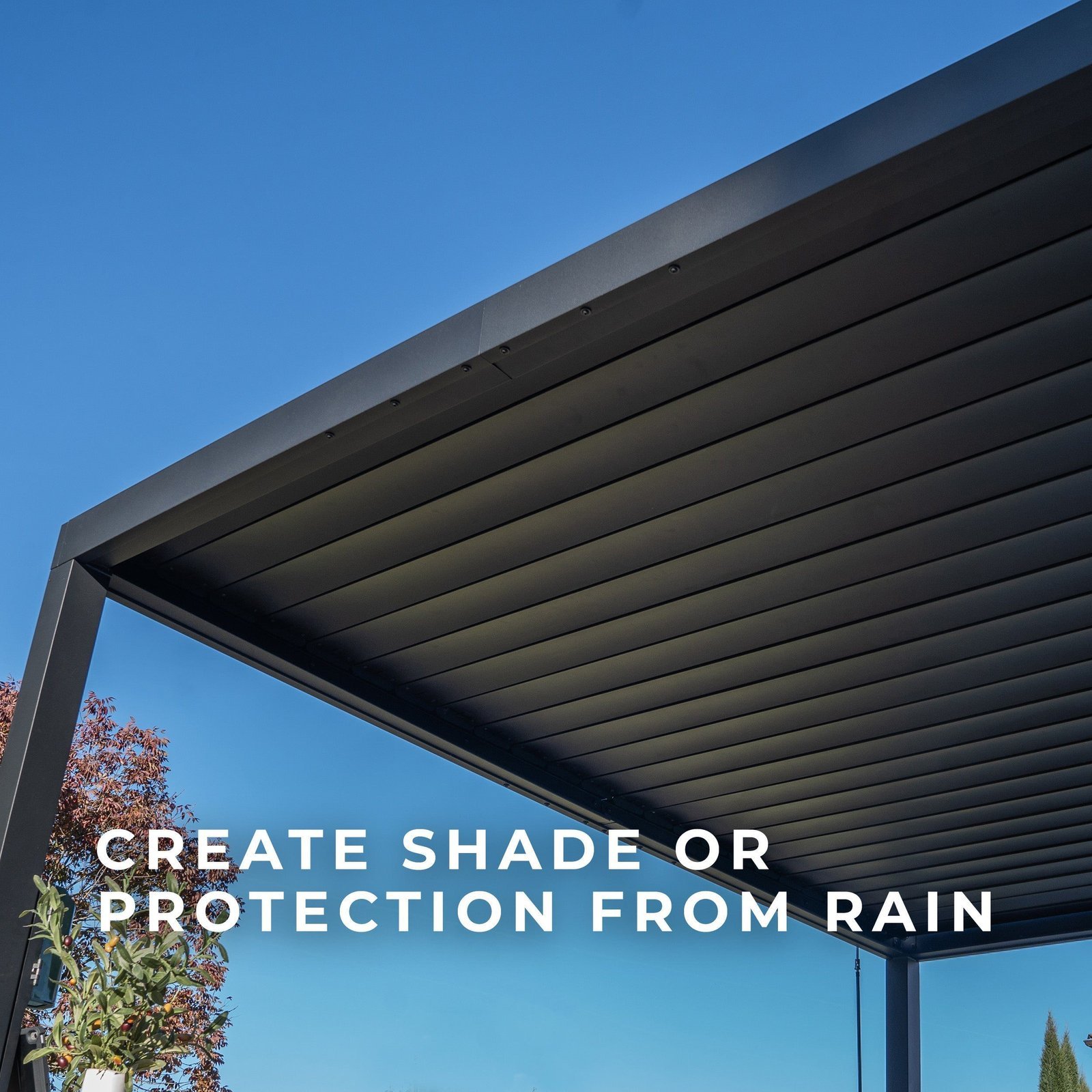

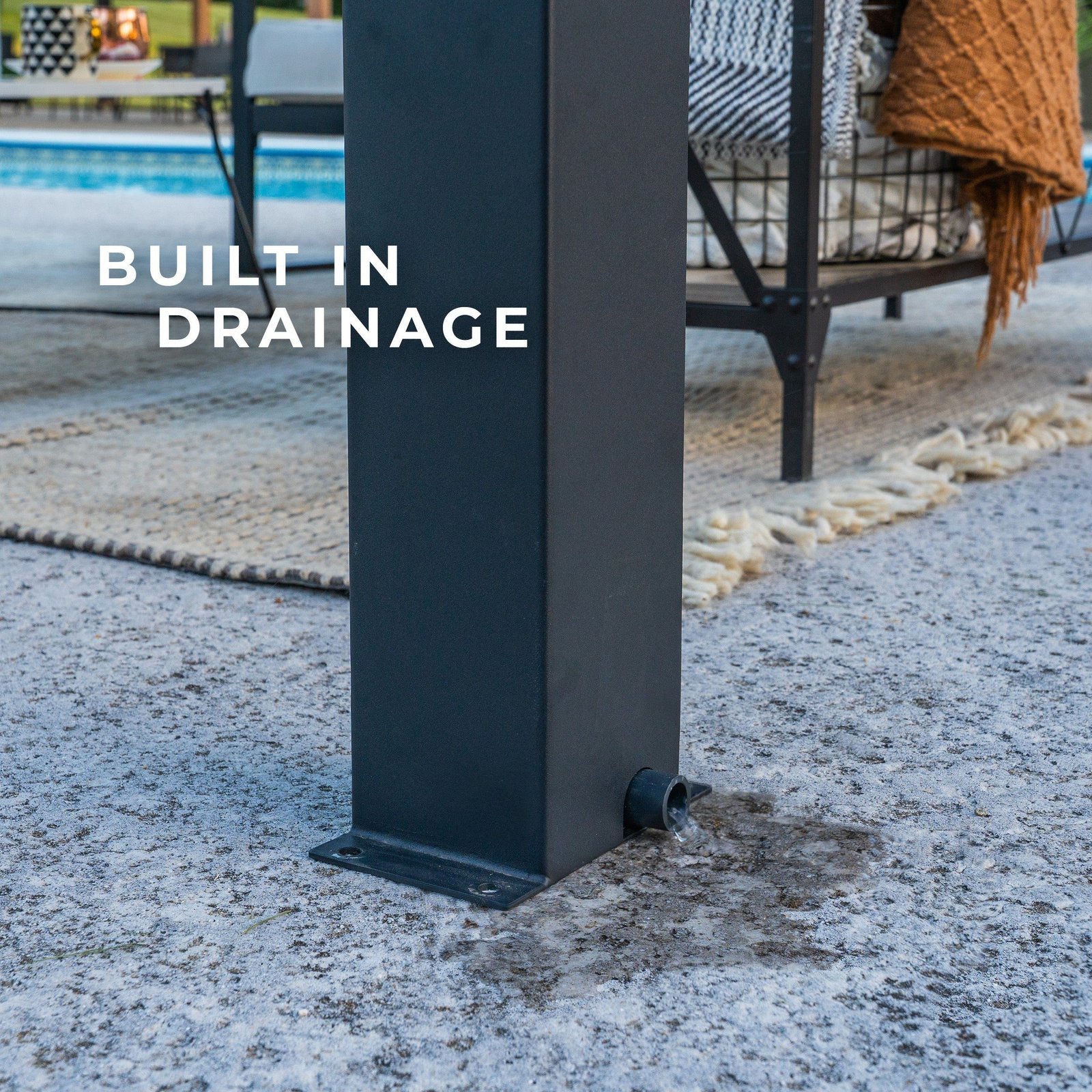

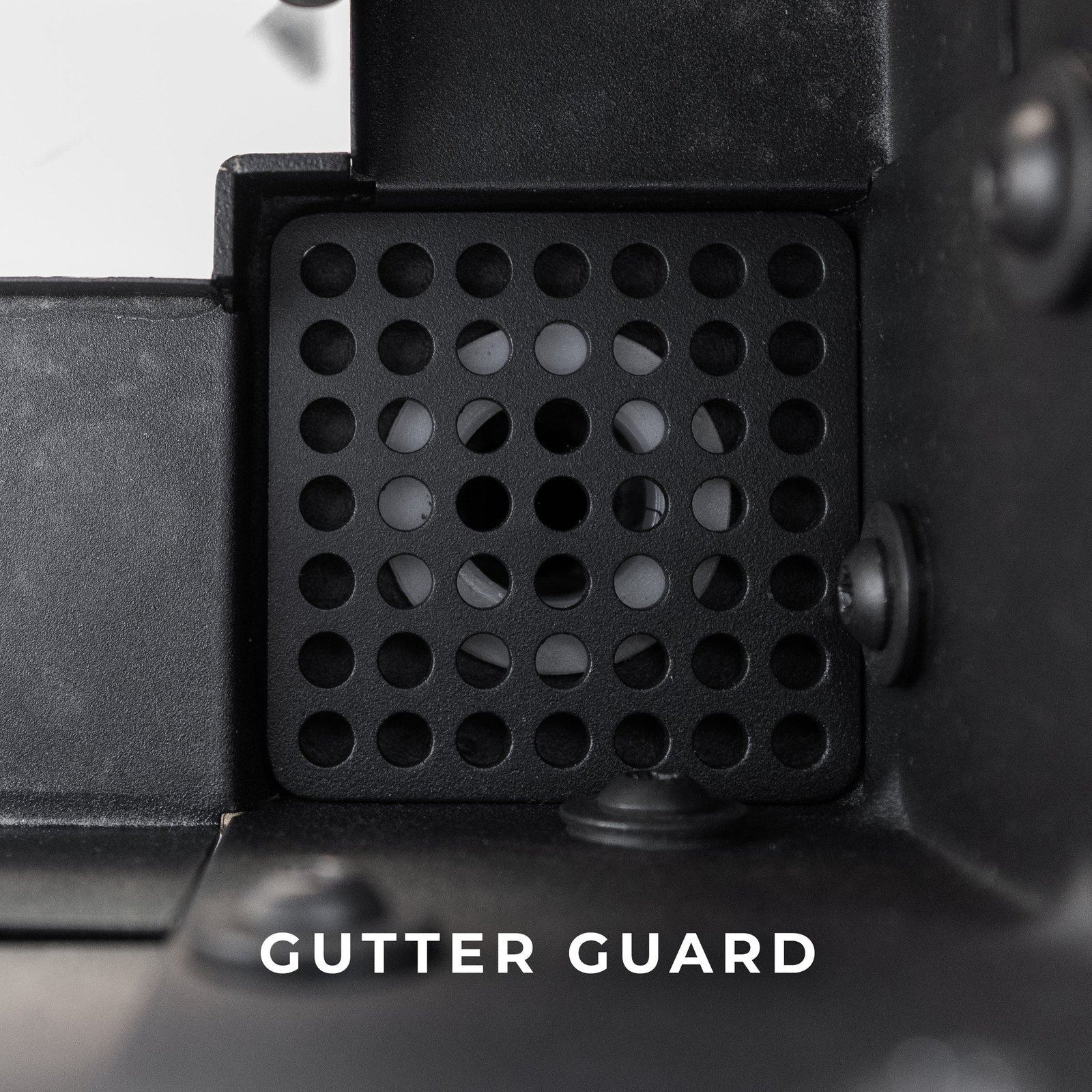

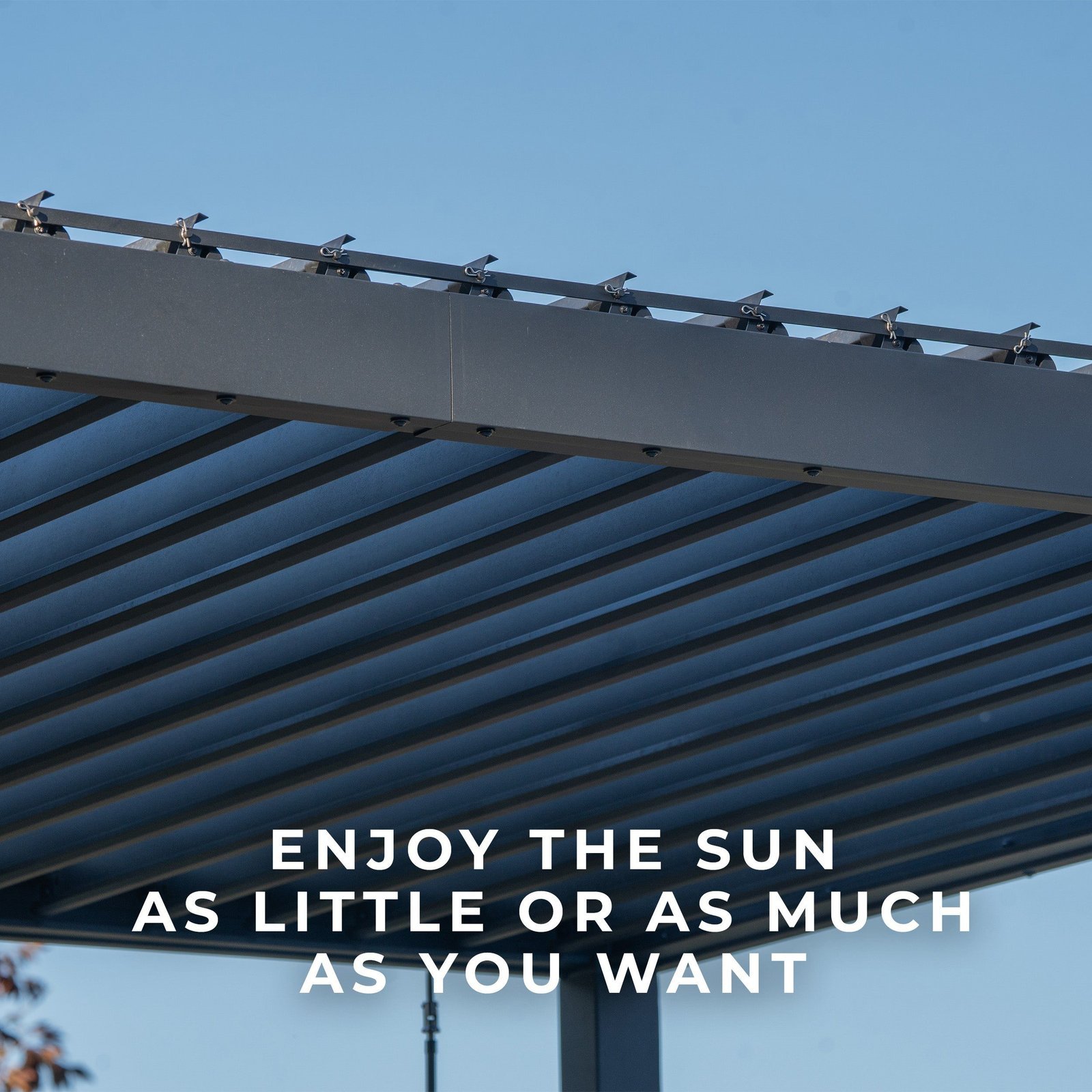

The louvers open for direct sunlight and airflow and close for stronger shade and rain protection. When closed, built-in gutters collect water and direct it through integrated downspouts in the posts, while gutter guards help reduce debris entering the drainage system.
Steel Construction & Weather Performance
The frame is manufactured from powder-coated galvanized steel for strength and improved corrosion resistance. Backyard Discovery’s Pro-Tect™ testing rates this model for winds up to 100 mph and a snow load up to 3,100 pounds when properly assembled and anchored according to the manufacturer instructions.

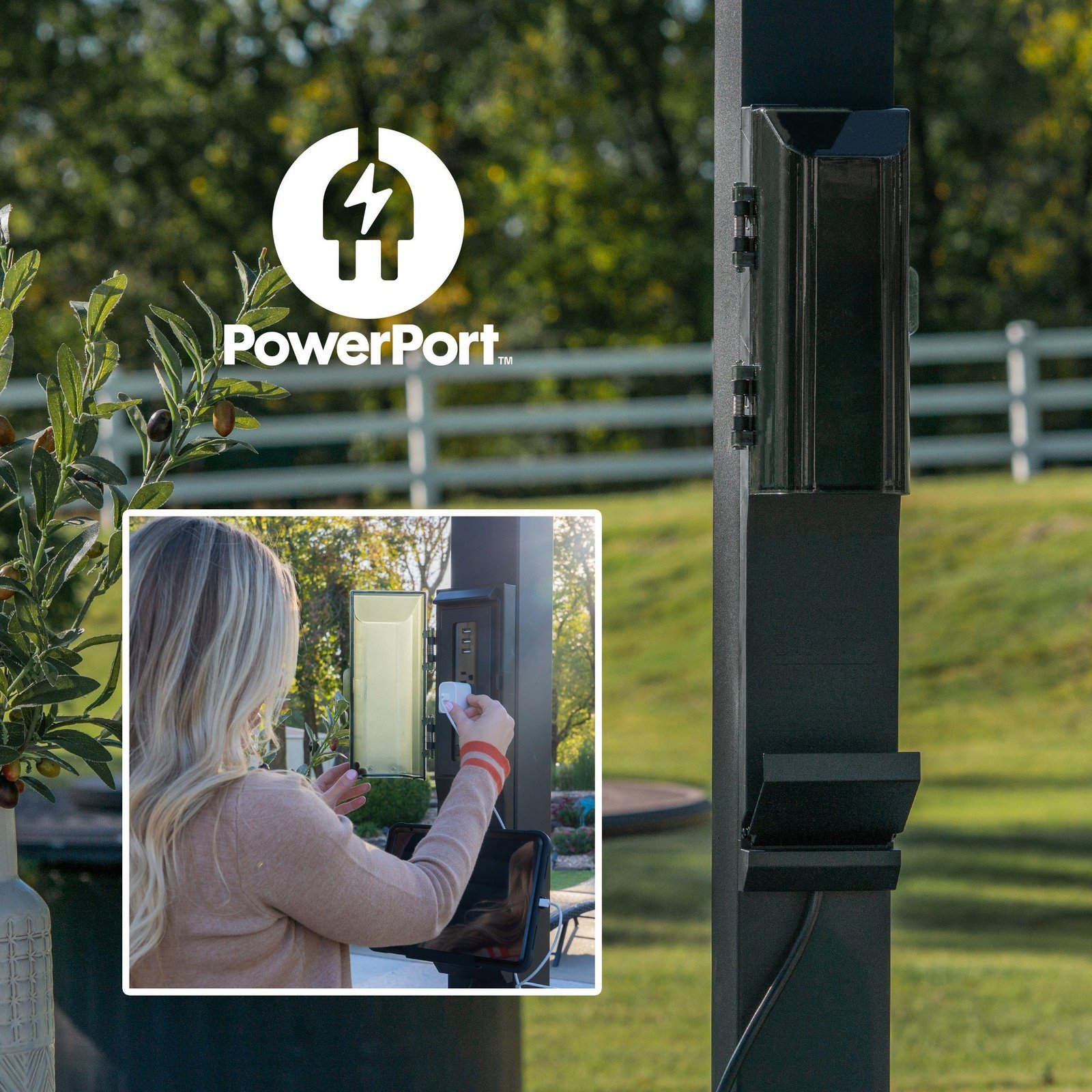

Heavy-duty anchoring plates help secure the freestanding structure. The included PowerPort™ provides three electrical outlets and three USB ports for compatible outdoor lighting, speakers, charging, and other accessories. An external power source is required and is not included.
Assembly & Site Planning
Components arrive pre-fabricated and pre-drilled, with BILT® guided assembly support. Install the pergola on a suitable level surface and confirm anchoring, drainage clearances, local building requirements, permits, and HOA rules before assembly.
Brand & Seller Information
Brand/Manufacturer: Backyard Discovery.
Manufacturer model/item: 2305113B
Sold by: True Yard Buildings LLC, an independent retailer/seller.
Published wind, snow, and drainage performance depends on correct assembly and anchoring. Review the current Backyard Discovery manual before installation.
Quick Specifications
| Product | Sarasota 16 ft. x 10 ft. Steel Louvered Patio Pergola |
|---|---|
| Brand / Manufacturer | Backyard Discovery |
| Manufacturer model / item | 2305113B |
| True Yard Buildings SKU | TYB-PRG-SARASOTA-16-X-10 |
| Overall dimensions | 117.38 L × 194.38 W × 99.5 H in. |
| Listed weight | 692.68 lb. |
| Product category | Outdoor Pergolas |
| Delivery | Curbside freight delivery; review the current shipping and freight policies |
| Seller | True Yard Buildings LLC, an independent retailer/seller |
Overall dimensions are not the same as usable space, post spacing, foundation dimensions, or required safety clearance. Confirm every measurement in the current manual for this exact model before preparing the site.
Before Delivery & Installation
- Measure the complete footprint: Mark the overall size, post locations, roof overhang, moving roof parts, furniture area, and maintenance access.
- Confirm the foundation and anchors: Use only a level, stable foundation and anchor system permitted by the current manufacturer instructions and local requirements.
- Check delivery access: Measure gates, driveways, turns, overhead clearance, and the safe location where packaged components will be unloaded and stored.
- Review local requirements: Ask the local building department and HOA about permits, setbacks, utilities, inspections, and site-specific requirements.
Use our site preparation and delivery guide before scheduling delivery. Review the anchoring, wind, and snow load guide for weather-performance planning.
Frequently Asked Questions
Are the listed dimensions the usable space between the posts?

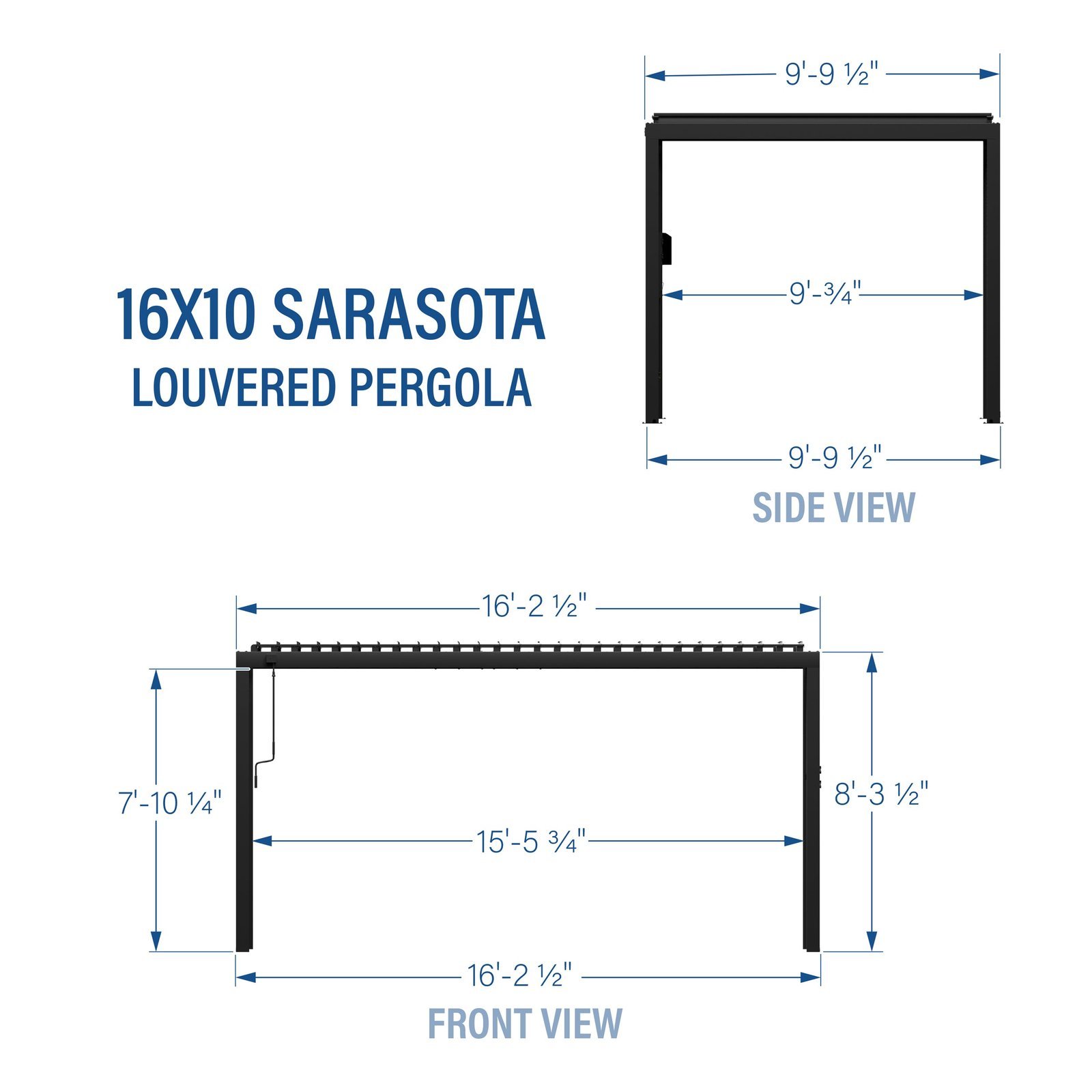

Not necessarily. Post spacing, roof overhang, foundation points, and usable interior area can differ from the overall dimensions. Verify the dimension diagram and manual for this exact model.
Does this structure need to be anchored?
Yes. It must be assembled and anchored according to the exact model instructions. Any published performance rating depends on correct installation and the required foundation and anchors.
Can it be installed on an existing patio or deck?
Only if that surface and its supporting structure are suitable for the loads and approved anchoring method. Concrete thickness, reinforcement, edge distance, deck framing, condition, and local code may matter.
Where can I compare planning considerations?
Start with the Outdoor Structure Planning Center, then follow the current manual for this exact product.
Documents & Assembly
Sarasota 16 × 10 Louvered Pergola · Model 2305113B
Specification
Overview
| Weight | 692.68 lbs |
|---|---|
| Dimensions | 117.38 × 194.38 × 99.5 in |
| Brand | Backyard Discovery |
| Model Number | 2305113B |
| Assembled Dimensions | 194.38 W × 117.38 D × 99.5 H in |
| Product Weight | 692.68 lbs |
| Material | Powder-Coated Galvanized Steel |
| Roof Type | Adjustable Louvered Roof |
| Wind Rating | Up to 100 mph when anchored as directed |
| Snow Load | Up to 3,100 lbs / 12 in. of snow |
| Drainage | Integrated gutters and downspouts with gutter guards |
| PowerPort | 3 electrical outlets + 3 USB ports; power source not included |
| Anchoring | Heavy-duty galvanized-steel anchoring plates |
| Manufacturer Warranty | 5-Year Limited Warranty |
| Assembly | Pre-fabricated and pre-drilled; BILT® guided assembly |
| Coverage Area | Approx. 160 sq. ft. |
| Installation Type | Freestanding |
| Roof Operation | Manual wand-operated louvers |
| Color / Finish | Black powder-coated finish |
